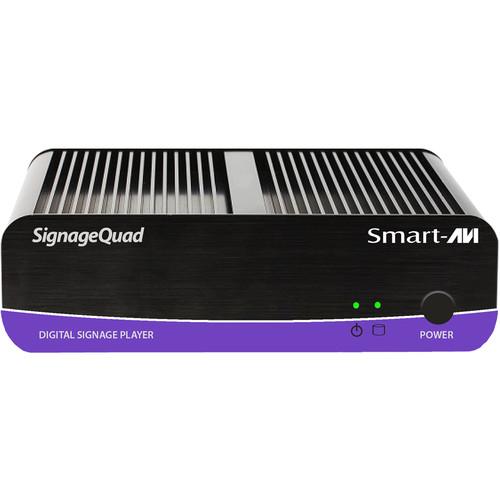

User Manual for Smart-AVI 4-Port SignageQuad 2RU Digital Signage Player Click to enlarge the picture
Contents of the user manual for the Smart-AVI 4-Port SignageQuad 2RU Digital Signage
- Product category: Digital Signage Players Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Digital Signage Players
 |
User manual for the Smart-AVI 4-Port SignageQuad 2RU Digital Signage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The 4-Port SignageQuad 2RU Digital Signage Player from Smart-AVI is a simple solution to extend your content up to 4 screens and create an attractive and striking visual message. The SignageQuad is ideal to display information in applications such as airports, train or metro stations, malls and food courts, casinos, retail stores, schools, colleges, and universities, and more. The unit comes as a set with all cables/power supplies and units needed to run the system. - Run 1080p HDTV resolution video or looping slideshows
- Fully customizable display templates
- Applications include airports, train or metro stations, malls and food courts, casinos, retail stores, schools, colleges, car dealerships, corporate lobbies, restaurants, houses of worship, supermarkets
In the Box Smart-AVI 4-Port SignageQuad 2RU Digital Signage Player Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port SignageQuad 2RU Digital Signage Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SAVI-SSQ100S Specs | | | Image | JPEG, GIF, Animated GIF | | Video | AVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, MP@L3.0 | | Audio | MPEG-1 Layer I, II, MPEG-4 AAC | | Other | Excel, PowerPoint, PDF, HTML, Flash, QuickTime, RSS | | CPU | AMD Embedded eTrinity R-series APU | | Core | 4 cores, 2.3 GHz | | BIOS | UEFI supports Win 8 fast boot | | | | Technology | Dual Channel DDR3 1600 MHz SDRAM | | Socket | 2 x SO-DIMM, Max 8 GB | | Graphics | Integrated VGA: AMD Radeon GPUs (Radeon HD 7660G series), support DX11, UVD3
HW Decoder: H.264, VC-1, MPEG-2, DivX
HDMI: Supports up to 1920 x 1200 | | | | Interface | 10/100/1000 Mb/s | | Controller | Realtek RTL8111E | | Connector | 2 x RJ-45 connector | | | | Connectors | Onboard Connectors: 1 x Mini-PCIe,2 x SO DIMM, 1 x mSATA
Onboard Headers: 1 x USB 2.0, GPIO (1 [2x3 pins]), 1 x Front Panel Header, 1 x SATA connector
Front I/O: Serial port 2 x D-sub 9 pins, Power on button x1
Rear I/O: 2 x USB 3.0, 2 x USB 2.0, Audio Jack (1 line out Mic 1), 2 x RJ-45 Gigabit LAN, 4 x HDMI output, 1 x Power in Jack | | Input Power | 65 W, 12 V, 5.4 A | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 176°F (-20 to 80°C) | | Dimensions (W x H x D) | 17 x 3.5 x 15" (431.8 x 88.9 x 381 mm) |
