User Manual for Smart-AVI 8-Port HDMI Rackmount Extender Click to enlarge the picture
Contents of the user manual for the Smart-AVI 8-Port HDMI Rackmount Extender
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
 |
User manual for the Smart-AVI 8-Port HDMI Rackmount Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

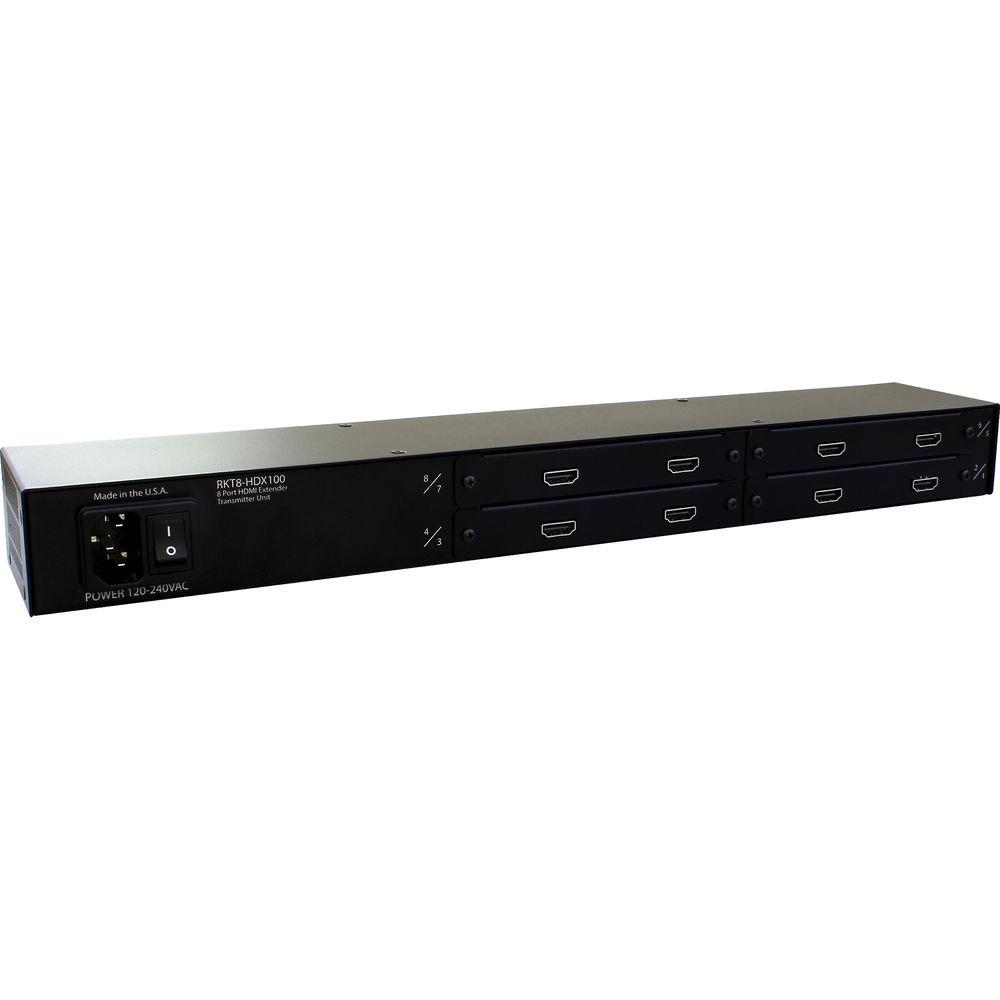

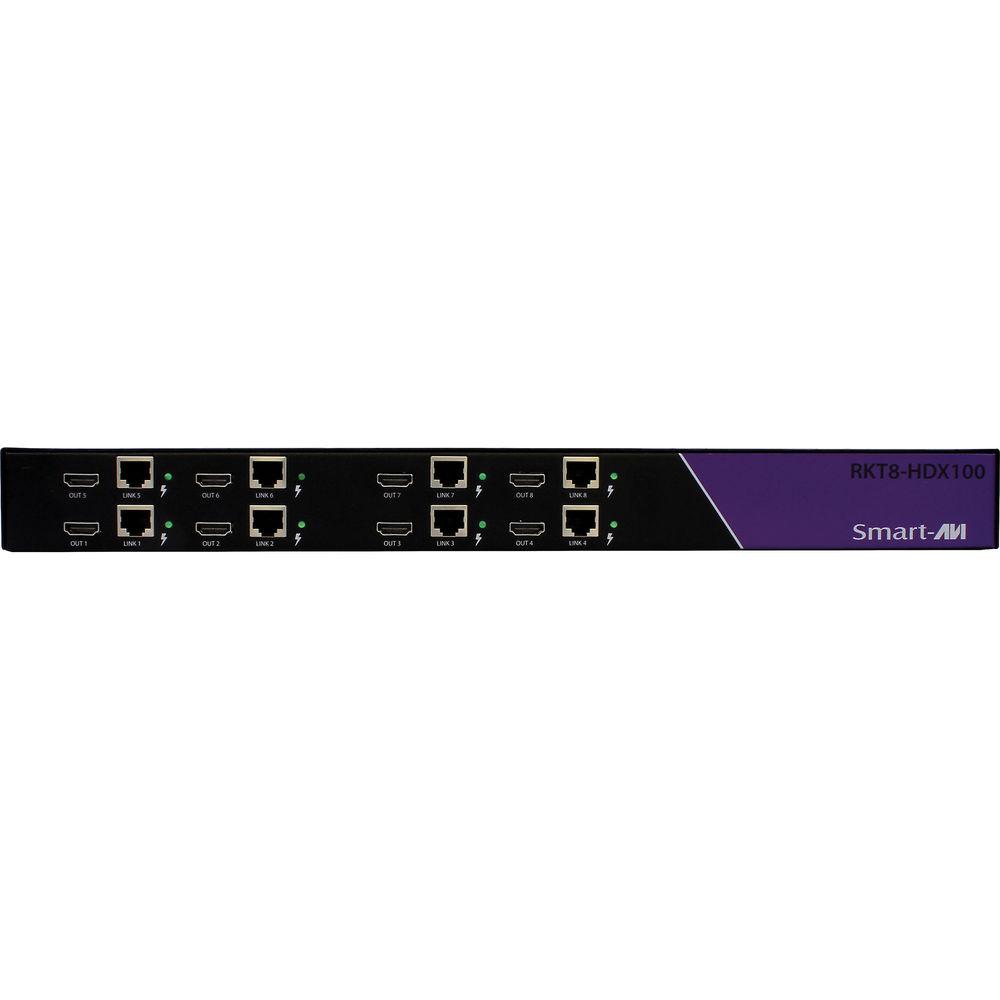

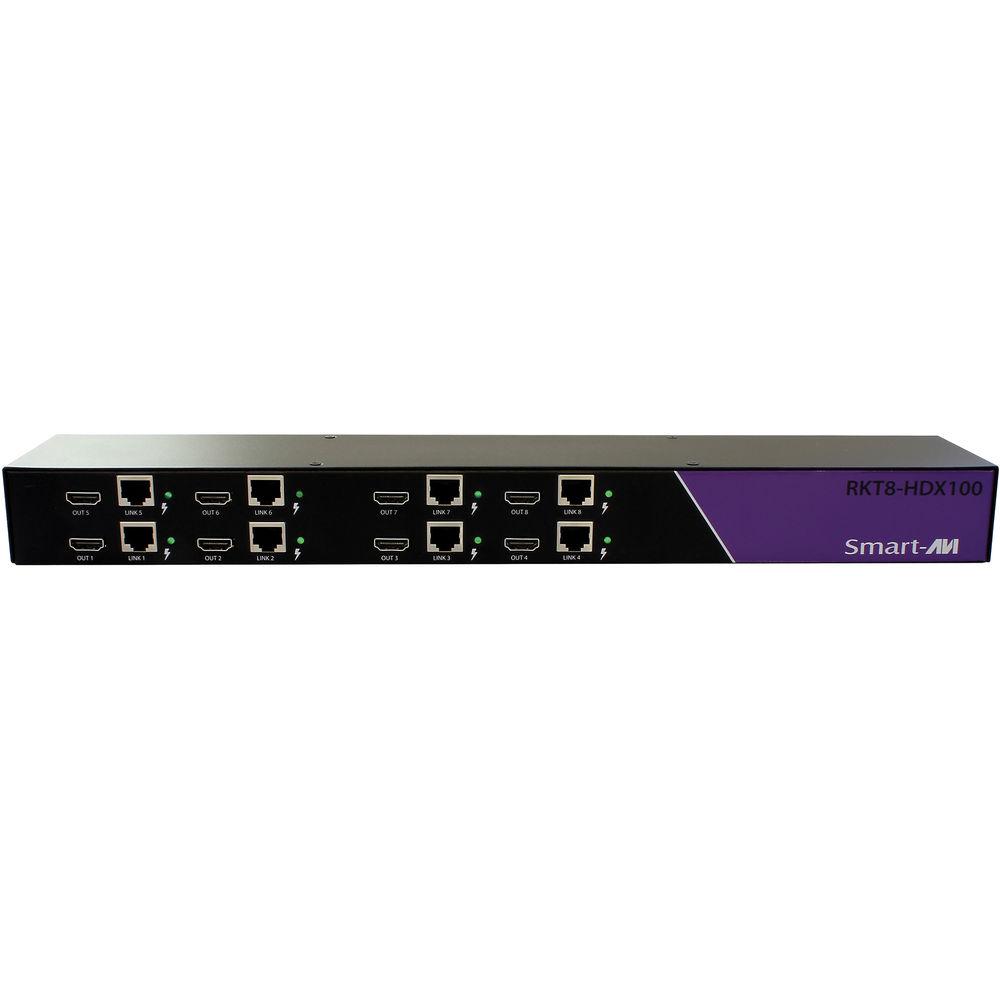

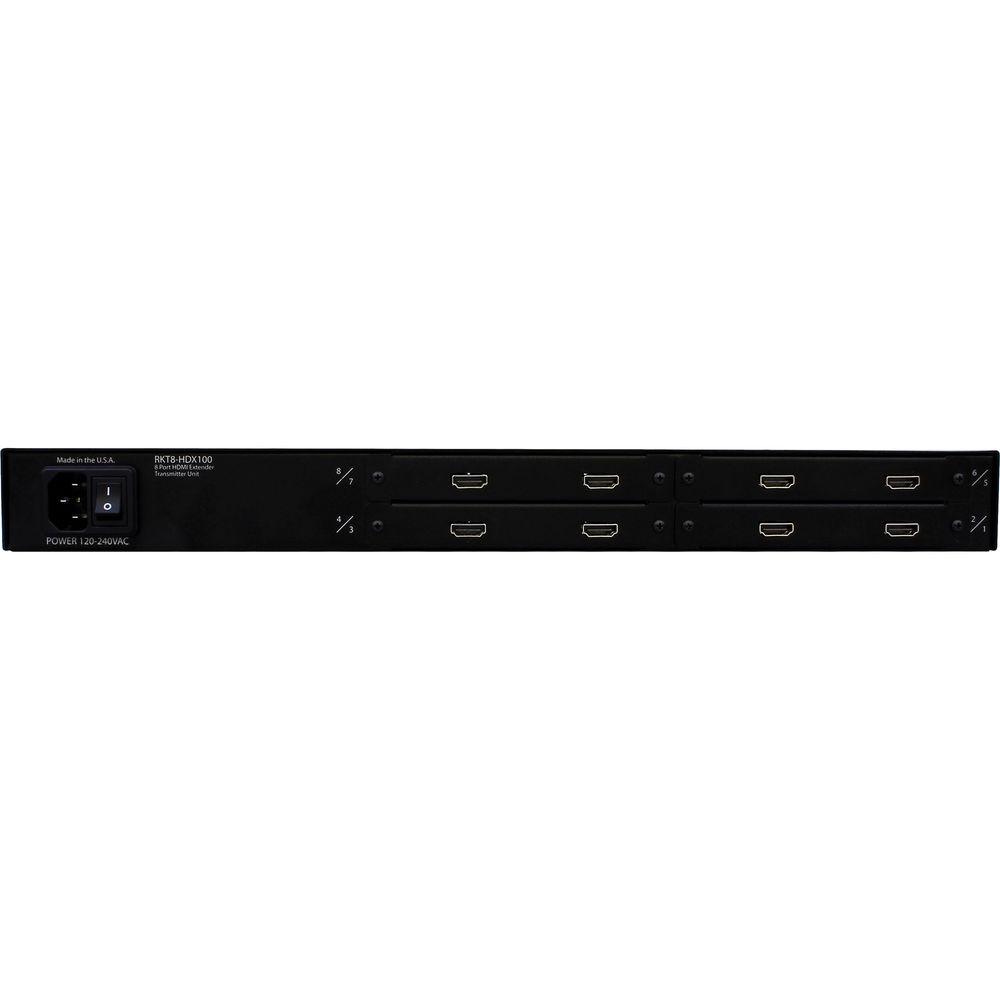

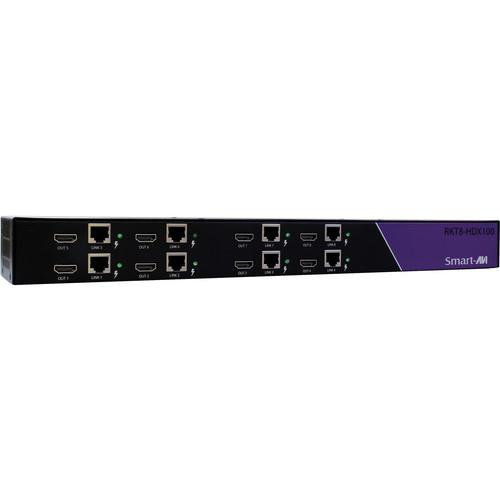

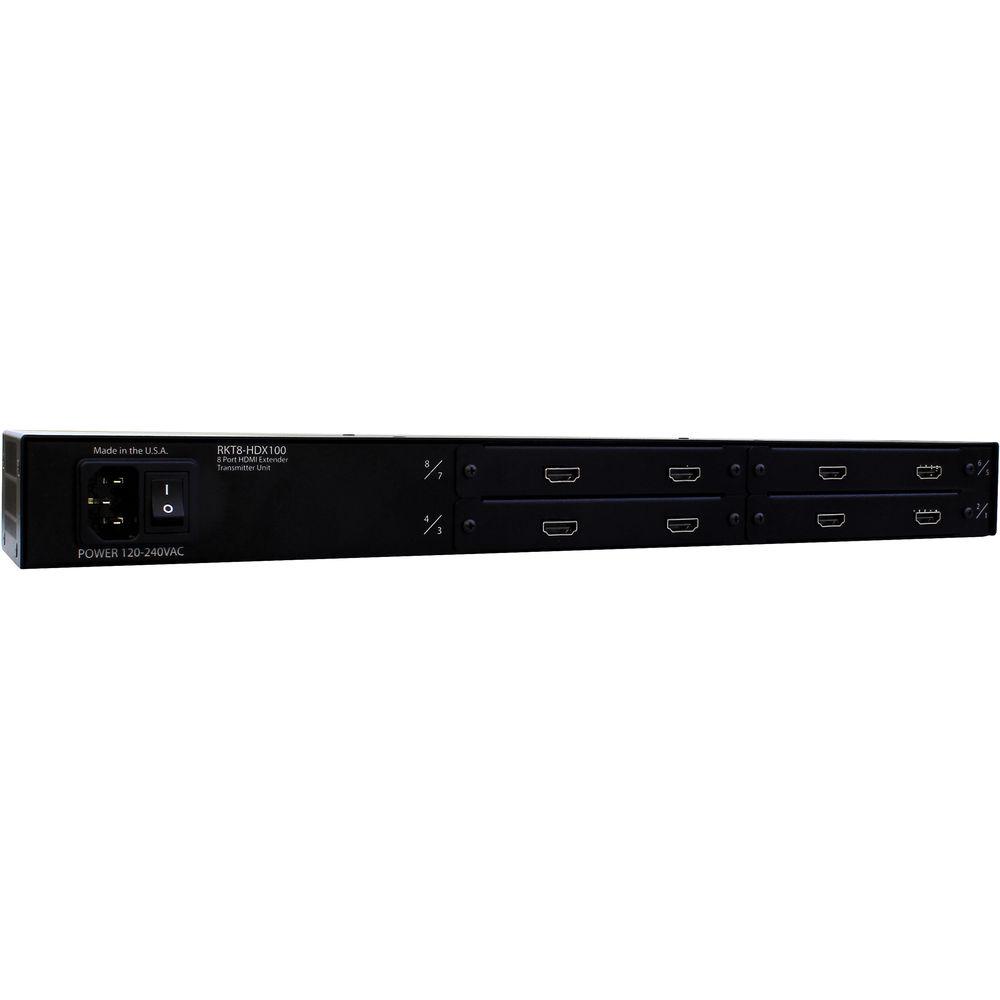

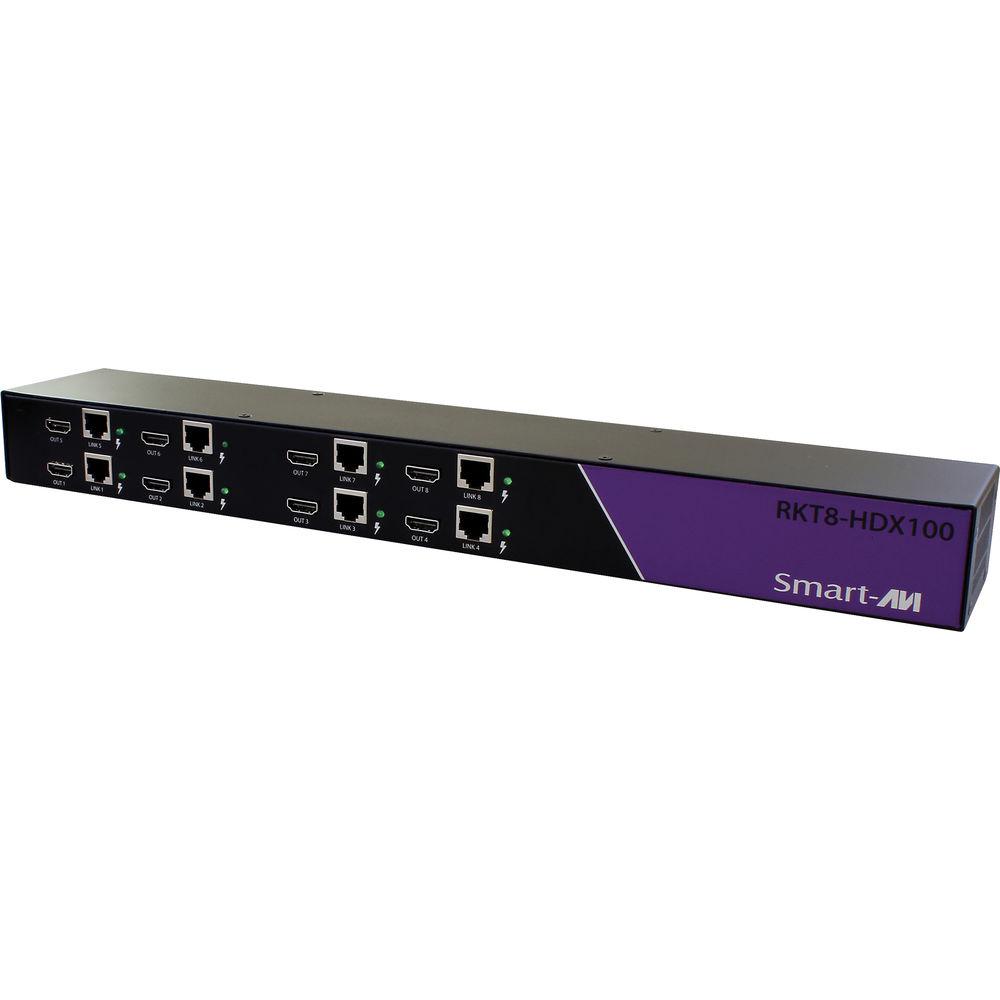

Product description The Smart-AVI RKT8-HDX100 is a 1RU rackmount extender featuring 8 HDMI inputs, 8 RJ45 outputs, and 8 HDMI local outputs. Distribute your HDMI sources up to 150 ft over single CAT5e/6 cables while monitoring them locally. Consolidate up to 8 workstation computers in one secure location. Safely use the RKT8-HDX100 for digital signage and in industrial/medical environments. - Key Features
-
- 1RU rack-mountable HDMI Extender
- 8 HDMI inputs
- 8 RJ45 outputs, 8 HDMI local outputs
- Resolutions up to 1920 x 1200@60Hz, including 1080p
- Up to 150 ft extension over CAT5e/CAT6 STP
- Zero pixel loss with TMDS signal correction
- DDC from internal table
- Compatible with Mac, PC, and Linux
- HDMI 1.3 standard
- HDCP compliant
- Data recovery for digital video
- Plug-and-play ready
In the Box Smart-AVI 8-Port HDMI Rackmount Extender Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 8-Port HDMI Rackmount Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI RKT8-HDX100S Specs | Resolution | 1920 x 1200@60 Hz, 1080p, 1080i, 480p, 720p, 720i | | Input | 8x HDMI type A female | | Output | 8x RJ45
8x HDMI type A female local outputs | | Transmission Distance | 150 ft (46 m) | | Maximum Pixel Clock | 165 MHz | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Power | 110-240 VAC | | Supported HDMI Cable Length | Up to 20 ft (6 m) (on input and output) | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions | 17 x 1.6 x 3.25" (43.2 x 4 x 8.3 cm) | | Weight | 5 lb (2.3 kg) |
