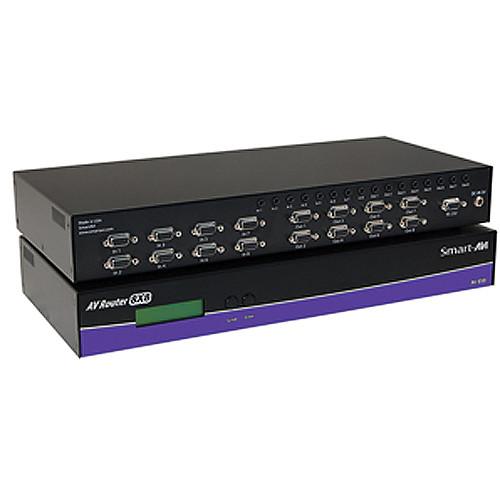

Product description The Smart AVI AV08X08S is an 8x8 router/switcher for studio and presentation applications. This switcher features eight video inputs and outputs on HD-15 connectors for display switching functionality. - Applications
- This switcher is meant mainly for presentation applications for wall displays, airports, casinos and security purposes in hotels and shopping centers.
- Remote Control and Connectivity
- Each switcher can be controlled via a RS-422 port connecting via an RJ-45 on the front of the main chassis. Two connectors are provided for expansion, allowing a simple Cat5 patch cable to link to additional units. An adjustable rotary switch allows each to unit be assigned a unique ID, read when the unit is first powered up. An optional Windows application (SmartNetControl ) is available including a RS-232 to RS-422 converter.
- High Bandwidth
- The routers contain a very high bandwidth routing matrix for the red, green and blue video channels and separate switching layers. The color signals are then balanced internally for a clean output.
In the Box Smart-AVI AV08X08S 8x8 UXGA Video Router Power Cord RS-232 to RS-422 Adapter RS-422 to RJ-45 Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI AV08X08S 8x8 UXGA Video Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AV08X08S Specs | Input | High Resolution Video x8, @ 75 ohms, on HD-15 connectors
RS-232/422, on an RJ-45 connector | | Output | High Resolution Video x8, @ 75 ohms, on HD-15 connectors | | Switch Type | Remote via RS-232/422 and IR
Matrix Sitching | | Video Bandwidth | 400 MHz | | Differential Gain | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Audio Bandwidth | N/A | | Signal to Noise Ratio | N/A | | Audio THD | N/A | | Control | Remote via RS-232/422
Rotary Switcher | | Power Source | 90 to 230VAC 50/60Hz
Auto Sensing | | Dimensions (WxDxH) | 19 x 11.25 x 5.25"
48.26 x 28.5 x 13.33cm | | Weight | 20 lbs
9kg |
