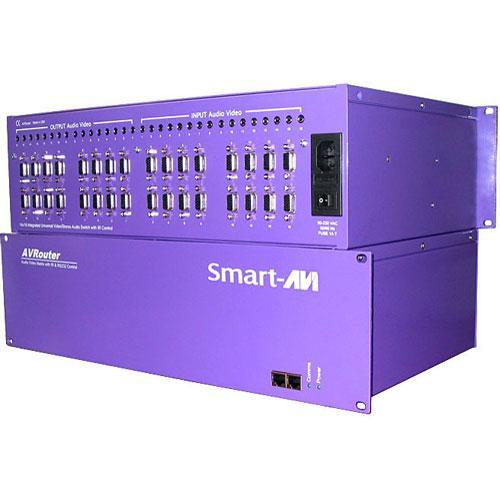

User Manual for Smart-AVI AV16X16AS 16x16 UXGA and Stereo Router Click to enlarge the picture
Contents of the user manual for the Smart-AVI AV16X16AS 16x16 UXGA and Stereo
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI AV16X16AS 16x16 UXGA and Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart AVI AAV16X16AS is a 16x16 router/switcher for studio and presentation applications. This switcher features 16 video inputs and outputs on HD-15 connectors with corresponding stereo audio on mini-plug connectors. - Applications
- This switcher is meant mainly for presentation applications for wall displays, airports, casinos and security purposes in hotels and shopping centers.
- Remote Control and Connectivity
- Each switcher can be controlled via a RS-422 port connecting via an RJ-45 on the front of the main chassis. Two connectors are provided for expansion, allowing a simple Cat5 patch cable to link to additional units. An adjustable rotary switch allows each to unit be assigned a unique ID, read when the unit is first powered up. An optional Windows application (SmartNetControl ) is available including a RS-232 to RS-422 converter.
- High Bandwidth
- The routers contain a very high bandwidth routing matrix for the red, green and blue video channels and separate switching layers for stereo audio. The color signals and are then balanced internally and combined with the audio signals. This combined signal is then driven out through output connectors in the rear panel.
In the Box Smart-AVI AV16X16AS 16x16 UXGA and Stereo Router Power Cord RS-232 to RS-422 Adapter RS-422 to RJ-45 Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI AV16X16AS 16x16 UXGA and Stereo Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AV16X16AS Specs | Input | High Resolution Video x16, @ 75 ohms, on HD-15 connectors
Stereo Audio x16, mini-plug connectors
RS-232/422, on an RJ-45 connector | | Output | High Resolution Video x16, @ 75 ohms, on HD-15 connectors
Stereo Audio x16, mini-plug connectors | | Switch Type | Remote via RS-232/422 and IR
Matrix Sitching | | Video Bandwidth | 400 MHz | | Differential Gain | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Audio Bandwidth | Not Specified by Manufacturer | | Signal to Noise Ratio | Not Specified by Manufacturer | | Audio THD | Not Specified by Manufacturer | | Control | Remote via RS-232/422
Rotary Switcher | | Power Source | 90 to 230VAC 50/60Hz
Auto Sensing | | Dimensions (WxDxH) | 19 x 11.25 x 5.25"
48.26 x 28.5 x 13.33cm | | Weight | 20 lbs
9kg | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 24.0 x 16.0 x 12.0" |
