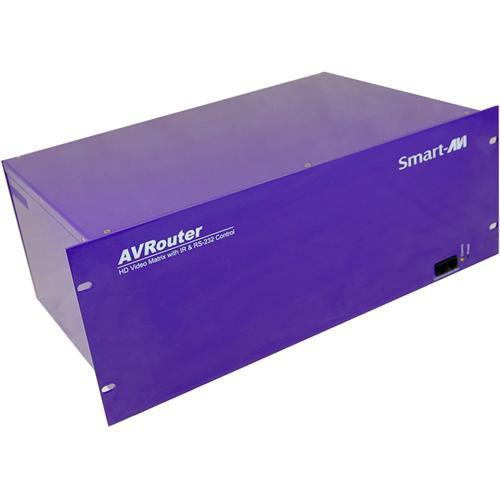

Product description The Smart AVI AV32X16S is an 32x16 router/switcher for studio and presentation applications. This switcher features 32 video inputs and 16 outputs on HD-15 connectors for display switching functionality. - Outstanding Features
-
- RS-232 Windows GUI control
- Very high quality Video switching
- High bandwidth 400MHz
- High resolution up to 1900 x 1200
- Infrared and RS-232 control
- PC Windows software control
- Output cable drives cable up to 100'
- TCP/IP and Telent control
- Can be mixed with other video signal (RGB, YUV, RGBS)
- HD Compatible (480p, 720p, 1080i, 1080p)
- Applications
-
- Wall displays
- Visual Presentation
- Digital media
- Shopping centers
- Airports
- Security
- Security
- Control rooms
- Hotels
In the Box Smart-AVI AV32X16S AVRouter32 High Resolution Switcher Switcher Power Cord RS-232 to RS-422 Adapter RS-422 to RJ-45 Adapter 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI AV32X16S AVRouter32 High Resolution Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AV32X16S Specs | Input | High Resolution Video x32, @ 75 ohms, on HD-15 connectors
RS-232/422, on an RJ-45 connector | | Output | High Resolution Video x16, @ 75 ohms, on HD-15 connectors | | Switch Type | Remote via RS-232/422 and IR
Matrix Sitching | | Video Bandwidth | 400 MHz | | Differential Gain | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Audio Bandwidth | N/A | | Signal to Noise Ratio | N/A | | Audio THD | N/A | | Control | Remote via RS-232/422
Rotary Switcher | | Power Source | 90 to 230VAC 50/60Hz
Auto Sensing | | Dimensions (WxDxH) | 19 x 11.25 x 5.25"
48.26 x 28.5 x 13.33cm | | Weight | 20 lbs
9kg |
