User Manual for Smart-AVI AVRouter Click to enlarge the picture
Contents of the user manual for the Smart-AVI AVRouter
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI AVRouter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

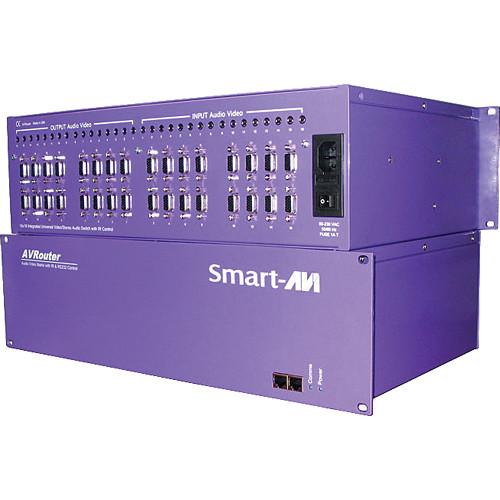

Product description The Smart-AVI AVRouter (64 x 16) is a high-quality switcher that routes 64 audio/video signals to 16 monitors up to 100' away. These signals include formats such as VGA, SVGA, XGA, and UXGA signals. Equipped with a high-bandwidth (400 MHz), the unit provides separate switching layers for video and audio channels. These signals are mixed together and boosted before being transferred to the display. It is ideal for places such as airports, shopping centers, and control rooms. You can control the AVRouter (64 x 16) with the help of a RS-422 port connecting to the front panel of the main chassis via a RJ-45 cable. Additionally, you can also control it via a PC or a receiver positioned at a remote location. With an adjustable rotary switch, you can assign a unique ID that is readable when the unit is booted. The 2 connectors and CAT5 cabling allow additional units to be conjugated to the system. Equipped with output driver, the AVRouter (64 x 16) allows the audio to be connected to any amplifier input at line level. These audio signals follow any source device that is selected. - High-quality switcher that routes 64 audio-video signals to 16 monitors up to 100' away
- Signals include formats such as VGA, SVGA, XGA, and UXGA signals
- Provides separate switching layers for video and audio channels
- Signals are mixed together and boosted before being transferred to the display
- Ideal for places such as airports, shopping centers, and control rooms
- Can be controlled with the help of a RS-422 port connecting to the front panel of the main chassis via a RJ-45 cable, or via a PC or a receiver positioned at a remote location
- A unique ID, that is readable when the unit is booted, can be assigned via an adjustable rotary switch
- 2 connectors and CAT5 cabling allow additional units to be conjugated to the system
- Output driver allows the audio to be connected to any amplifier input at line level
- Audio signals follow any source device that is selected
In the Box Smart-AVI AVRouter (64 x 16) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI AVRouter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AV64X16S Specs | Range | 100' (30.5m) | | Video Bandwidth | 400MHz | | Video Signal | Input Signal Level: 1Volt pk-pk into 75R | | Video Impedance | Output Impedance: 100 Ohms
Input Impedance: 75R Ohms | | Video Connector | In: HD15 Female
Out: HD15 Female | | Video Format | VGA/SVGA/XGA/RGBHV/RGsB/CVBS/YC/YUV/RGBS | | Video Sync | TTL5VDC | | Bandwidth | Horizontal Sync up to 85KHz | | Audio Signal | 15KHz 0dB unbalanced 100 Ohms impedance | | Audio Connector | In: 3.5m Stereo Jack
Out: 3.5m Stereo Jack | | Control | IR: Individual Control
RS422: Dual RJ45 Sockets | | Power | 110 to 220VAC | | Dimensions (HxWxD) | 5.3 x 19 x 11.3" (135 x 483 287mm) - 3RU | | Weight | 20 lbs (9.1kg) |
