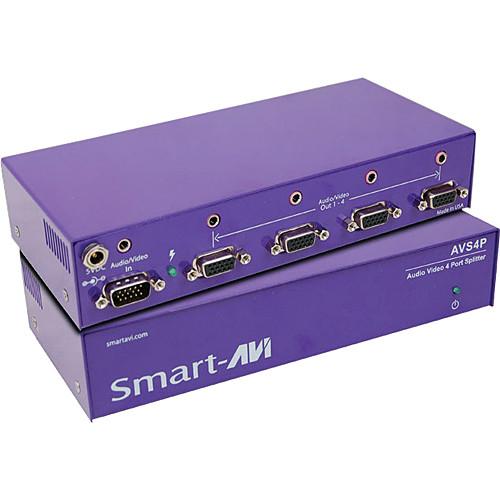

User Manual for Smart-AVI AVS4PS 4-port Splitter Click to enlarge the picture
Contents of the user manual for the Smart-AVI AVS4PS 4-port Splitter
- Product category: Distribution Amplifiers (DA's) Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Distribution Amplifiers (DA's)
|
User manual for the Smart-AVI AVS4PS 4-port Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI AVS4PS 4-port Splitter distributes signal from 1 source to up to 4 audio / video devices that are up to 100' away. The unit is capable of daisy chaining, and is compatible with VGA, XGA, Sun, MAC, SGI, and line level stereo audio signals. It supports resolutions up to 1900 x 1200, and is ideal for corporate presentations and news broadcasting. In addition to sync format / polarity preservation features, the AVS4PS 4-port Splitter possesses high-ground loop immunity that ensures error-free transfer of signals between input and output. The splitter comes with a built-in lightning, power surge, and transient protection to protect the equipment from high-voltage. The unit is housed in a metal case to protect it from harsh environments. - Distributes signal from 1 source to up to 4 audio / video devices that are up to 100' away
- Compatible with VGA, XGA, Sun, MAC, SGI, and line level stereo audio signals
- Supports resolutions up to 1900 x 1200
- Ideal for corporate presentations and news broadcasting
- Sync format / polarity preservation
- High-ground loop immunity ensures error-free transfer of signals between input and output
- Trimmer in the remote unit compensates for cable length
- Comes with a built-in lightning, power surge, and transient protection to protect the equipment from high-voltage
- Housed in a metal case to protect it from harsh environments
UPC: 813280020794 In the Box Smart-AVI AVS4PS 4-port Splitter Power Supply (PS5VD1E) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI AVS4PS 4-port Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AVS4PS Specs | Video Bandwidth | 400 MHz | | Signal Level | Analog signal level: 1 Volt | | Video Impedance | 75 ohms | | Video Connector | High density HD15 | | Video Format | VGA/SVGA/XGA/UXGA/RGBHV/RGsB | | Sync | TTL horizontal SyncRange: 15 to 130 | | Video Input Connector | 1x HD15 male | | Video Input Connectors | 4x HD15 female | | Audio Bandwidth | 20KHz | | Audio Level | 0dB | | Audio Impedance | 10K ohms | | Audio Connector | 3.5mm jack socket | | Power | 5VDC | | Current | 1000mA | | Output Range | 75' (23m) | | Enclosure | Black, metal | | Dimensions (LxWxH) | 7.4 x 3.6 x 1.6" (202 x 91 x 40mm) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.8 x 5.5 x 4.3" |
