User Manual for Smart-AVI Component to VGA Converter Click to enlarge the picture
Contents of the user manual for the Smart-AVI Component to VGA Converter
- Product category: Signal Converters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Signal Converters
 |
User manual for the Smart-AVI Component to VGA Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

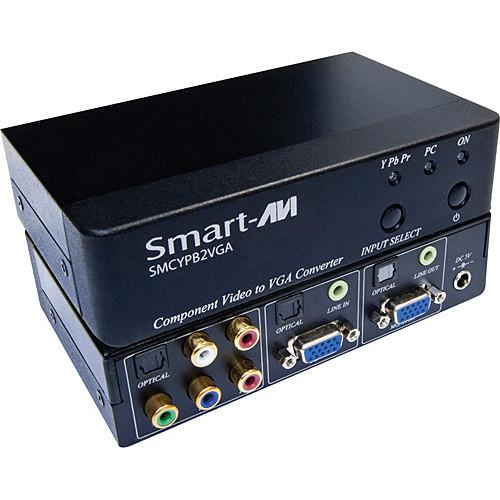

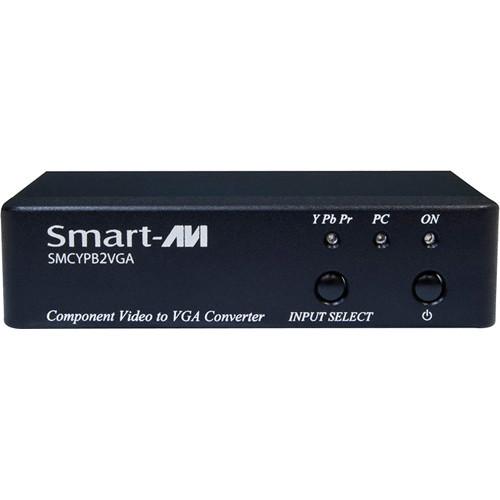

Product description The Smart-AVI Component to VGA Converter automatically detects the YPbPr video input and converts it to VGA signals. It features 2 ports that allow output of a computer and a component video device such as a DVD player to be shared by 1 LCD monitor. The converter provides support to SDTV, HDTV, XGA, SXGA, and UXGA video formats upto 1900 x 1200 and up to 1600 x 1200 at 75Hz for RGBHV input. It uses a bandwidth of 70MHz for component video and up to 400MHz for RGBHV signals to transfer data. The Component to VGA Converter has a component video (YPbPr), D-SUB HD, RCA stereo audio, 3.5mm stereo phone jack, and 2 digital audio (coaxial) inputs. The output is given through a D-SUB HD, 3.5mm stereo phone jack, and a digital audio (optical) connector. - Automatically detects the YPbPr video input and converts it to VGA
- Features 2 ports that allow output of a computer and a component video device such as a DVD player to be shared by 1 LCD monitor
- Supports video resolutions for SDTV, HDTV, XGA, SXGA, and UXGA video formats upto 1900x1200 and upto 1600 x 1200 at 75Hz for RGBHV input
- Supports high definition video inputs 480i, 480P, 576i, 576p, 720P, 1080i, and 1080p at 24/25/30Hz
- Transfers data using a bandwidth of 70MHz for component video and up to 400MHz for RGBHV signals

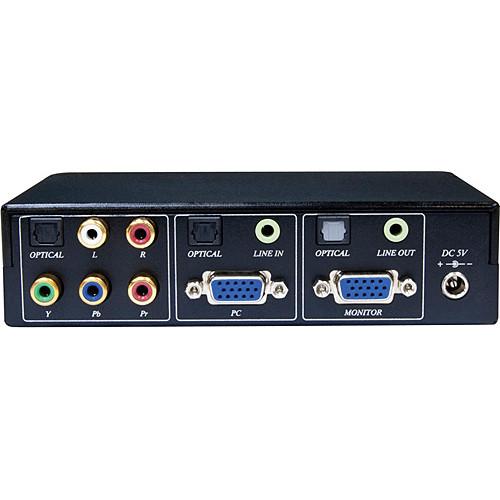

- Inputs - component video (YPbPr), D-SUB HD, RCA stereo audio, 3.5mm stereo phone jack, and 2 digital audio (coaxial)
- Outputs - D-SUB HD, 3.5mm stereo phone jack, and a digital audio (optical) connector
- For components ranging from LCD monitors, set-top boxes, projectors, etc.
In the Box Smart-AVI Component to VGA Converter PS5VD2A 5V 2A Power Supply zeeceeuqcezeqfutwyaqtubqbaudecvzwvtf Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Component to VGA Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SMCYPB2VGAS Specs | VGA | Format: VGA RGB analog (75Ω, 0.7Vp-p)
Resolution: Up to UXGA (1600x1200)
Input Interface: 1x HD-15 female
Output Interface: 1x HD-15 female
Sync: H/V separated (TTL) | | Component Video | Format: (RCA) Y (75Ω, 1.0Vp-p), PbPr (75Ω, 0.7Vp-p)
Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (24/25/30Hz) | | Audio | Analog Input: RCA R/L x1 (10KΩ), 3.5mm x1 (10KΩ)
Analog Output: 3.5mm x1 (10KΩ)
Digital Input: Optical x2
Digital Output: Optical x1 | | Power | 5 VDC, 2A at 10W | | Dimensions (WxHxD) | 5.5 x 1.8 x 3.5" (140 x 46 x 89mm) | | Weight | 0.6 lbs (0.3kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.7 x 6.5 x 4.6" |
