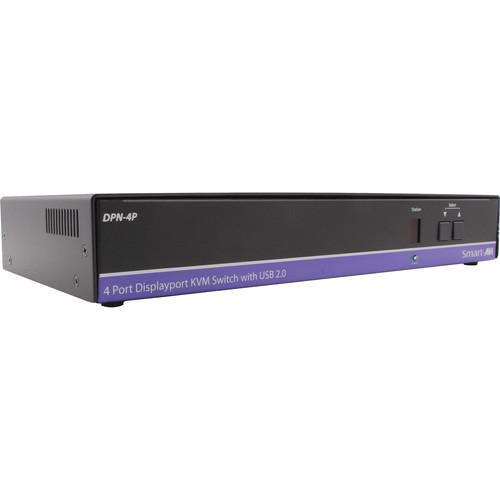

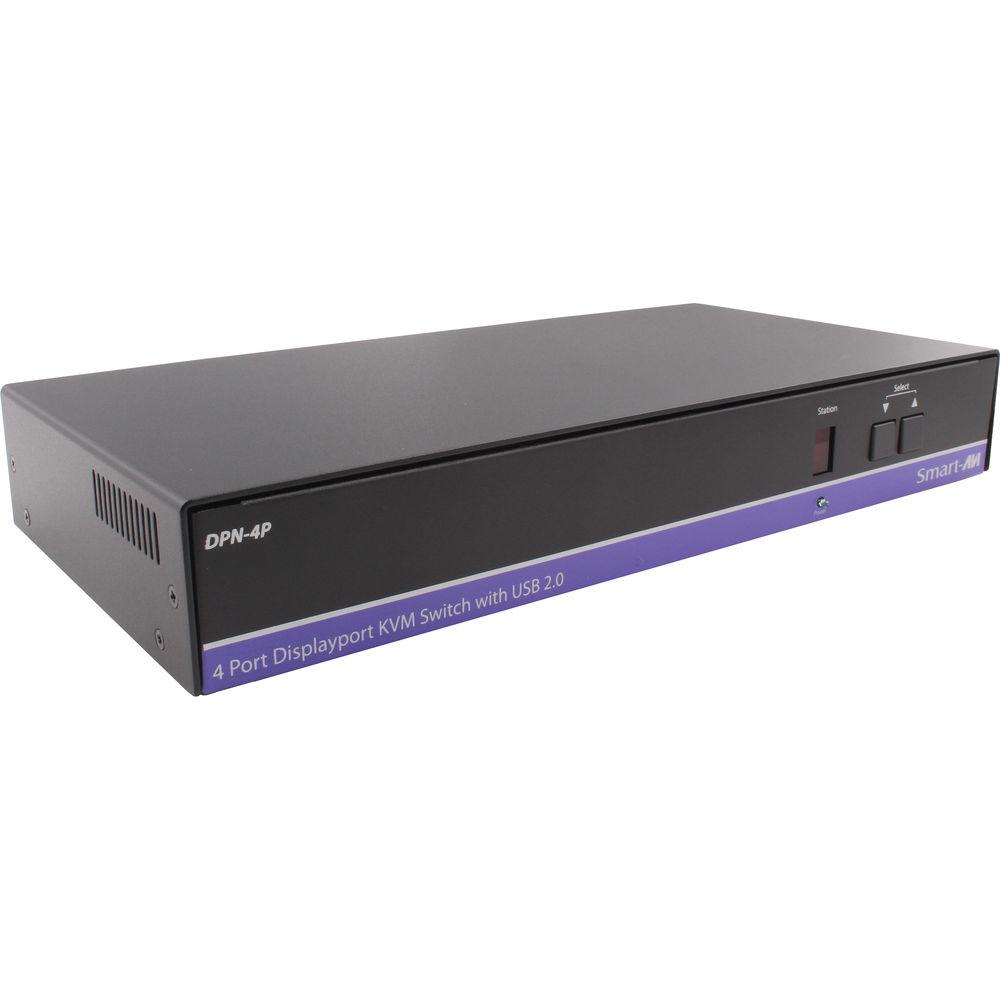

User Manual for Smart-AVI DPN-4PS DisplayPort KVM Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI DPN-4PS DisplayPort KVM Switch
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI DPN-4PS DisplayPort KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

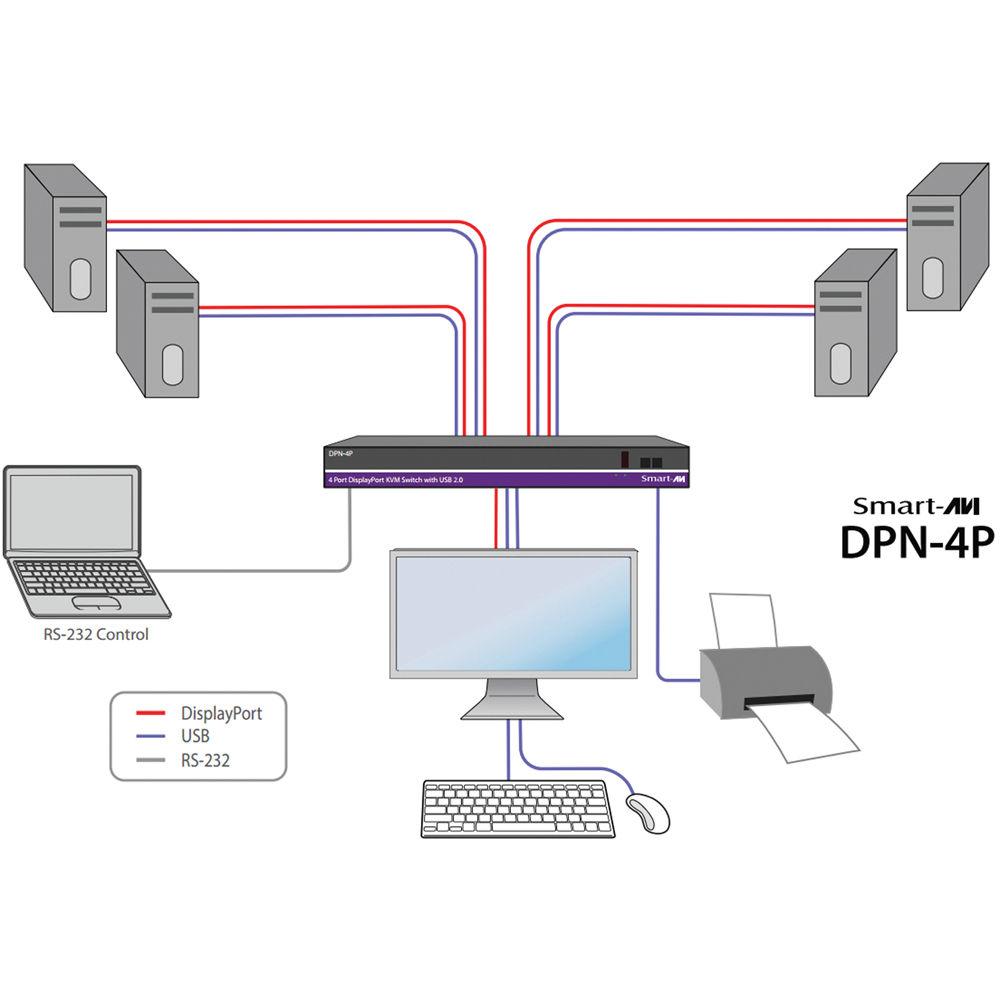

Product description Multi-Monitors: Maximizing Multitasking Read More fwvayxsyafbzerueevcycarcsracfwxxadby The DPN-4PS DisplayPort KVM Switch from Smart-AVI allows you to access and control four computers using one KVM workstation, enabling an increase in workflow capability. The switch manages the computers through one DisplayPort monitor, one USB keyboard, one USB mouse, and a variety of other USB 2.0 devices. It also supports HDMI and DVI video connections, RS-232 control, front panel switching, and is backwards compatible with prior DisplayPort versions. USB emulation technology provides quick source switching through keyboard hot keys, and EDID pass-through technology allows smooth and efficient switching. - Switch KVM control of four connected 4K computers from one workstation with one DisplayPort monitor
- Supports resolutions of up to 3840 x 2160 @ 30 Hz
- DisplayPort 1.2 compliant
- Minimum pixel loss with TMDS signal correction
- Supports all USB 2.0 devices, including a keyboard and mouse
- Supports Windows, Mac, and Linux
- Supports control via RS-232
- Hot key commands for quick channel selection
- Independent switching of KVM and peripheral USB ports
- Complete keyboard emulation for error free booting

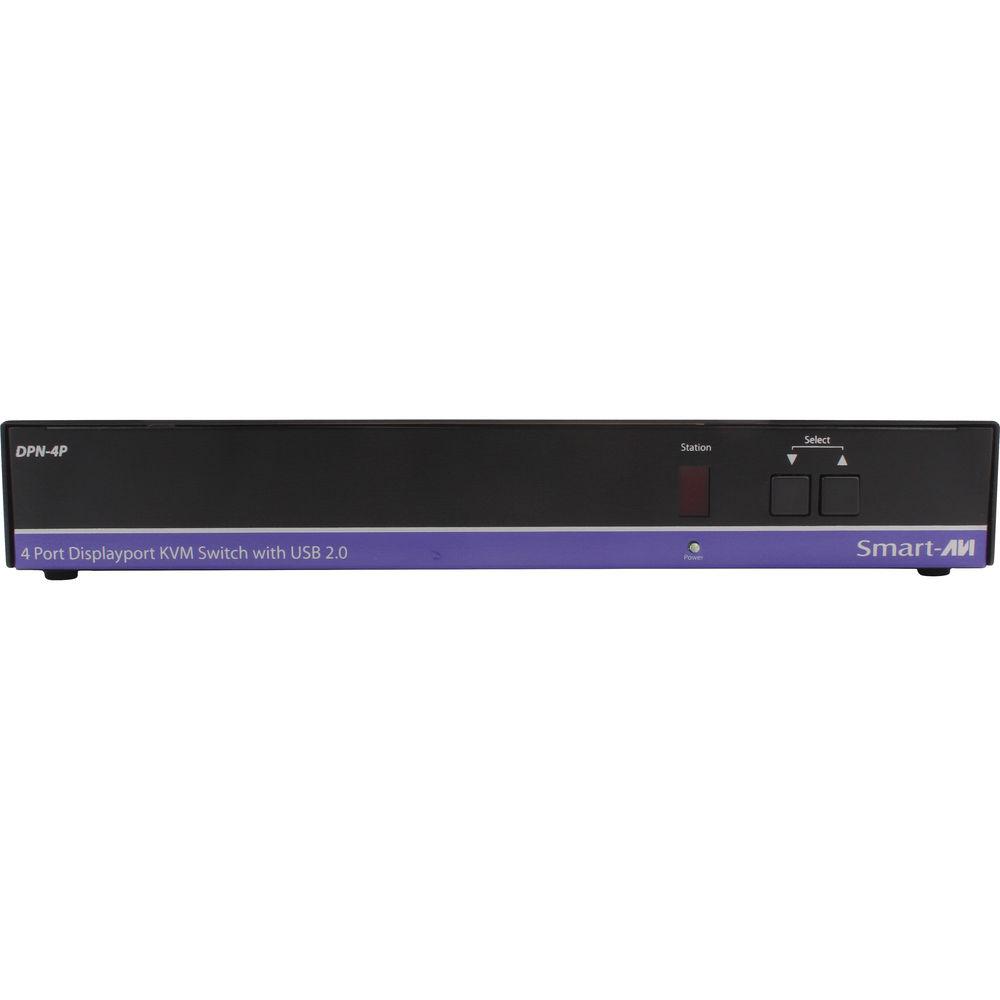

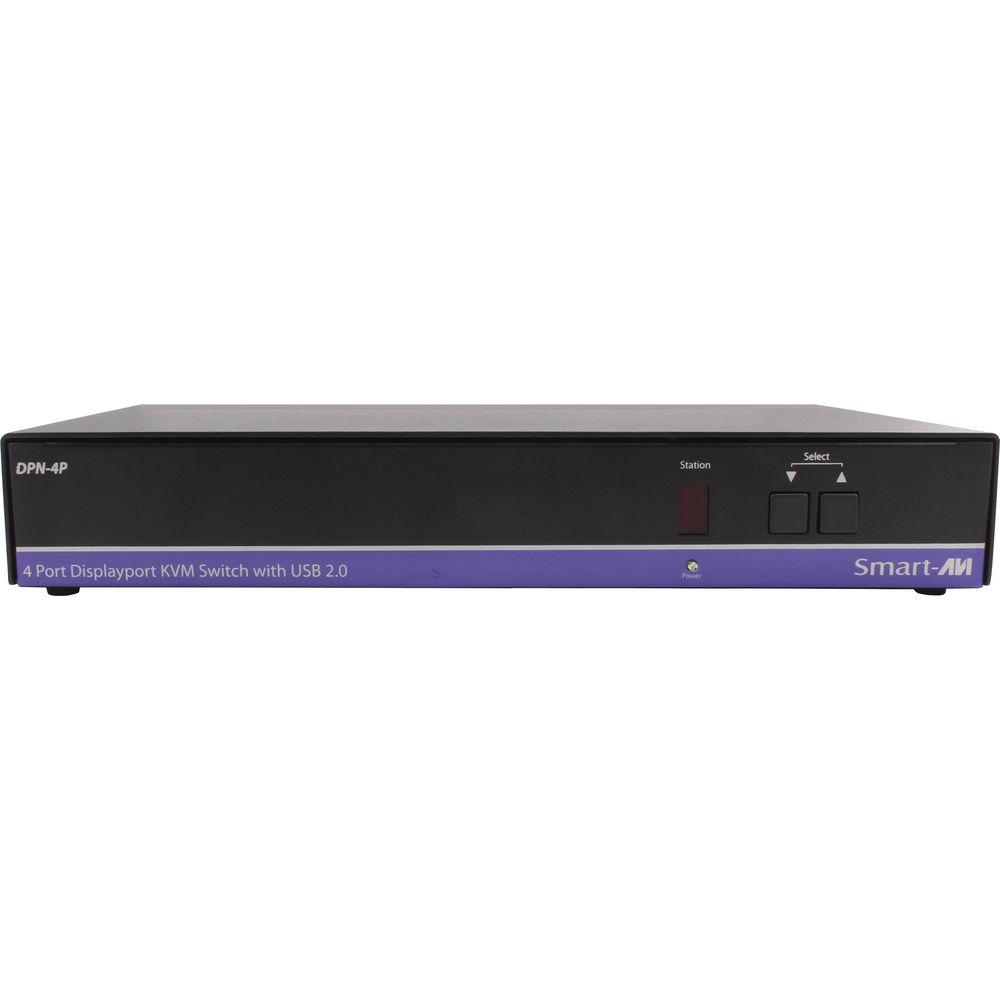

- Front panel keys for manual switching
- HDMI and DVI supported, and backwards compatible with prior DisplayPort versions
- Rack mountable in a standard 19" rack
In the Box Smart-AVI DPN-4PS DisplayPort KVM Switch Power Adapter Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DPN-4PS DisplayPort KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI DPN-4PS DisplayPort KVM Switch can be downloaded in PDF format at the link stated below.

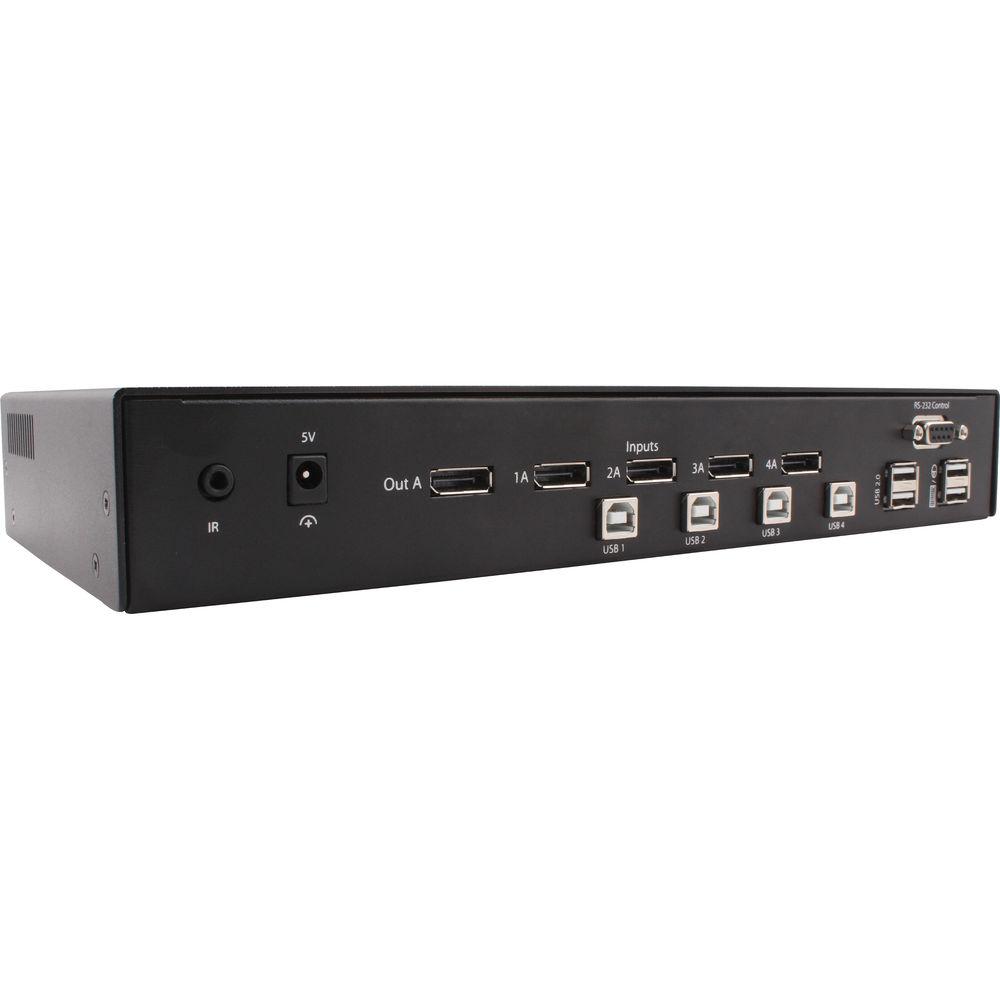

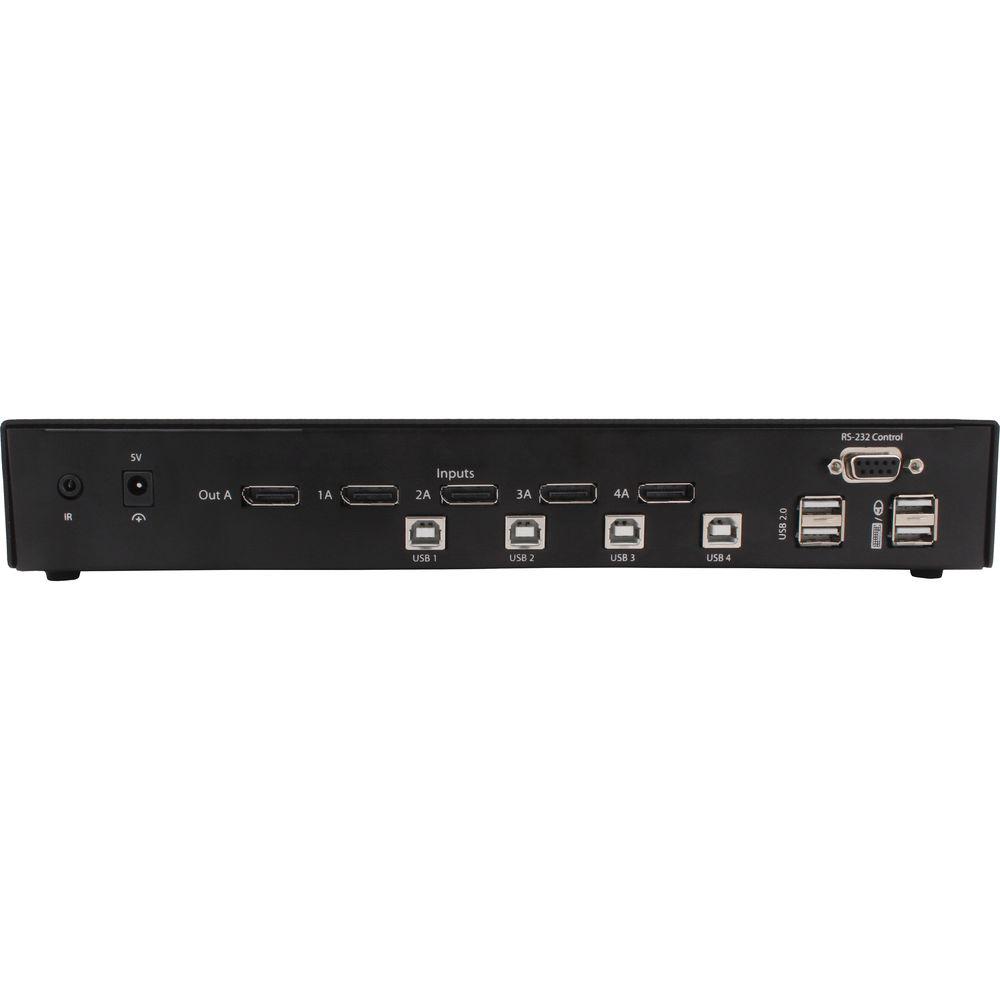

Technical parametersSmart-AVI DPN-4PS Specs | Format | DisplayPort 1.2 | | Connectors | USB Input Interface: 4 x USB Type B Female
USB Output Interface: 2 x USB 1.1 Type A Female, 2 x USB 2.0 Type A
Video Input Interface: 4 x DisplayPort Female
Video Output Interface: 1 x DisplayPort Female | | Resolution | Up to 3840 x 2160 @ 30 Hz | | USB | 2.0, 1.1, 1.0 with internal hub | | RS-232 | Control at 9600 bps | | Rate | Link: 5.4 GB per sec / lane | | Frequency Bandwidth | 10.2 GB per sec | | DDC | Faux transaction mode option over Aux channel | | Input Equalization | Automatic | | Switches | Front panel tactile switches | | Hot Keys | Available through keyboard | | Emulation | Keyboard, mouse | | Power | External: 100 to 240 VAC, 5 VDC, 4 A @ 20 W | | Power Consumption | Maximum: 20 W | | Supported Operating Systems | Windows, Mac, Linux | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | 5 to 90% RH, non-condensing | | Approvals | UL, CE, ROHS compliant | | Dimensions | 1.8 x 6.0 x 12.0" / 4.4 x 15.2 x 30.5 cm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 12.9 x 9.6 x 3.3" |
