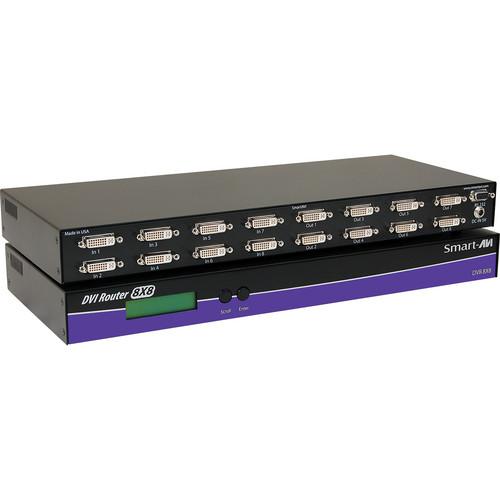

User Manual for Smart-AVI Dual Link DVI-D 8x8 Router Click to enlarge the picture
Contents of the user manual for the Smart-AVI Dual Link DVI-D 8x8 Router
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI Dual Link DVI-D 8x8 Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI Dual Link DVI-D 8x8 Router is an 8-port non-blocking, dual link DVI-D matrix switch that supports switching of 8 computers with 8 displays. Also provided is multiple EDID (Extended Display Identification Data) support allowing the displays to describe their capabilities to the connected computers. You are offered a resolution of 1920 x 1200 for each display. The Dual Link DVI-D 8 x 8 Router is compliant with RS-232 and infrared standards, and provides USB and Ethernet control options. You can remotely control the router switching operation via easy-to-use MS Windows-based software. - 8-port non-blocking, dual link DVI-D matrix switch
- Supports switching of 8 computers and displays
- Provides multiple EDID support allowing the displays to describe their capabilities to the connected computers
- Offers 1920 x 1200 resolution support
- Compliant with RS-232 and infrared standards
- Offers USB and Ethernet control options
- Allows remote control of router switching operation via easy-to-use MS Windows-based software
In the Box Smart-AVI Dual Link DVI-D 8x8 Router Software (SM-CSW) Power Supply (PS5VD5A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Dual Link DVI-D 8x8 Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVR8X8DS Specs | Resolution | Up to 1920 x 1200 | | Control | Front panel or RS-232 | | Input | (8) DVI-I, 29-pin, female | | Output | (8) DVI-I, 29-pin, female | | Input Signal | Input Video Signal: 1.2Vp-p
Input DDC Signal: 5Vp-p (TTL) | | Bandwidth | 165MHz | | Control | RS-232, DB-9, female | | Power | 5VDC, 2A | | Dimensions (HxWxD) | 1.8 x 12 x 6.5" (46 x 305 x 165mm) | | Weight | 4.1 lbs (1.9kg) |
