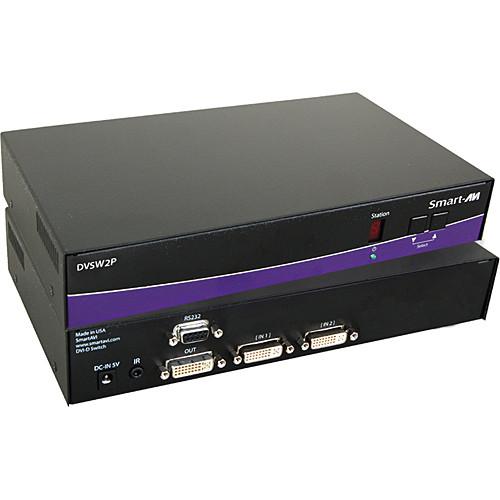

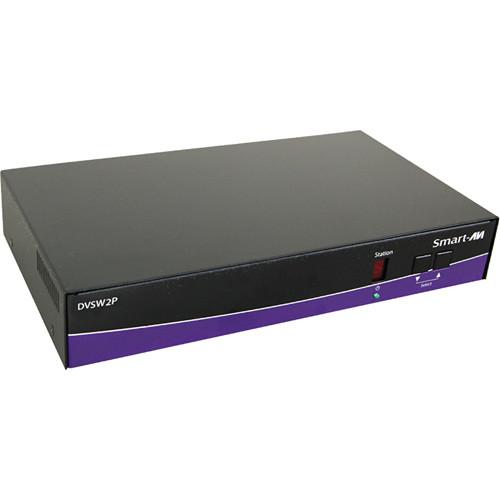

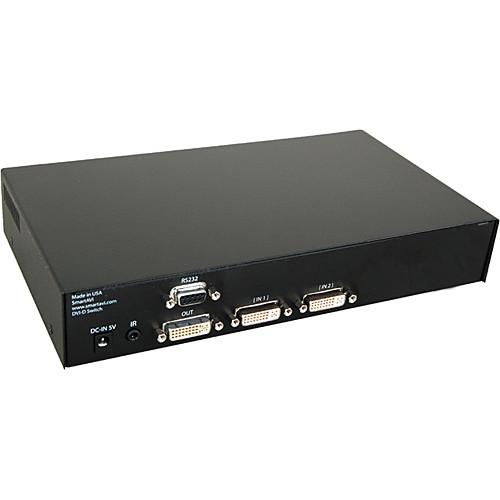

User Manual for Smart-AVI DVI-D 2-port Switch with RS-232 Control & Power Supply Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVI-D 2-port Switch with RS-232
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI DVI-D 2-port Switch with RS-232 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI DVI-D 2-port Switch with RS-232 Control & Power Supply allows you to display content from 2 DVI-D supported computers (Mac / PC / Linux / Sun) via a single shared DVI Monitor, thus saving space on your desktop. You can use the remote connection capabilities of the switch to display content up to distances of 20'. Rendering a resolution of 1920 x 1200 @ 60Hz WUXGA, the 2-port Switch incorporates TMDS signal correction to provide zero pixel loss. Universal DVI single link connectors are used for connections. Switch control options available to you include RS-232, IR, and an LED indicator-based front panel switch. Wide compatibility is offered for UL / CE / ROHS standards. You can use the DVI-D 2-port Switch with RS-232 Control for home theater integration, digital signage deployment, information kiosks or displays, and film/recording studio application areas. It comes with the PS5VD2A power supply. - Allows you to display content from 2 DVI-D supported computers (Mac / PC / Linux / Sun) via a single shared DVI Monitor, thus saving space on your desktop
- Uses remote connection capabilities to display content up to distances of 20'
- Renders a resolution of 1920 x 1200 @ 60Hz WUXGA
- Uses TMDS signal correction to provide zero pixel loss
- Provides connections via universal DVI single link connectors
- Offers switch control options via RS-232, IR, and an LED indicator-based front panel switch
- LED indicator-based front panel switch
- Offers wide compatibility for UL / CE / ROHS standards
- Wide application areas such as home theater integration, digital signage deployment, information kiosks or displays, and film recording studios
- Includes PS5VD2A power supply
UPC: 813280017145 In the Box Smart-AVI DVI-D 2-port Switch with RS-232 Control & Power Supply Software (DV-SW2) PS5VD2A 5V 2A Power Supply cfaefqfctecfcqabvwabdreac 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVI-D 2-port Switch with RS-232 Control & Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DV-SW2S Specs | Format | DVI-D Single Line | | Clock | 165 MHz | | Interface | Input: 2x DVI-D 29-pin female
Output: DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 @ 60Hz | | DDC | 5 volts p-p (TTL) | | Equalization | Automatic | | Cable Length | Up to 20' (6.1m) input and output | | Control | RS-232, IR and Front Panel | | Power | External 5 VDC, 2A | | Dimensions (WxHxD) | 10.5 x 1.9 x 6" (267 x 48 x 152mm) | | Weight | 5 lbs (2.3kg) |
