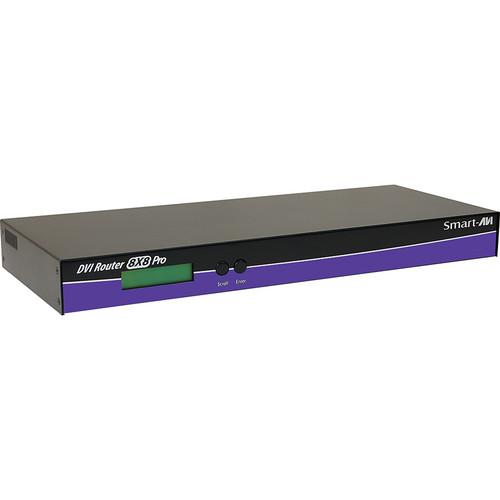

Product description The Smart-AVI DVI-D 8x8 Router / Extender is an 8-port non-blocking, single link, digital video matrix switch that can switch and extend DVI-D output of 8 computers to 8 displays via CAT6 STP cables to distances up to 200'. Single link DVI-D operation at a TMDS rate of 2 x 1.65 Gbps for a WUXGA resolution of 1920 x 1200 pixels is provided. You can achieve 8 x 8 analog matrix switching at 380 MHz bandwidth. Command signals compliant with RS-232 and infrared standards are also provided for router/extender control. Complete system control via easy-to-use windows based software is also provided. - 8-port non-blocking digital video matrix switch
- Switches and extends DVI-D output of 8 computers to 8 displays via CAT6 STP cables to distances up to 200'
- DVI transmission over 190'
- Provides 8 x 8 analog matrix switching at 380 MHz bandwidth
- Uses command signals compliant with RS-232 and infrared standards are also provided for router/extender control
- Offers single link DVI-D operation at a TMDS rate of 2 x 1.65 Gbps for WUXGA resolution of 1920 x 1200 pixels
- Uses simple and easy-to-use Windows-based software for complete system control
In the Box Smart-AVI DVI-D 8x8 Router / Extender Software (SM-CSW) Power Supply (CCPWR06US) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVI-D 8x8 Router Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVR8X8PROS Specs | | | Ports | Transmitter:
8 x DVI-I Female (Input)
Receiver:
8 x DVI-I Female (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 200' / 61 m | | Transmission Method | CAT6 Cable | | | | Bandwidth | 1.65 Gbps
165 MHz | | Signal Level | 1.2 Vp-p (Video)
5 Vp-p | | | | DC Input Power | 5 VDC at 2 A |
