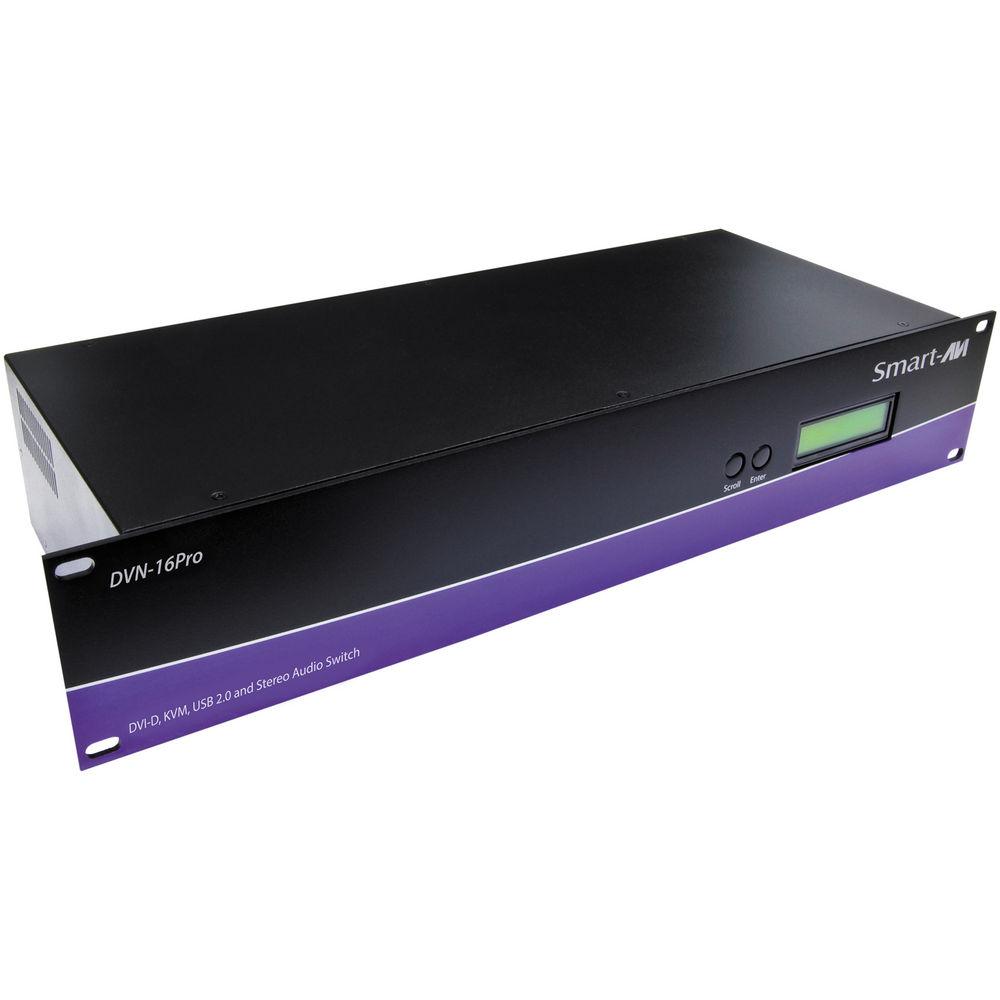

Product description Multi-Monitors: Maximizing Multitasking Read More The Smart-AVI DVNET-16PRO-S DVI-D KVM Switch lets you access and control up to 16 computers using only one USB keyboard and mouse and a DVI-D monitor. It is a dedicated multiplatform DVI-D KVM switch capable of managing up to 16 different computers through a single KVM configuration. The USB emulation technology utilized by DVN-16Pro enables immediate hotkey source switching through a remote USB keyboard and mouse. This switch uses single link connectors providing high resolutions of up to 1920 x 1200 with 0 pixel loss from TMDS signal correction.The Switch provides a simplified management approach for up to 16 computers with DVI-D, audio, and USB 2.0 outputs. This dynamic KVM console can be controlled remotely from easily accessible keyboard hotkeys or RS232 commands as well as directly through the console’s easy-to-read front panel.Detection of DDC signals for all attached devices is effortless due to its real EDID learning and programming. This is vital in optimizing the resolution of the selected graphics card to properly display on the remote monitor. Furthermore, the EDID learning feature continues to replicate the right DDC for the computer to enable the display card to effectively work when unused ports are not selected.The USB keyboard and mouse emulation utilized in this switch provides an accurate and quick source switching by means of keyboard hotkeys and mouse actions. It imitates the presence of a keyboard and mouse for every attached computer through a USB cable. This is essential as it simulates the existence of the keyboard and mouse to all the computers while switching without interruptions. Flexibility is key to the DVN-16PRO Switch. It enables the use of a USB keyboard and mouse of one computer while other USB peripherals such as speakers, scanners, and printers are connected to other computer sources. It maintains the ability to switch all connected devices to any one of the computer sources as with any other KVM switches.This KVM Switch has a broad range of applications, but the main function is to centralize the access of several computers into one comprehensive PC. Not only does it function as a KVM console, it also supports USB 2.0 functionality. This allows a user at the console to use USB device such as a flash memory drive or camera without having to plug it directly into the remote computer. This switch is a suitable solution for the medical or industrial field for instance, where it may not be practical (or safe) to have one or more CPUs in the general vicinity. It can also be used in server collocation, digital signage, education, airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, hotels, and resorts. - Features
-
- Supports Mac, PC, Linux, and Sun Mac OS, Sun OS, Unix
- Supports High Resolution 1920 x 1200 60Hz WUXGA
- Uses universal DVI Single Link connectors Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 Devices Control Sun, Mac, or PC computers from a common KVM console
- Compatible with all major software including Windows, Linux, Mac OS, Sun OS, Unix
- Rack mountable in a standard 19” rack
- Flash upgradeable firmware
- Front panel keys-used for selecting users and channels manually
- Supports USB keyboard and mouse
- Balanced stereo audio output

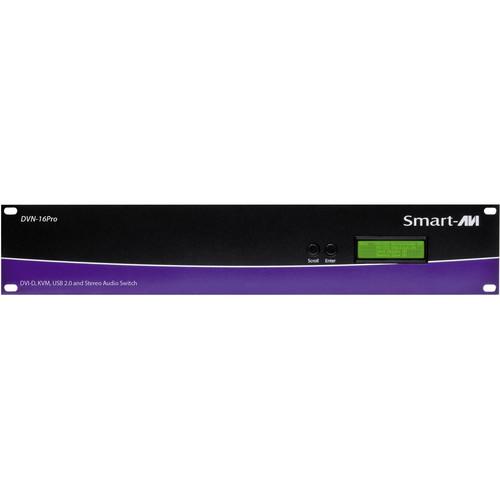

- Front panel tactile switch with LCD display for local control
- Full IR and RS-232 control for remote control TCP/IP control (sold separate;y)
- Hot-key commands can be used for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB/audio ports for listening to audio from one computer while working on the other OR scan a document and save in another computer
- Complete keyboard emulation for error-free booting
- Superior Video Quality: 1920 x 1200 @ 60Hz
- Flexible Control
-
- RS-232: Any external device or program supporting RS-232 can control the DVN-16PRO. It uses a very simple protocol that enables easy integration with other devices.
- USB/Keyboard: Hot keys enable the user to switch and control all the different functions of the KVM system
- IR: Infrared remote control enables integration and control of the KVM switch.
- TCP/IP: SMTCP-2 is a Smart-AVI TCP/IP converter that enables users to switch and control the DVN-16PRO control from anywhere in the world using a LAN or WAN connection (sold separately).
- EDID utility: Detection of DDC signals for all attached devices is effortless with DVN-16PRO due to its real EDID learning and programming. This is vital in optimizing the resolution of the selected graphics card to properly display on the remote monitor. Furthermore, the EDID learning feature continues to replicate the right DDC for the computer to enable the display card to effectively work when unused ports are not selected.
UPC: 813280017206 In the Box Smart-AVI DVNET-16PRO-S Cross Platform DVI-D KVM Switch 5 VDC/4 A External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVNET-16PRO-S Cross Platform DVI-D KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

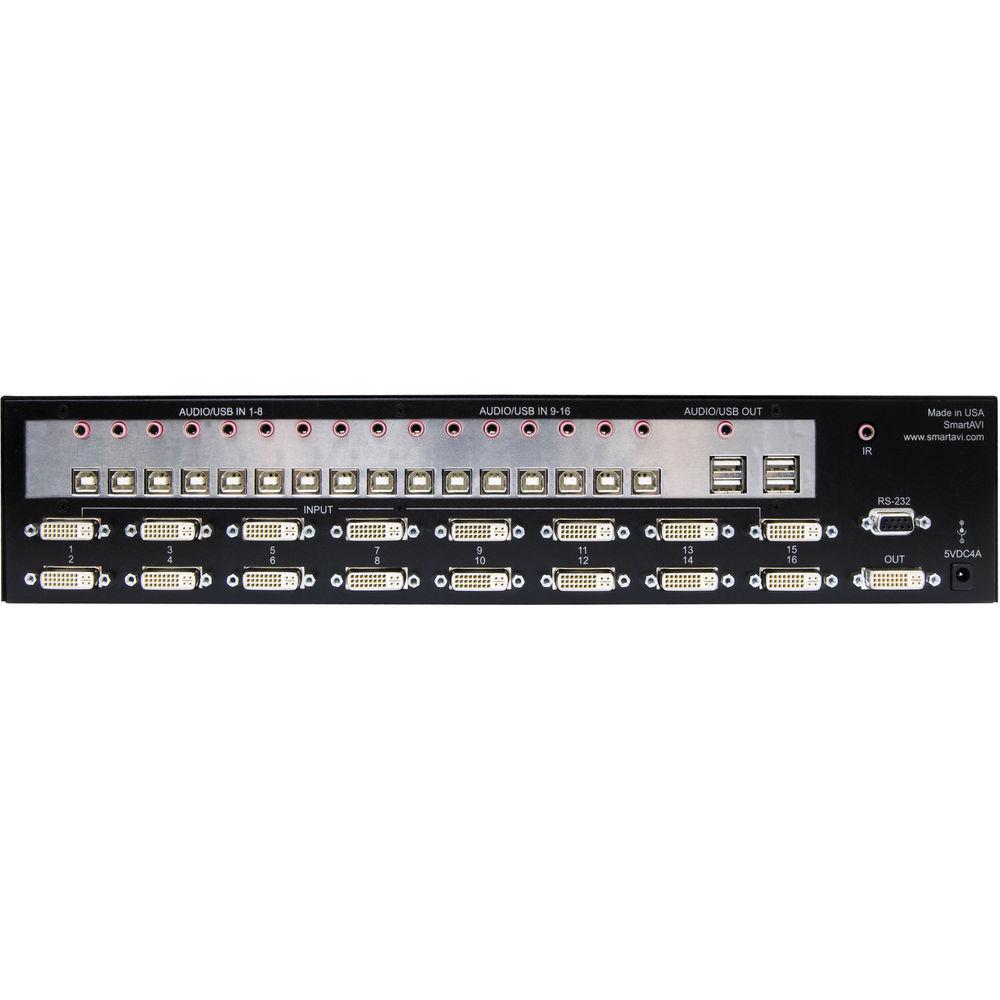

Technical parametersSmart-AVI DVNET-16PRO-S Specs | Video Format | DVI-D Single Link, DVI 1.0 | | Clock | Maximum Pixel Clock: 165 MHz | | Interface (Inputs/Outputs) | Input: 16 x DVI-D 29-pin
Output: 1 x DVI-D 29-pin | | Resolution | Up to 1920 x 1200 @ 60 Hz | | Display Data Channel | DDC: 5 Vpp (TTL) | | Equalization | Input Equalization: Automatic | | Cable Length | Input: Up to 20' (6 m)
Output: Up to 20' (6 m) | | Data Rate | 1.65 Gb/s per color | | USB | Signal Type: USB 2.0, 1.1 and 1.0 with internal hub
Input Interface: 16 x USB Type B
Output Interface: 2 x USB 1.1 Type A for KVM Devices, 2 x USB 2.0 Type A transparent | | Control | Front Panel: Tactile Switch, Display: LCD 2 x 20 Character
RS232: Via control @ 115.200 kb/s
IR: RC5 | | Power | External 100 to 240 VAC / 5 VDC 4 A @ 20 W | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Emulation | Keyboard and Mouse | | Dimensions (W x H x D) | 17.00 x 3.50 x 6.75" (432.00 x 89.00 x 171.45 mm) | | Weight | 10 lb (4.5 kg) | | | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 13.0" |
