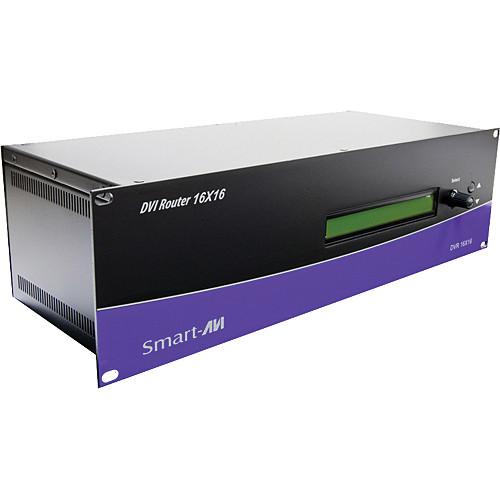

User Manual for Smart-AVI DVR16X16S DVI-D Router Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVR16X16S DVI-D Router
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI DVR16X16S DVI-D Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The DVR16X16S DVI-D Router from Smart-AVI is device that allows you to control any of (16) computers from any of (16) sets of DVI monitor, keyboard, and mouse. This solution enables easy access to multiple servers from various locations. - This device can increase productivity by providing you with access to (16) computers from (16) workstations
- This solution is a 16x16, non-blocking, single-link, DVI matrix switch
- It can be used to facilitate data sharing among departments and increase security, among many other possible uses
- The router supports DVI operation at the maximum TMDS rate of 2 x 1.65Gbps
- Resolutions up to 1080p, 2K, and 1920 x 1200 are supported
- It offers simultaneous 16x16, analog, matrix switching at 380MHz bandwidth
- DVI transmission over 19' (6m) at the highest TMDS rate of 1.65Gbps is possible
- It can be controlled from its front panel or RS-232 connectivity
- A separately available IR remote control can also be used to manage the device
In the Box Smart-AVI DVR16X16S DVI-D Router Power Supply One-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVR16X16S DVI-D Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVR16X16S Specs | Inputs/Outputs | 16x16 | | Video | Video Amplifier Bandwidth: 165MHz
Input Video Signal: 1.2Vp-p
Input DDC Signal: 5Vp-p (TTL)
Single Link Range: 1080p, 1920 x 1200
DVI Connector: DVI-I, 29-pin, female | | Control | Front panel
RS-232, DB9 female connector | | Power | 5VDC, 2A | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer |
