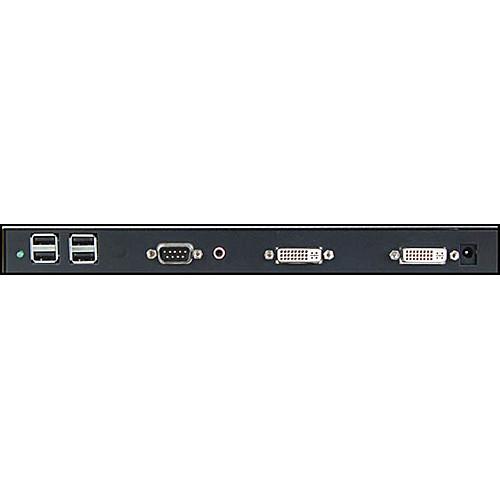

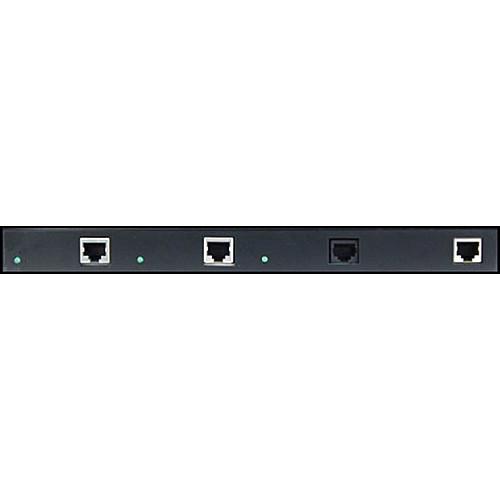

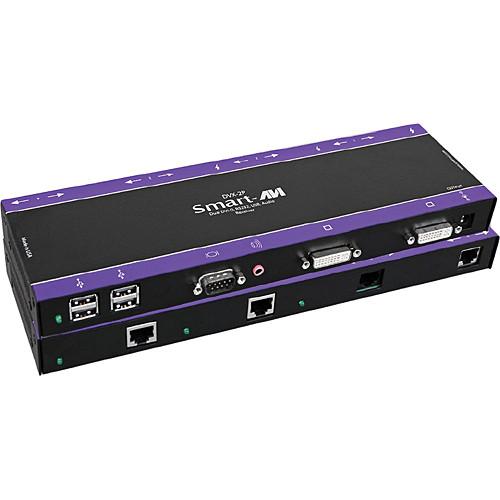

User Manual for Smart-AVI DVX-2P Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVX-2P Receiver
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI DVX-2P Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI DVX-2P Receiver offers multiple signal reception at distances up to 275' while retaining clear image and audio quality. An external power supply for the receiver is also included. Using CAT6 STP cables, you can also receive DVI-D, USB 1.1, Stereo Audio, and RS-232 signals over long distances. You can use up to 2 DVI-D sources, and achieve data transfer rates of 1.5 and 12 Mbps using the DVX-2P Receiver. Wide compatibility is offered for all operating systems and KVM switches along with full compliance to USB 1.1 standards. You can use the DVX-2P Receiver in medical, education, military, and entertainment applications where close proximity between displays and workstations needs to be avoided. - Provides multiple signal reception up to 275' while still retaining clear image and audio quality
- Includes external power supply for receiver
- Provides DVI-D, USB 1.1, Stereo Audio, and RS-232 signal reception via CAT6 STP cables
- Allows you to achieve 1.5 and 12 Mbps data transfer rates
- Compatibility for all operating systems and KVM switches
- Provides full compliance with USB 1.1 standards
- Can be used in medical, education, military, and entertainment applications where close proximity between displays and workstations needs to be avoided
In the Box Smart-AVI DVX-2P Receiver Power Supply (PS5VD3A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVX-2P Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVX-2P Specs | | | Ports | Receiver:
1 x DVI-D (Input)
1 x DVI-D (Output)
1 x DB9 RS232 (Output)
4 x USB Type-A USB 1.1 (Output) | | Supported Resolutions | 1024 x 720
640 x 480
1920 x 1200 @ 60 Hz
1280 x 1024 @ 75 Hz | | Maximum Transmission Distance | 275' / 83.8 m | | Transmission Method | CAT6 Cable | | Audio Channels Supported | 2-Channel Stereo | | Impedance | 10K Ohms (Audio) | | | | Bandwidth | 1.65 Gbps
15 MHz at 0 dB (Audio) | | | | Dimensions | 10.8 x 3.4 x 1.1" / 274.0 x 86.0 x 28.0 mm | | Weight | 8.0 lb / 3.6 kg |
