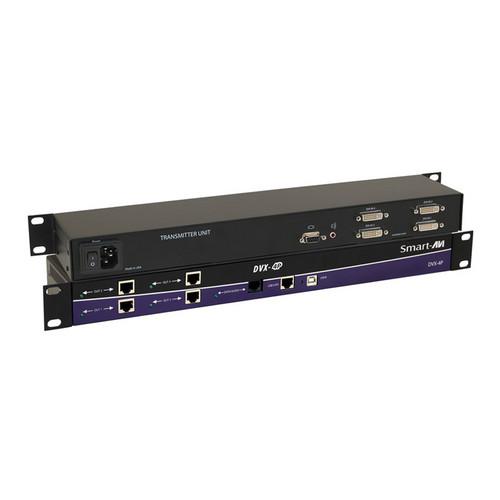

User Manual for Smart-AVI DVX-4P-RX Rackmount DVI System Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVX-4P-RX Rackmount DVI System Receiver
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI DVX-4P-RX Rackmount DVI System Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The DVX-4P-RX Rackmount DVI System Receiver from Smart-AVI allows you to extend up to (4) DVI-D, USB 1.1, stereo audio, and RS-232 signals up to 275' (83.82m) using CAT-6 cables. This unit is the receiver device only. You must combine it with the separately available transmitter to form a complete solution. This unit supports transmission without signal loss at resolutions up to 1900 x 1200. The device is well suited for use in educational institutions, medical facilities, military installations, and conference rooms, among many other possible applications and settings. - This unit is the receiver device only and you must combine it with the separately available transmitter to form a complete solution
- Designed to offer superior quality at all resolutions
- Supports video resolutions up to 1900 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)
- Transmission distances up to 275' (83.82m)
- Compatible with all operating systems
- Compatible with all major KVM switches
- Separately available rackmount option
- Supports up to (4) DVI-D sources
- Supports USB 1.1 keyboard and mouse
- Uses easy-to-install, inexpensive, pair cable
- Data recovery for digital video
- Fully-compliant with USB 1.1 specifications
- Supports 1.5 and 12Mbps data rates
- External power adapters for transmitter and receiver units
- Fully-transparent without the use of emulation
- Plug-and-play installation
In the Box Smart-AVI DVX-4P-RX Rackmount DVI System Receiver Power Supply One-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVX-4P-RX Rackmount DVI System Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVX-4P-RX Specs | | | Ports | Receiver:
1 x DB9 RS232 (Output)
1 x USB Type-B USB 1.1 (Output)
4 x DVI-D (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1280 x 1024 @ 75 Hz | | Transmission Method | CAT6 Cable | | Impedance | 100 Ohms | | | | DC Input Power | 5 VDC at 3 A | | | | Dimensions | 1.7 x 17.0 x 3.5" / 43.2 x 431.8 x 88.9 mm | | Weight | 2.0 lb / 907.2 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
