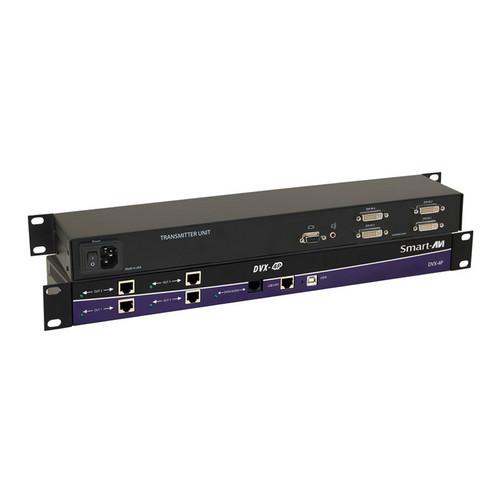

Product description The DVX-4P-TXS Rackmount DVI System Transmitter from Smart-AVI allows you to extend up to (4) DVI-D, USB 1.1, stereo audio, and RS-232 signals up to 275' (83.82m) using CAT-6 cables. This unit is the transmitter device only. You must combine it with the separately available receiver to form a complete solution. This unit supports transmission without signal loss at resolutions up to 1900 x 1200. The device is well suited for use in educational institutions, medical facilities, military installations, and conference rooms, among many other possible applications and settings. - This unit is the transmitter device only and you must combine it with the separately available receiver to form a complete solution
- Designed to offer superior quality at all resolutions
- Supports video resolutions up to 1900 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)
- Transmission distances up to 275' (83.82m)
- Compatible with all operating systems
- Compatible with all major KVM switches
- Separately available rackmount option
- Supports up to (4) DVI-D sources
- Supports USB 1.1 keyboard and mouse
- Uses easy-to-install, inexpensive, pair cable
- Data recovery for digital video
- Fully-compliant with USB 1.1 specifications
- Supports 1.5 and 12Mbps data rates
- External power adapters for transmitter and receiver units
- Fully-transparent without the use of emulation
- Plug-and-play installation
In the Box Smart-AVI DVX-4P-TXS Rackmount DVI System Transmitter Power Supply One-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVX-4P-TXS Rackmount DVI System Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVX-4PS Specs | | | Ports | Transmitter:
1 x DB9 RS232 (Input)
4 x DVI-D (Input)
1 x USB Type-B USB 1.1 (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz
1280 x 1024 @ 75 Hz | | Transmission Method | CAT6 Cable | | Impedance | 100 Ohms | | | | DC Input Power | 5 VDC at 3 A | | | | Dimensions | 1.7 x 17.0 x 3.5" / 43.2 x 431.8 x 88.9 mm |
