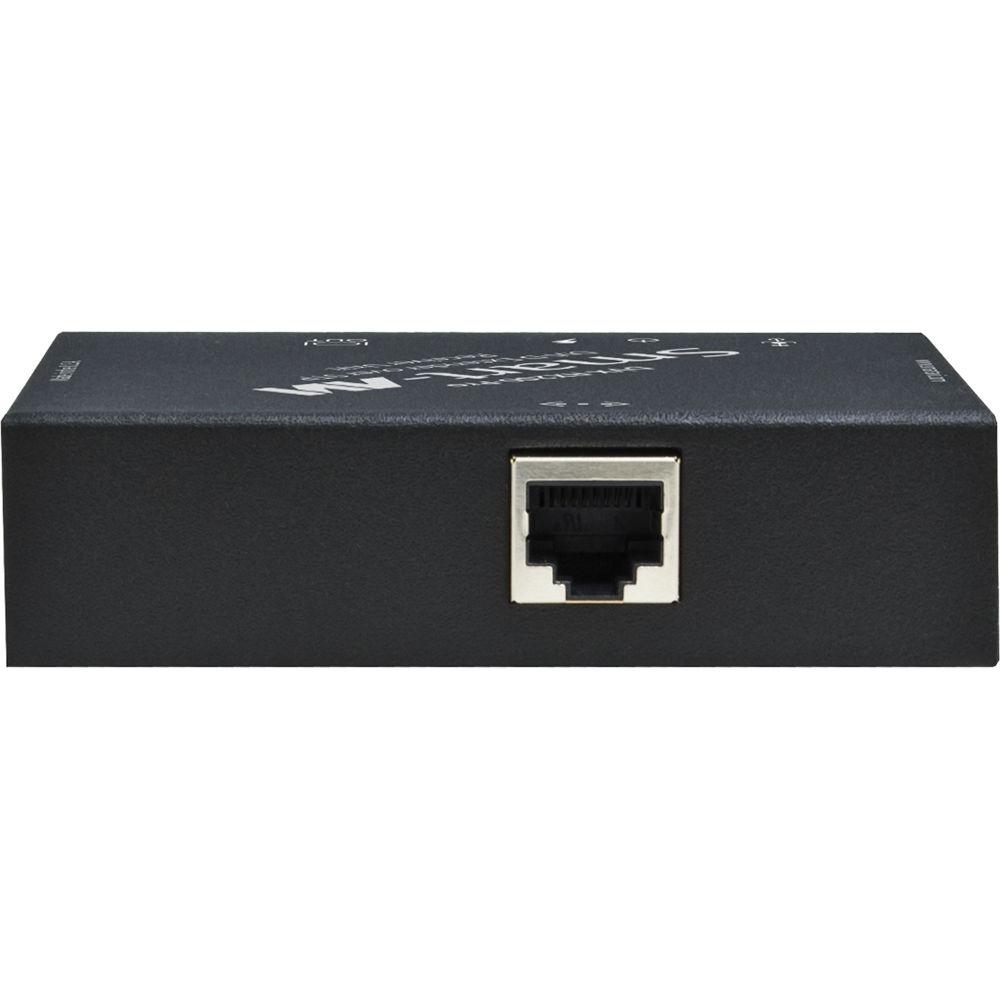

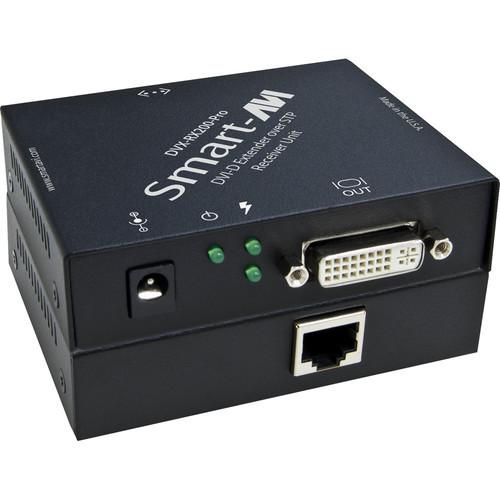

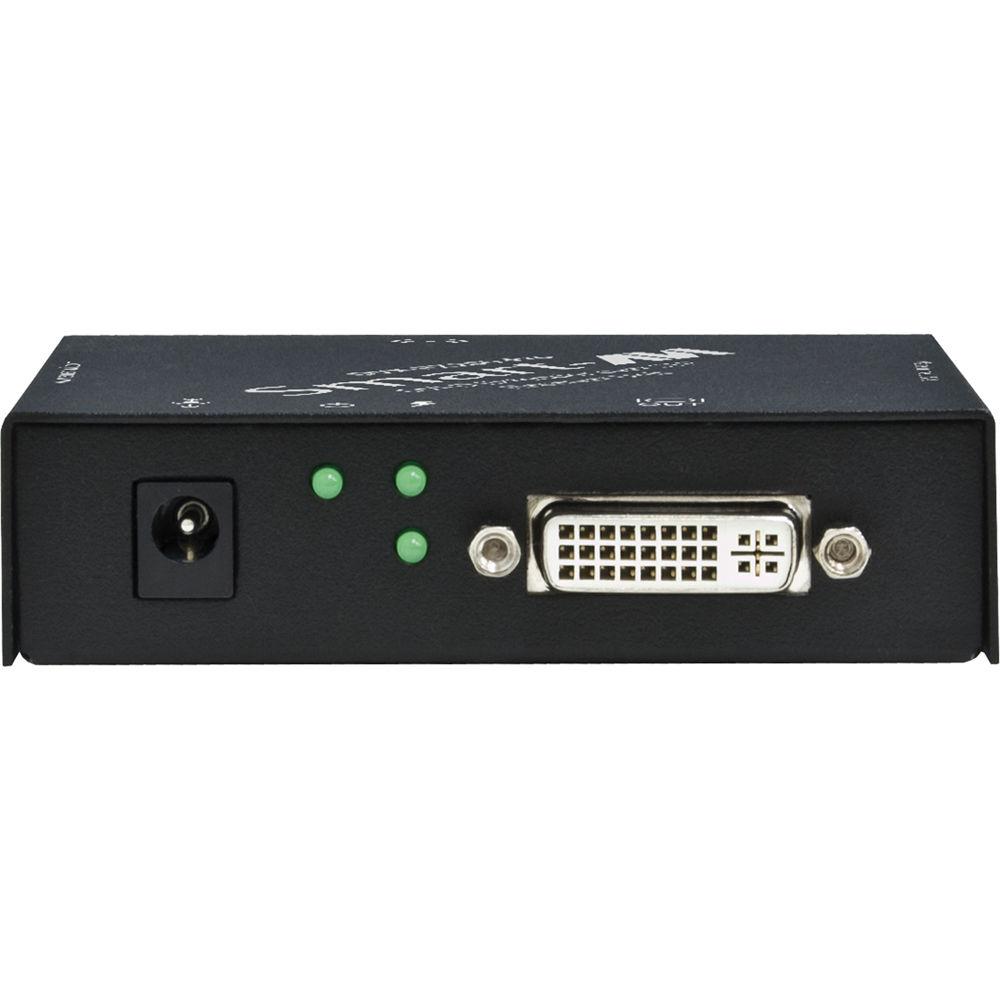

User Manual for Smart-AVI DVX-RX200-PROS DVI Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVX-RX200-PROS DVI Receiver
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
 |
User manual for the Smart-AVI DVX-RX200-PROS DVI Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The DVX-RX200-PROS DVI Receiver from Smart-AVI is designed to receive DVI-D signals from a compatible transmitter (not included) located up to 250' away. A twisted-pair cable is used for interconnection. This receiver supports DVI-D single-link sources, and resolutions of up to 1920 x 1200 60Hz WUXGA. The receiver has a dedicated switch to learn DDC. It features full reclocking to optimize the digital signal's regeneration. This unit supports Mac, PC, and Linux DVI, and uses universal DVI Single Link connectors. TMDS signal correction allows for zero pixel loss, and data recovery for digital video is available. This receiver is compatible with most KVM switches, and is ideal for applications such as call centers, industries, airports, and similar environments. - Used with a compatible transmitter (not included), supports DVI-D single-link sources
- Supports high resolution 1920 x 1200, 60 Hz, WUXGA
- Full reclocking regenerates digital signal producing top signal quality
- Extends up to 250' (275' with high quality CAT6 STP)
- Supports Mac, PC, and Linux DVI
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Compatible with all major KVM switches
- Data recovery for digital video
UPC: 813280017480 In the Box Smart-AVI DVX-RX200-PROS DVI Receiver 6' Male DVI-D Cable PS5VDC2A Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVX-RX200-PROS DVI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVX-RX200-PROS Specs | | | Format | DVI-D Single Line | | Maximum Pixel Clock | 165 MHz | | Connectors | 1 x 29-pin female, DVI-D output
1 x RJ-45, CATx connection to transmitter
1 x Power barrel | | Indicators | 3 x LED indicators | | Resolution | Up to 1920 x 1200 @ 60 Hz | | DDC | 5 V pp (TTL) | | Input Equalization | Automatic | | Cable Length | Output: Up to 20' (6.1 m) | | | | Power | External 100 to 240 VAC / 5 VDC 2 A @ 10 W | | Temperature | Storage: -4 to 185°F (-20 to 85°C)
Operating: 32 to 131°F (0 to 55°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 3.7x 1.0 x 3.0" (9.4 x 2.5 x 7.6 cm) | | Weight | 0.2 lb (0.1 kg) | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 7.0" |
