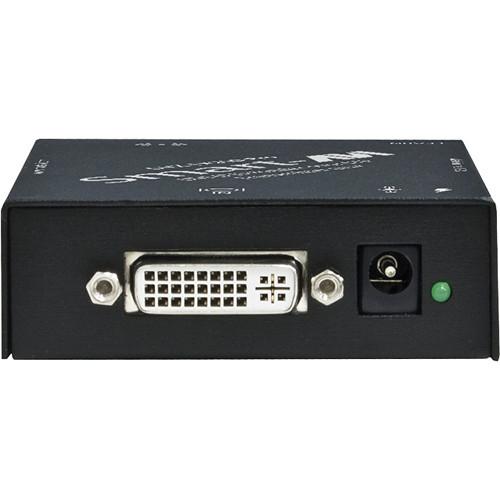

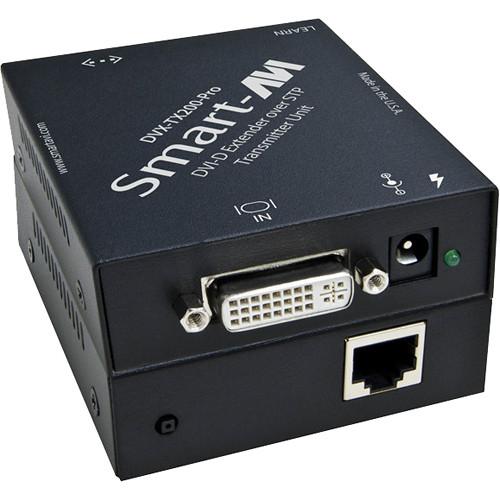

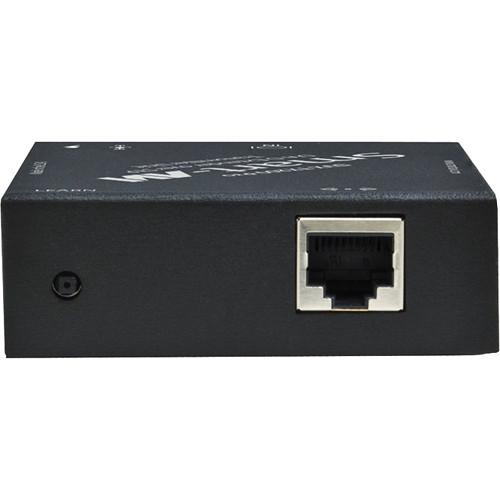

User Manual for Smart-AVI DVX-TX200-ProS DVI-D CAT6 STP Super Reclocking Extender Transmitter Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVX-TX200-ProS DVI-D CAT6 STP Super
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI DVX-TX200-ProS DVI-D CAT6 STP Super contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI DVX-TX200-ProS DVI-D CAT6 STP Super Reclocking Extender Transmitter is designed to broadcast high-definition DVI-D signals up to 250’ (76.2 m) using inexpensive twisted pair cables. It is a suitable solution for extending a DVI-D display to a remote location up to 250’ (76.2 m) away. It features pixel-accurate signal reclocking, which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning. - Supports DVI-D single-link sources
- Supports high resolution 1920 x 1200 60 Hz WUXGA
- Dedicated switch to learn any DDC
- Extends up to 250' / 76.2 m (275' / 83.82 m with high quality CAT6 STP)
- Supports Mac, PC, and Linux DVI
- Uses universal DVI Single Link connectors
- Zero pixel loss with TMDS signal correction
- Compatible with all major KVM switches
- Data recovery for digital video
- Applications: Medical applications, industrial work areas, home theater integration, digital signage deployment, information kiosks / displays, and film / recording studios
UPC: 813280017497 In the Box Smart-AVI DVX-TX200-ProS DVI-D CAT6 STP Super Reclocking Extender Transmitter PS5VD2A 5V 2A Power Supply MM DVI-D 6' (1.83 m) DVI-D Cable 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVX-TX200-ProS DVI-D CAT6 STP Super Reclocking Extender Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVX-TX200-PROS Specs | | | Format | DVI-D Single Link | | Maximum Pixel Clock | 165 MHz | | Interface | Input Interface: 1 x DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 @ 60 Hz | | DDC | 5 Vpp (TTL) | | Input Equalization | Automatic | | Cable Length | Up to 20' (6.1 m) | | | | Power | External 100 to 240 VAC / 5 VDC, 2 A @ 10 W | | Temperature | Storage: -4 to 185°F (-20 to 85°C)
Operating: 32 to 131°F (0 to 55°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 2.88 x 1 x 3.38" (73.15 x 25.4 x 8.85 mm) | | Weight | 0.5 lb (0.23 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.7 x 5.4 x 4.3" |
