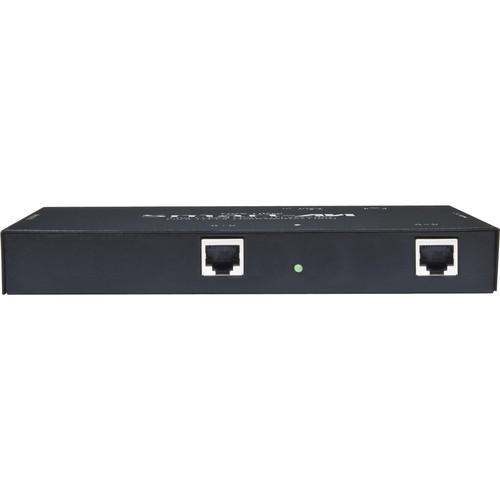

User Manual for Smart-AVI DVX-UTRX DVI-D USB over Dual CAT6 Extender Receiver Unit Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVX-UTRX DVI-D USB over Dual
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI DVX-UTRX DVI-D USB over Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The DVX-UTRX Extender Receiver Unit from Smart-AVI provides DVI and USB signals received over two CAT6 cables from a DVX-UTTX transmitter unit (sold separately). It has two RJ45 inputs, one DVI-D, and four USB outputs. It provides a DVI video output, and can connect to keyboards, mice, and other interface devices via its four USB connectors. It supports resolutions up to 1920x1200, features plug-and-play functionality, and is compatible with all operating systems. It is equipped with a data-recovery reclocking feature that regenerates an incoming signal in case the signal is weakened by a DVI-converter on the transmitter end. This receiver is compliant with all USB 1.1 and 2.0 specifications. - Outputs by DVI and USB signals it receives by CAT6
- Equipped with 4 x USB outputs to connect to interface devices
- Plug-and-play capable and compatible with all operating systems
- Features data reclocking that regenerates a possibly weakened signal
- Supports resolutions up to 1920x1200. Compliant with USB 1.1 / 2.0 specs
In the Box Smart-AVI DVX-UTRX DVI-D/USB over Dual CAT6 Extender Receiver Unit Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVX-UTRX DVI-D USB over Dual CAT6 Extender Receiver Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVX-UTRXS Specs | Video Format | DVI-D | | Maximum Pixel Clock | 165 MHz | | Inputs | 2 x RJ45
1 x DVI-D 29-pin female
1 x USB type B | | Outputs | 1 x DVI-D 29-pin female
4 x USB type A female | | Supported Resolutions | Up to 1920x1200 @ 60 Hz | | DDC | 5 volts p-p (TTL) | | Input Equalization | Automatic | | Output Cable Length | Up to 20' (6 M) | | Signaling | USB 2.0, 1.1 and 1.0 | | Power | External 100-240 VAC/5 VDC 4 A @ 20 W | | Operating Temperature | 32 - 131°F (0 - 55°C) | | Storage Temperature | -4 - 185°F (-20 - 85°C) | | Humidity | Up to 95% | | Approvals | UL, CE, ROHS compliant | | Emulation | Fully transparent - no USB emulation | | Dimensions | 6.25 x 1.00 x 3.50" (15.88 x 2.54 x 8.89 cm) | | Weight | 1 lb (0.45 kg) |
