User Manual for Smart-AVI DVX-UTTX DVI-D USB over Dual CAT6 Extender Transmitter Unit Click to enlarge the picture
Contents of the user manual for the Smart-AVI DVX-UTTX DVI-D USB over Dual
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI DVX-UTTX DVI-D USB over Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

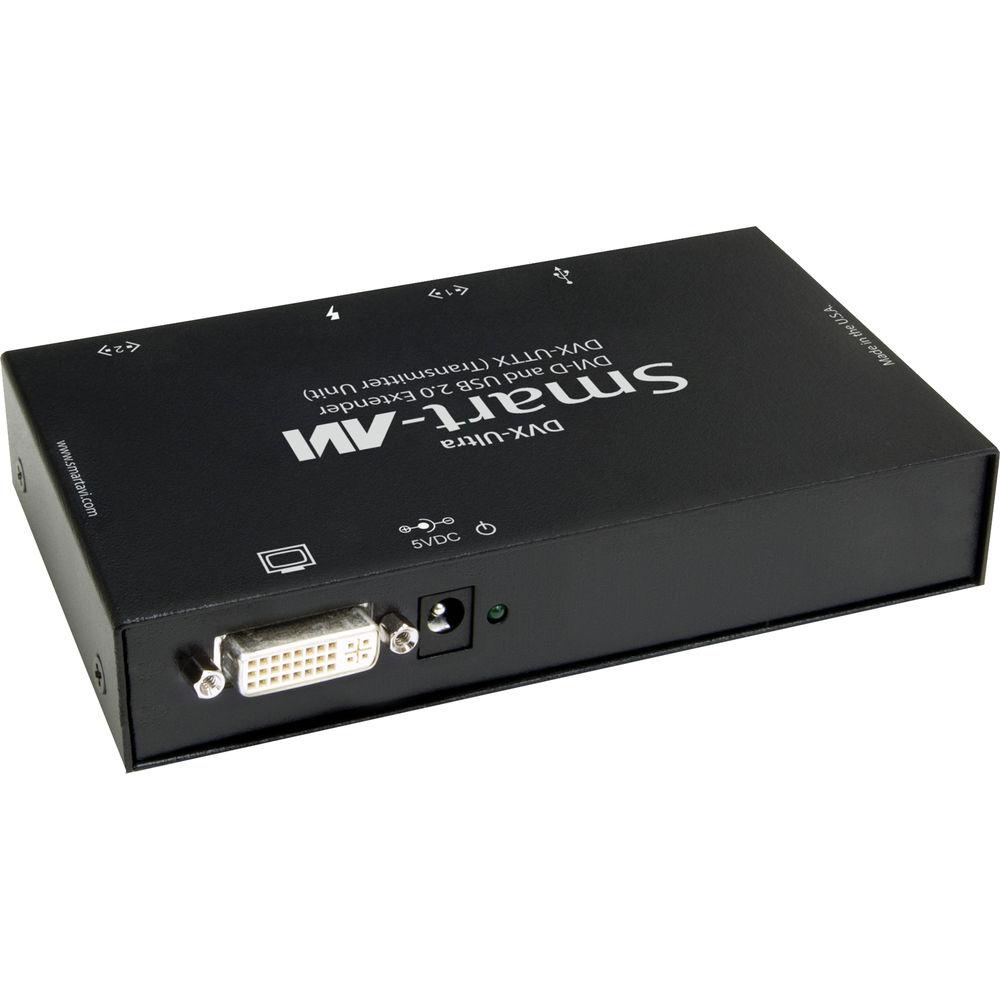

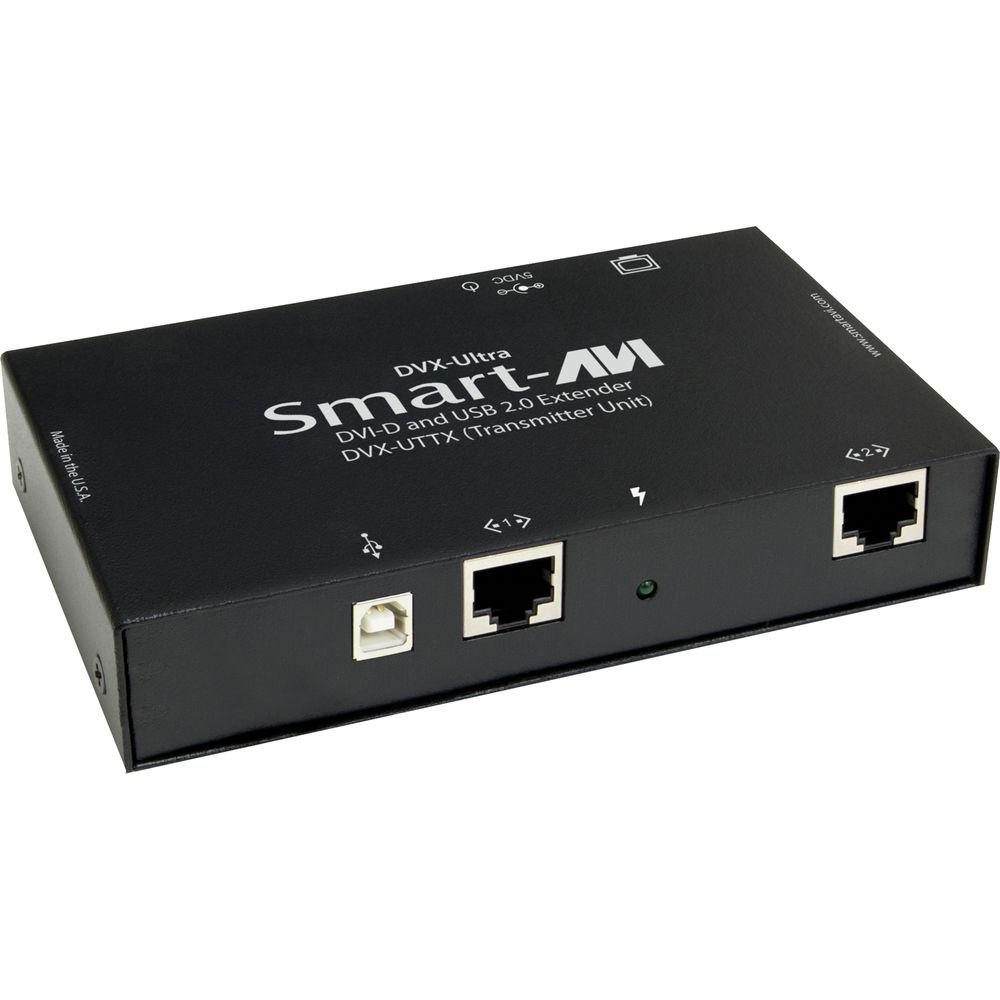

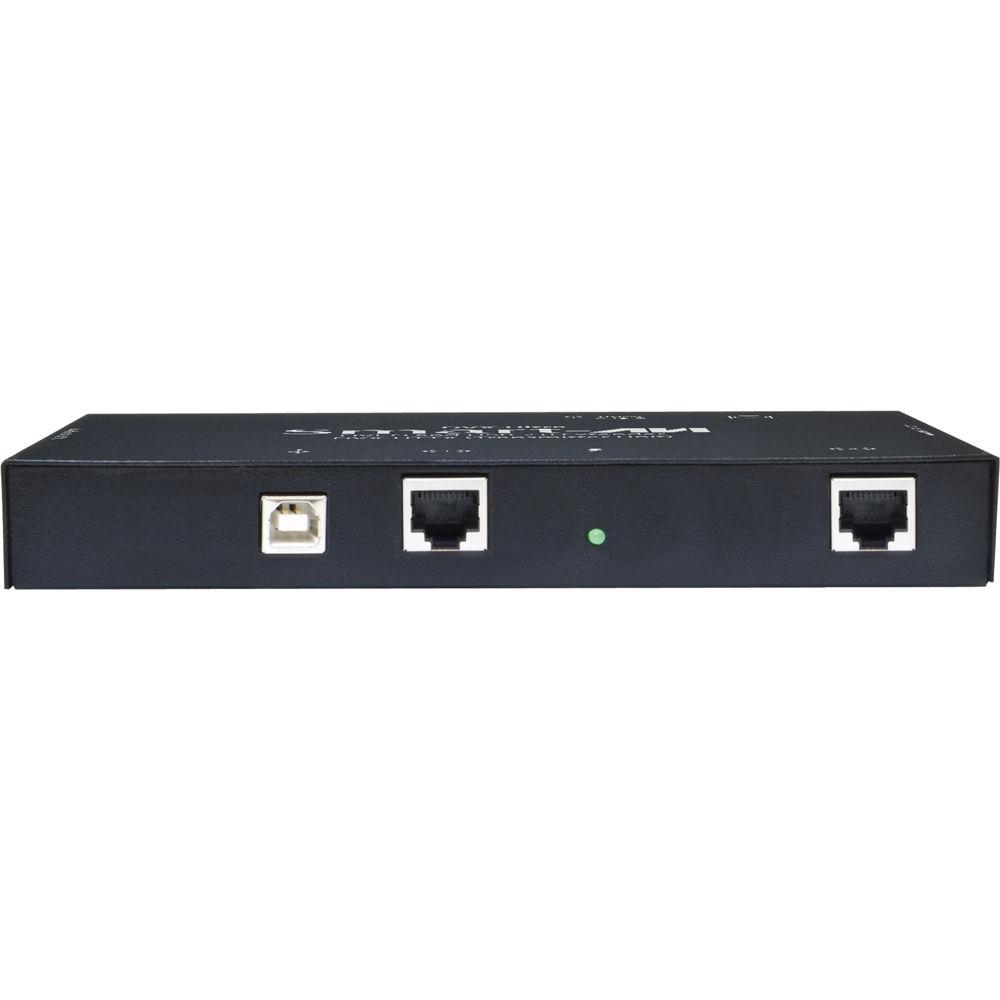

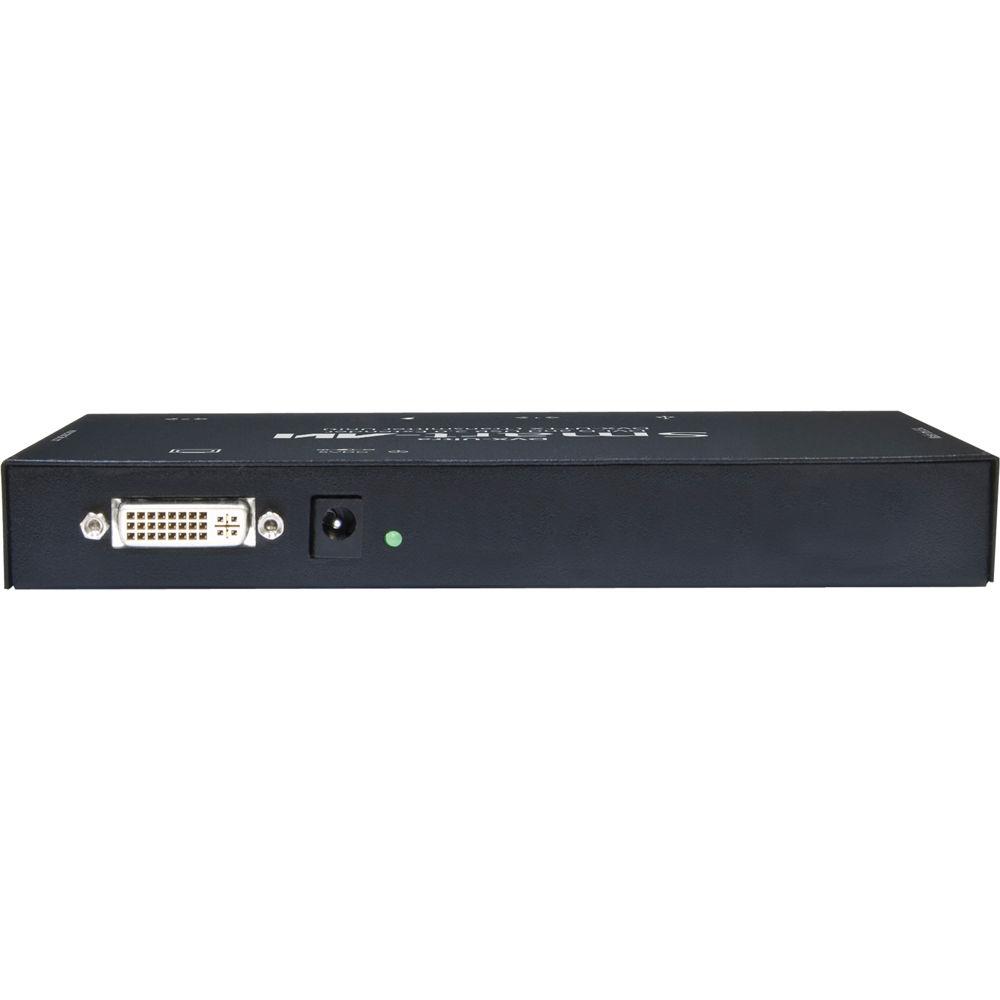

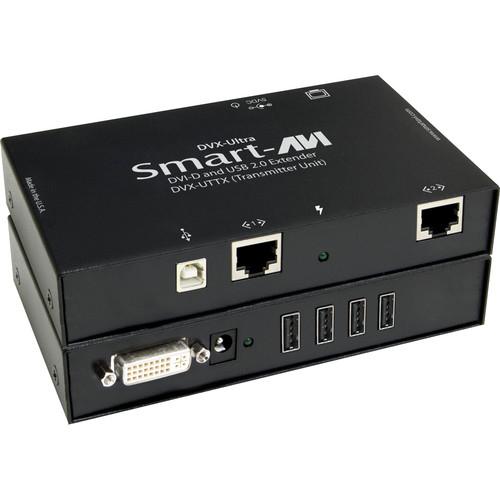

Product description The DVX-UTTX DVI-D/USB over Dual CAT6 Extender Transmitter Unit from Smart-AVI extends a DVI input along with a USB input by up to 250' over two CAT6 cables. The DVI signal can be carried over alone. The USB transmission is voluntary. Its purpose is to enable USB functionality in the separately-sold DVX-Ultra DVX-UTRX receiver that the transmitter connects to. The receiver has, in addition to a DVI output, four USB outputs for connecting to keyboards, mice, and other interface devices. The transmitter supports resolutions of up to 1920x1200, and features a plug-and-play functionality. It is compatible with all operating systems, and it is compliant with all USB 1.1 and 2.0 specifications.
Note: A CAT6 STP cable is required for transmitting the DVI signal, and an unshielded CAT6 can be used for the USB signal. - Extends a DVI and a USB signal 250 feet over two CAT6 cables
- The USB transmission enables a receiver to connect to interface devices
- Features plug-and-play functionality and is compatible with all operating systems
- Supports resolutions up to 1920x1200. Compliant with all USB 1.1 and 2.0 specifications
In the Box Smart-AVI DVX-UTTX DVI-D/USB over Dual CAT6 Extender Transmitter Unit Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI DVX-UTTX DVI-D USB over Dual CAT6 Extender Transmitter Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DVX-UTTXS Specs | Video Format | DVI-D | | Maximum Pixel Clock | 165 MHz | | Inputs | 1 x DVI-D 29-pin female
1 x USB type B | | Outputs | 2 x RJ45
1 x DVI-D 29-pin female | | Supported Resolutions | Up to 1920 x 1200 @60Hz | | DDC | 5 volts p-p (TTL) | | Input Equalization | Automatic | | Input Cable Length | Up to 20' (6 m) | | Max CAT Cable Distance | 250' over CAT6 STP (76 m) | | Signaling | USB 2.0, 1.1 and 1.0 | | Power | External 100-240 VAC / 5 VDC 4 A @ 20 W | | Operating Temperature | 32 - 131°F (0 - 55°C) | | Storage Temperature | -4 - 185°F (-20 - 85°C) | | Humidity | Up to 95% | | Approvals | UL, CE, ROHS compliant | | Emulation | Fully transparent - No USB emulation | | Dimensions | 6.25 x 1.00 x 3.50" (15.88 x 2.54 x 8.89 cm) | | Weight | 1 lb (0.45 kg) |
