User Manual for Smart-AVI EDID-Mirror-4P Click to enlarge the picture
Contents of the user manual for the Smart-AVI EDID-Mirror-4P
- Product category: EDID Emulators Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI EDID Emulators
 |
User manual for the Smart-AVI EDID-Mirror-4P contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

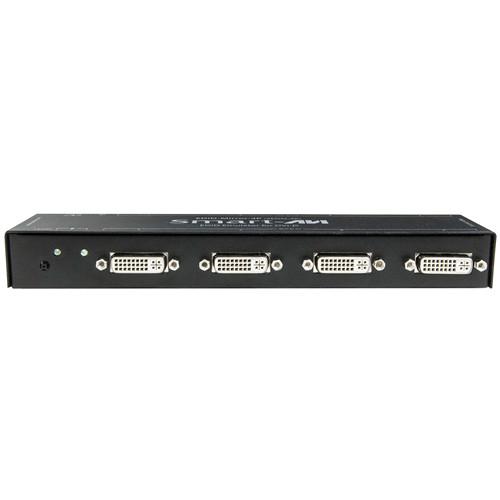

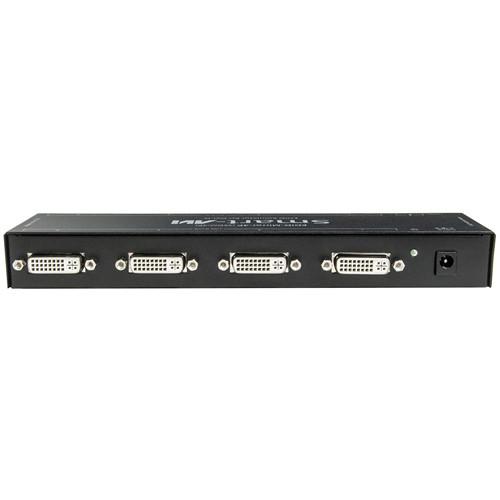

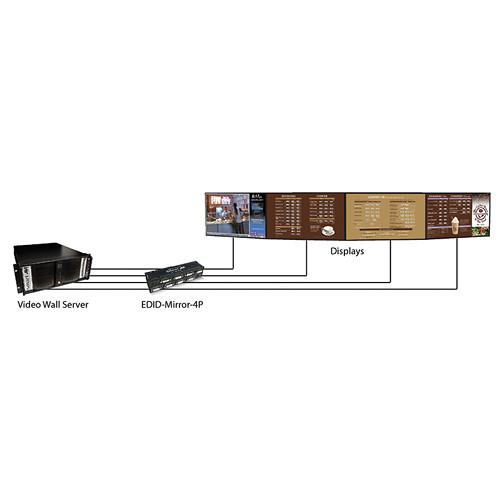

Product description The EDID-Mirror-4P from Smart AVI is an EDID (Extended Display Identification Data) emulator that prevents Windows 7, XP and Linux from auto configuring your displays if your computer is started up with the displays disconnected or turned off. It provides a constant signal to the computer, whether the display is present or not to ensure the configuration isn't lost. - Learns up to four EDID configurations at once
- Stores EDID configuration in non-volatile memory so that the unit can be powered off and the configuration won't be lost
- Display can be disconnected as needed without losing EDID configuration
- Uses standard EDID configuration standards
- Compatible with most DVI-D displays and all Windows versions
UPC: 813280017565 In the Box Smart-AVI EDID-Mirror-4P Power Supply 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI EDID-Mirror-4P in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI EDID-MIRROR-4PS Specs | Format | DVI-D Single Line | | Maximum Pixel Clock | 165 MHz | | Input/Output | 4 x DVI-D 29 pin female | | Resolution | Up to 1920 x 1200 @ 60 Hz | | DDC | 5 volts p-p (TTL) | | TDMS Signal | 1.2 volts p-p, TTL | | Input Equalization | Automatic | | Input Cable Length | Up to 10' (3 m) | | Output Cable Length | Up to 10' (3 m) | | Approvals | UL, CE | | RoHS Compliant | Yes | | Power | External 100-240 VAC/5VDC2A @10W | | Dimensions (WxDxH) | 3.25 x 3.0 x 1.75" (8.3 x 7.6 x 4.4 cm) | | Weight | 3.2 oz (91 g) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.7 x 5.3 x 4.1" |
