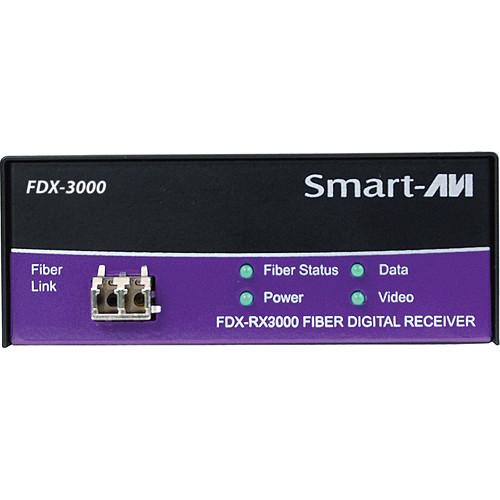

User Manual for Smart-AVI FDX-3000 Single Multimode Fiber Extender Click to enlarge the picture
Contents of the user manual for the Smart-AVI FDX-3000 Single Multimode Fiber Extender
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
 |
User manual for the Smart-AVI FDX-3000 Single Multimode Fiber Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

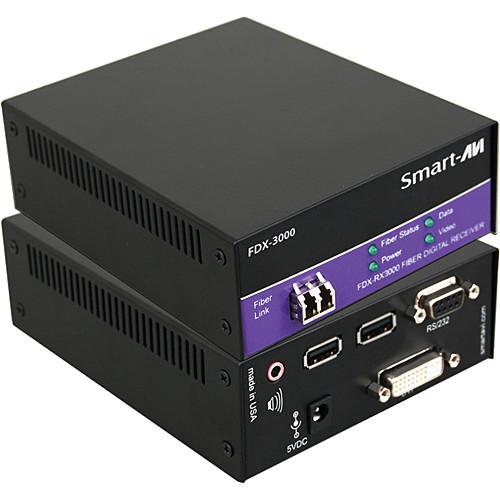

Product description The Smart-AVI FDX-3000 Single Multimode Fiber Extender with Power Supply is a versatile long-distance digital signage and KVM signal extender that includes a transmitter and receiver and is capable of transferring HDTV video up to 1920 x 1200 (60Hz) and 1280 x 1024(75Hz) over a single multimode fiber optic cable. Featuring a customizable and programmable DDC table, the FDX-3000 features full support of PS/2 mice, keyboards, and RS-232 signals from 300 to 115,000 bps. Equipped with DVI-D connectors for a single-link and optional keyboard and mouse, the FDX-3000 Extender is capable of extending KVM data, stereo audio, high-resolution DVI-D video, and RS-232 control signals at distances of up to 1400' without visible or audible signal loss. Housed in a compact metal casing, the FDX-3000 Extender is used for seamless integration into any network or component configuration and is compatible with all operating systems and major KVM switches. It uses an LC connector for fiber cables and includes 2 power supply units. The Extender can be used in financial institutions (offering user control to remote servers), call centers, industrial locations (for isolated long-range workstations), information terminals/kiosks, and airport installations (for air traffic control or passenger information), and medical institutions (for remote operation away from sensitive/magnetic equipment). It can also be used for recording in large studios with compact editing/mixing stations that require complete silence or as a KVM extension where high signal quality is crucial. - Versatile long-distance digital signage and KVM signal extender that includes a transmitter and receiver
- Transmits HDTV video up to 1920 x 1200 (60Hz) and 1280 x 1024 (75Hz) over a single multimode fiber optic cable
- Features a customizable and programmable DDC table
- Offers full support for PS/2 mice, keyboards, and RS-232 signals from 300 to 115,000 bps

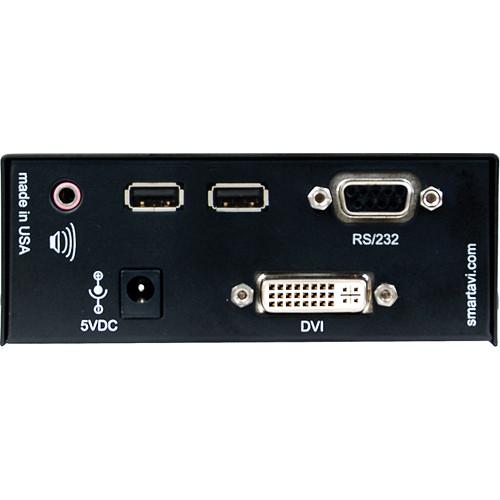

- Equipped with DVI-D connectors for single-link and optional keyboard and mouse
- Includes a transmitter and receiver that is capable of extending KVM data, stereo audio, high-resolution DVI-D video and RS-232 control signals at distances up to 1400', without visible or audible signal loss
- Housed in a compact metal casing and offers seamless integration with all operating systems and major KVM switches
- LC connector for fiber cables and includes 2 power supply units
- Suitable for use in financial institutions (offering user control to remote servers), call centers, industrial locations (for isolated long-range workstations), information terminals/kiosks, and airport installations (for air traffic control or passenger information), medical institutions (for remote operation away from sensitive/magnetic equipment)
- Also used for recording in large studios with compact editing/mixing stations that require complete silence or as a KVM extension where high signal quality is crucial
UPC: 813280017596 In the Box Smart-AVI FDX-3000 Single Multimode Fiber Extender FDX-TX3000 Multimode Transmitter FDX-RX3000 Multimode Receiver 2 x Power Supply (PS5VD3A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FDX-3000 Single Multimode Fiber Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI FDX-3000S Specs | | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 1476' / 450 m | | Transmission Method | Multimode Cable | | Audio Channels Supported | 2-Channel Stereo | | Impedance | 10K Ohms (Audio) | | RS232 Data Rate | 115 kbps | | Programmable DDC Table | Yes | | | | Bandwidth | 15 MHz at 0 dB (Audio) | | | | Dimensions | 4.5 x 5.5 x 1.7" / 114.0 x 140.0 x 43.0 mm | | Weight | 8.0 lb / 3.6 kg |
