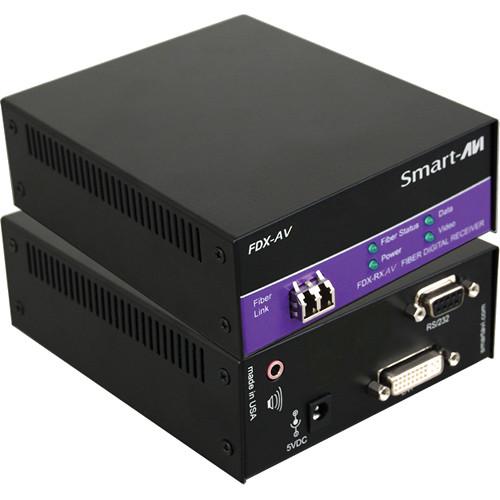

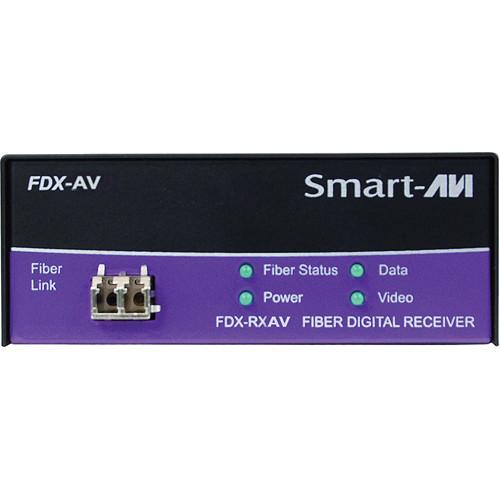

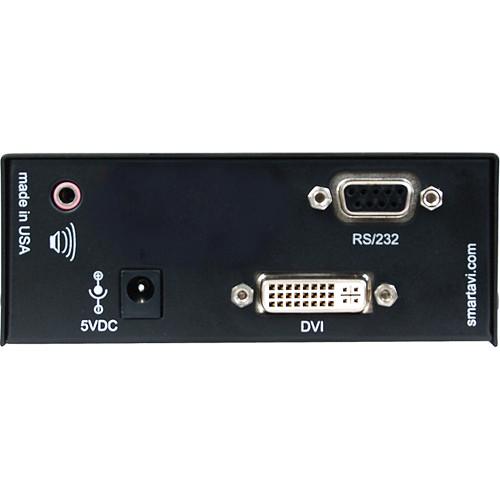

Product description The Smart-AVI FDX-AVS Multimode Fiber Extender with Power Supply is a versatile long-distance digital signage and multimedia presentation extender that includes a transmitter and receiver and is capable of transferring HDTV video up to 1920 x 1200 (60Hz) and 1280 x 1024(75Hz) over a multimode fiber optic cable. Featuring a customizable and programmable DDC table, the FDX-AVS features support for RS-232 signals from 300 to 115,000 bps. Equipped with DVI-D connectors for a single-link and optional keyboard and mouse, the FDX-AVS Extender is capable of extending stereo audio, high-resolution DVI-D video, and RS-232 control signals at distances of up to 1400' without visible or audible signal loss. Housed in a compact metal casing, the FDX-AVS extender is used for seamless integration into any network or component configuration and is compatible with all operating systems and major KVM switches. It uses an LC connector for fiber cables and includes 2 power supply units. The Extender can be used in financial institutions (offering user control to remote servers), call centers, industrial locations (for isolated long-range workstations), information terminals/kiosks, and airport installations (for air traffic control or passenger information), and medical institutions (for remote operation away from sensitive/magnetic equipment). - Versatile long-distance digital signage and multimedia presentation extender that includes a transmitter and receiver
- Transmits HDTV video up to 1920 x 1200 (60Hz) and 1280 x 1024 (75Hz) over a multimode fiber optic cable
- Features a customizable and programmable DDC table
- Offers support for RS-232 signals from 300 to 115,000 bps
- Equipped with DVI-D connectors for single-link and optional keyboard and mouse
- Includes a transmitter and receiver that is capable of extending stereo audio, high-resolution DVI-D video and RS-232 control signals at distances up to 1400', without visible or audible signal loss
- Housed in a compact metal casing and offers seamless integration with all operating systems
- Includes LC connector for fiber cables and 2 power supply units
- Suitable for use in financial institutions (offering user control to remote servers), call centers, industrial locations (for isolated long-range workstations), information terminals/kiosks, and airport installations (for air traffic control or passenger information), medical institutions (for remote operation away from sensitive/magnetic equipment)
In the Box Smart-AVI FDX-AVS Multimode Fiber Extender with Power Supply Multimode Transmitter (FDX-TXAV) Multimode Receiver (FDX-RXAV) 2 x Power Supply (PS5V3A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FDX-AVS Multimode Fiber Extender with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI FDX-AVS Specs | | | Ports | Transmitter:
1 x DVI Female (Input)
1 x 3.5 mm Audio (Input)
1 x DB9 RS232 (Input)
1 x LC (Output)
Receiver:
1 x 3.5 mm Audio (Output)
1 x DB9 RS232 (Output)
1 x DVI Female (Output)
1 x LC Fiber (Input) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 1476' / 450 m | | Transmission Method | Multimode Cable | | Audio Channels Supported | 2-Channel Stereo | | Impedance | 10K Ohms | | RS232 Data Rate | 115 kbps | | Programmable DDC Table | Yes | | | | Bandwidth | 15 MHz at 0 dB (Audio) | | | | DC Input Power | 5 VDC at 3 A | | | | Dimensions | 4.5 x 5.5 x 1.7" / 114.0 x 140.0 x 43.0 mm | | Weight | 8.0 lb / 3.6 kg |
