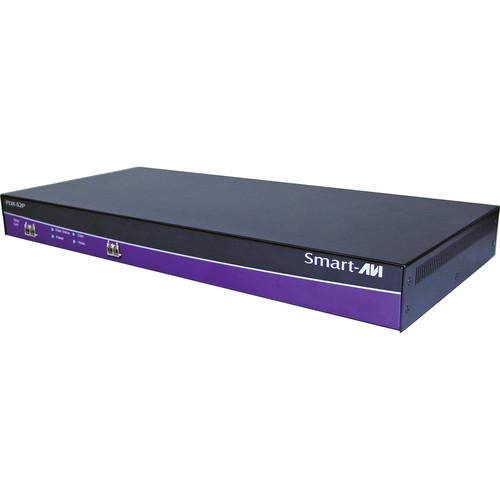

User Manual for Smart-AVI FDX-S2P Fiber Extender with Power Supply Click to enlarge the picture
Contents of the user manual for the Smart-AVI FDX-S2P Fiber Extender with Power
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI FDX-S2P Fiber Extender with Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The SmartAVI FDX-S2P Fiber Extender with Power Supply is a versatile long-distance DVI-D and KVM signal extender that includes a transmitter and receiver and is capable of transferring HDTV video over 2 single-mode fiber optic cables. Featuring a customizable and programmable DDC table and 2 DVI-D connectors, the unit can extend KVM data, stereo audio, 2 high-resolution DVI-D video, and RS-232 control signals at distances of up to 10 miles without visible or audible signal loss. Controlled via a local keyboard and mouse, the FDX-S2P Extender is used for seamless integration into any network or component configuration and is compatible with all operating systems and major KVM switches. It offers support for USB keyboards, mice, and touch screens and comes with 2 power supply units. It also supports WUXGA (Widescreen Ultra-extended Graphics Array) that has a display resolution of 1920 x 1200 pixels (60 Hz) with a 16:10 screen aspect ratio. It uses a fiber plug type LC connector for fiber cables. - Versatile long-distance DVI-D and KVM signal extender that includes a transmitter and receiver and transmits HDTV video up to 1920 x 1200 (60 Hz) over 2 single-mode fiber optic cables
- Includes customizable and programmable DDC table and 2 DVI-D connectors
- Extends KVM data, stereo audio, 2 high-resolution DVI-D video and RS-232 control signals at distances up to 10 miles without visible or audible signal loss
- Can be controlled via a local keyboard and mouse
- Offers seamless integration into any network or component configuration and is compatible with all operating systems and major KVM switches
- Supports all USB keyboards, mice, and touch screens and includes 2 power supply units (PS5V4A)
- Supports WUXGA (Widescreen Ultra-extended Graphics Array) that has a display resolution of 1920 x 1200 pixels with a 16:10 screen aspect ratio
- Uses fiber plug type LC connector for fiber cables
- Includes 2 power supply units
In the Box Smart-AVI FDX-S2P Fiber Extender with Power Supply Transmitter (FDX-TXS2P) Receiver (FDX-RXS2P) 2 x Power Supply (PS5V4A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FDX-S2P Fiber Extender with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI FDX-S2PS Specs | | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 10 mi / 16 km | | Transmission Method | Singlemode Cable | | Programmable DDC Table | Yes |
