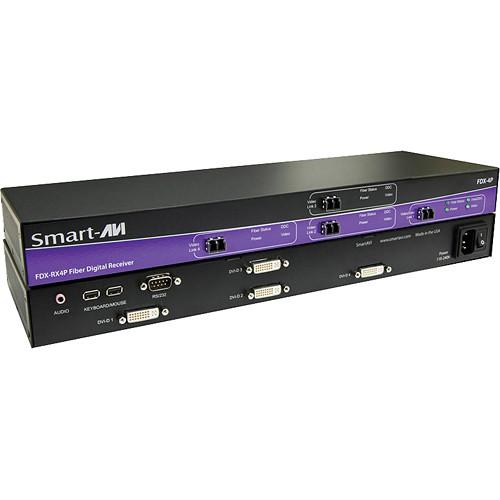

Product description The Smart-AVI FDX-S4U Single-Mode Quad DVI-D Extender is a transmitter and receiver set that extends four DVI-D signals along with audio and with USB keyboard and mouse signals, and with RS-232 control, by up to 10 miles over four single-mode fiber optic cables.
The transmitter connects to a computer by four DVI inputs and by single USB, stereo audio, and RS-232 inputs, and it sends the input signals over to the receiver. The purpose of the USB transmission is to enable USB functionality in the receiver, which can thus, in addition to outputting video via four DVI outputs, also connect to a keyboard and to a mouse by two USB outputs. And the entire system can be controlled by RS-232.
The system supports resolutions up to 1920 x 1200 WUXGA at 60Hz, and it achieves zero pixel loss with TMDS signal correction. It features plug-and-play functionality and is compatible with all operating systems. It is compliant with all USB 1.1 specifications for keyboard and mouse connections, and it uses universal single link DVI connectors and supports Mac, PC, and Linux DVI. It has a customizable and programmable DDC table for Macs and for PCs. It is compatible with all major KVM switches. And it can be used in a desktop setting or can be 1RU rack-mounted.
The advantages of using fiber optic cables are that they have a capacity to transfer over very long distances without signal loss, they are immune to electromagnetic interference, and they cannot be tapped and are therefore secure. - Extends 4 DVI-D signals, USB functionality, audio, and RS-232 control.
- Carries signals up to 10 miles securely over 4 single-mode fiber optic cables.
- Supports USB 1.1 specs, and Mac, PC, and Linux DVI, and all major KVM switches.
- Supports resolutions up to 1920 x 1200 WUXGA, and achieves zero pixel loss with TMDS.
- Plug-and-play capable, compatible with all operating systems, and features a Mac/PC DDC table.
In the Box Smart-AVI FDX-S4U Single-Mode Quad DVI-D Extender 2 x Power Supply 1-Year Warranty Brochure PDF 866.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FDX-S4U Single-Mode Quad DVI-D Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI FDX-S4U Specs | | | Ports | Transmitter:
4 x DVI-D Female (Input)
1 x USB Type-B USB 1.1 Female (Input)
1 x 3.5 mm Audio Female (Input)
1 x DB9 RS232 (Input)
4 x LC (Output)

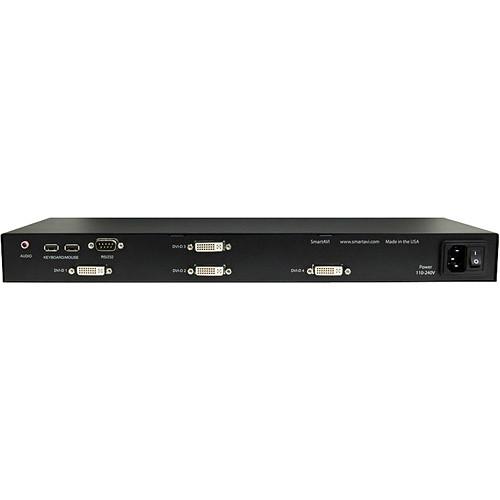

Receiver:
4 x LC (Input)
4 x DVI-D (Output)
2 x USB Type-A USB 1.1 (Output)
1 x 3.5 mm Audio (Output)
1 x DB9 RS232 (Output) | | Supported Resolutions | 1920 x 1200 @ 60 Hz | | Maximum Transmission Distance | 10 mi / 16 km | | Transmission Method | Singlemode Cable | | Impedance | 10K Ohms (Audio) | | RS232 Data Rate | 115 kbps | | Programmable DDC Table | Yes | | | | Bandwidth | 15 MHz at 0 dB (Audio) | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 0 to 95% | | | | Cable Length | 10' / 3 m | | Dimensions | 17.0 x 7.0 x 1.8" / 43.2 x 17.8 x 4.4 cm (Transmitter)
17.0 x 7.0 x 1.8" / 43.2 x 17.8 x 4.4 cm (Receiver) | | Weight | 8.0 lb / 3.6 kg (Transmitter)
8.0 lb / 3.6 kg (Receiver) |
