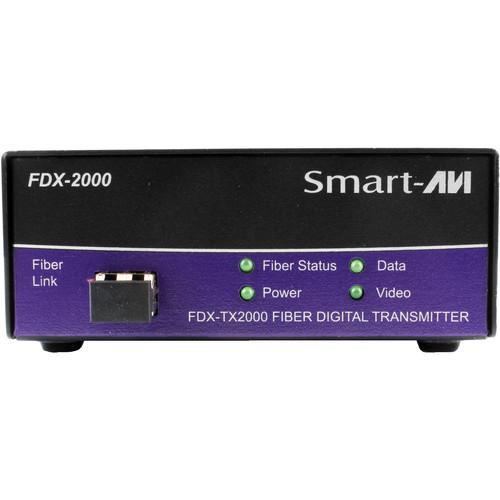

User Manual for Smart-AVI FDX-TX2000S KVM DVI-D over Multimode Fiber Extender Click to enlarge the picture
Contents of the user manual for the Smart-AVI FDX-TX2000S KVM DVI-D over Multimode
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI FDX-TX2000S KVM DVI-D over Multimode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The FDX-TX2000S from Smart-AVI is a KVM over multimode fiber transmitter designed to work with the FDX-RX2000s receiver (sold separately) to extend keyboard, mouse, audio, DVI-D, and RS-232 signals up to 1,400'. A single multimode fiber optic cable is used for interconnecting the two extender units. This transmitter supports resolutions of 1920 x 1200 at 60 Hz and 1280 x 1024 at 75 Hz. Typical applications include use in corporate & educational presentations, financial remote servers, call centers, long-range industrial workstations, information terminals & kiosks, airport installations, medical installations, and recording studios. - Maximum extension of 1,400' over multimode fiber
- Customizable/programmable DDC table
- Supports PS/2 keyboard & mouse, stereo audio, DVI-D
- Fully transparent operation with all PC/AT and PS/2 keyboards
- Supports RS-232 control from 3.6 b/s to 115 kb/s
- Fiber plug type LC, multimode
- Compatible with all operating systems
- Compatible with most popular KVM switches
UPC: 813280021425 In the Box Smart-AVI FDX-TX2000S KVM DVI-D over Multimode Fiber Extender (Transmitter Only) Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FDX-TX2000S KVM DVI-D over Multimode Fiber Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI FDX-TX2000S Specs | Resolution | 1920 x 1200 at 60 Hz
1280 x 1024 at 75 Hz | | Transmission Range | 738.2' (225 m) over multimode 62.5u
1,476.4' (450 m) over multimode 50u | | Serial Control | Data Rate: 3.6 b/s - 115 kb/s | | Connectors | 1 x 9-pin D-sub female, RS-232 serial control
1 x Duplex LC connector, interface
1 x 3.5 mm stereo phone jack, audio input
1 x DVI-D female, video input
2 x PS/2, keyboard and mouse output | | DDC | Internal table can be re-programmed | | Bandwidth | 15 MHz, 0 dB | | Impedance | 10 kOhms | | Power | 5 VDC, 4 A | | Dimensions | 4.5 x 5.5 x 1.7" (11.4 x 14.0 x 4.3 cm) | | Weight | 0.5 lb (0.2 kg) |
