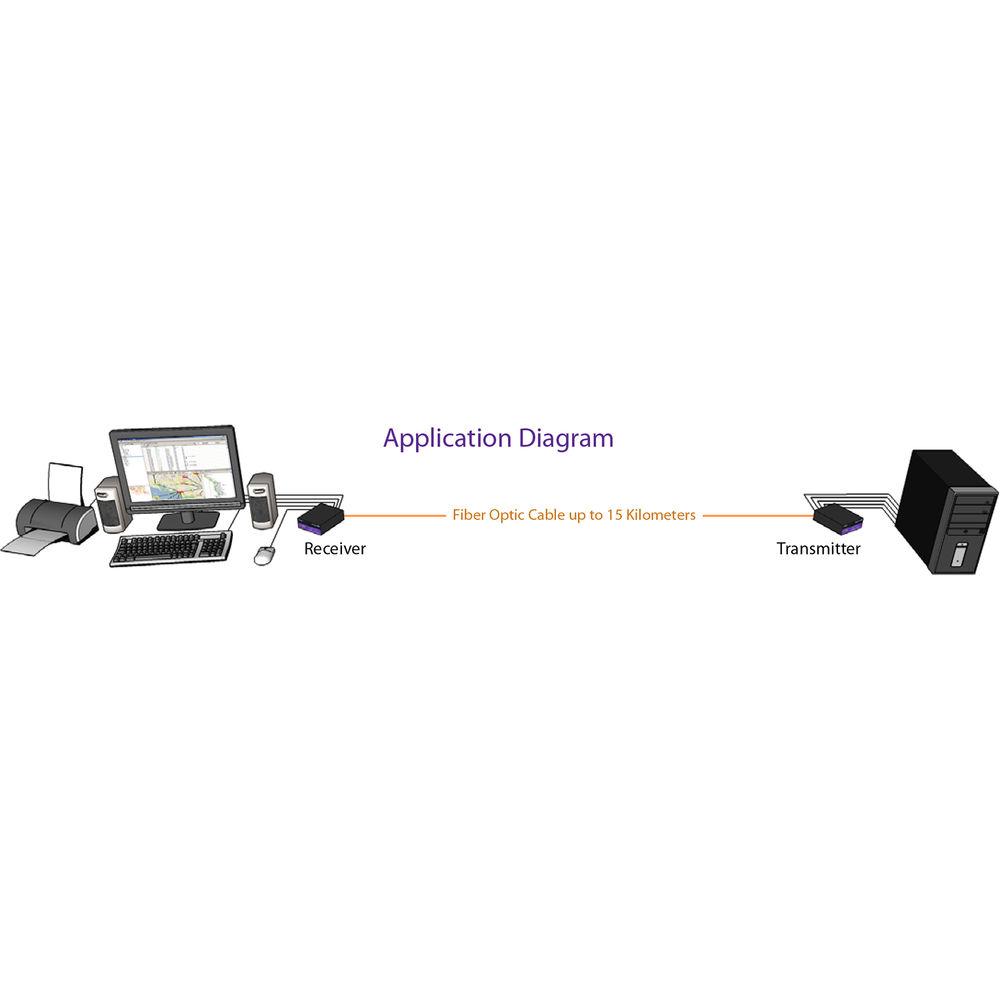

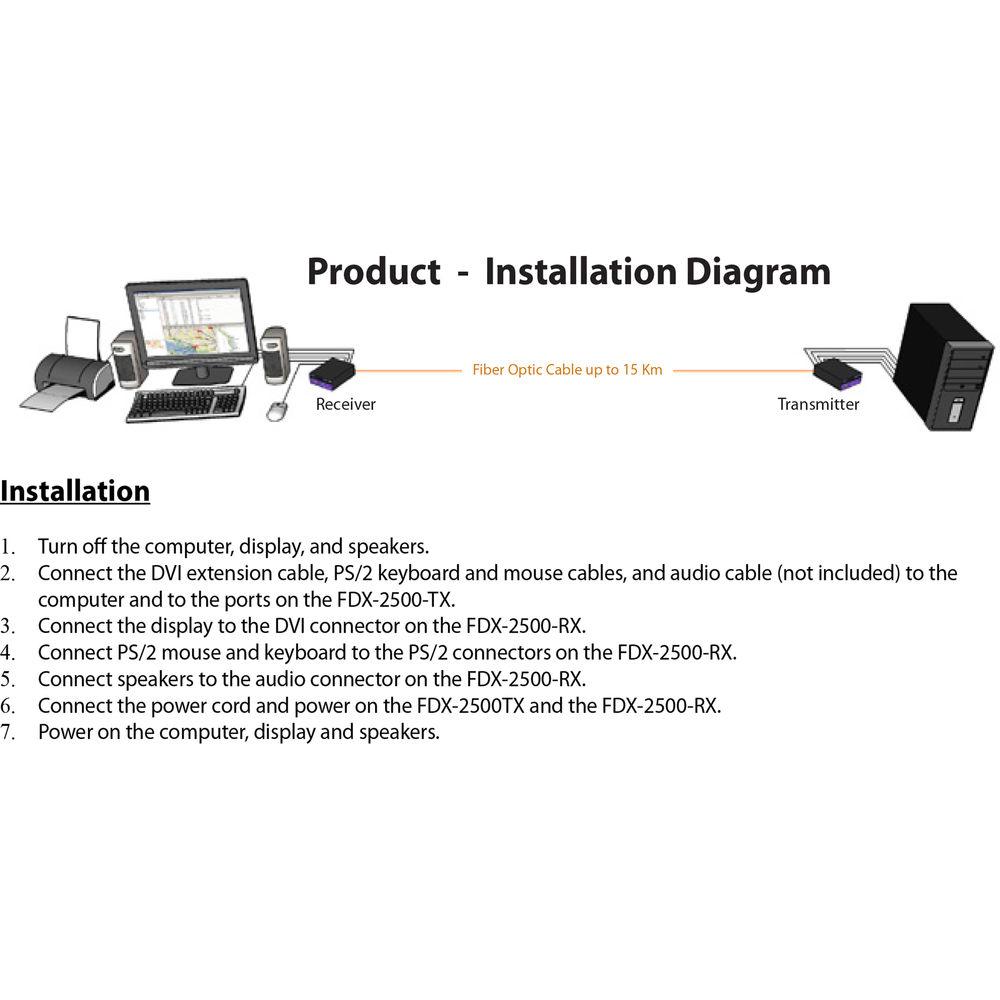

Product description The FDX-TX2500S from Smart-AVI is a KVM over singlemode fiber transmitter designed to work with the FDX-RX2500S receiver (sold separately) to extend keyboard, mouse, audio, DVI-D, and RS-232 signals up to 9 miles. A single singlemode fiber optic cable is used for interconnecting the two extender units. This transmitter supports resolutions of 1920 x 1200 at 60 Hz and 1280 x 1024 at 75 Hz. Typical applications include use in corporate & educational presentations, financial remote servers, call centers, long-range industrial workstations, information terminals & kiosks, airport installations, medical installations, and recording studios. - Maximum extension of 9 miles over singlemode fiber
- Customizable/programmable DDC table
- Supports PS/2 keyboard/mouse, stereo audio, and DVI-D
- Fully transparent operation with all PC/AT and PS/2 keyboards
- Supports RS-232 control from 300 b/s to 115 kb/s
- Fiber plug type LC, singlemode
- Compatible with all operating systems
- Compatible with most popular KVM switches
In the Box Smart-AVI FDX-TX2500S KVM DVI-D over Singlemode Fiber Extender (Transmitter Only) PS5VD4A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FDX-TX2500S KVM DVI-D over Singlemode Fiber Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

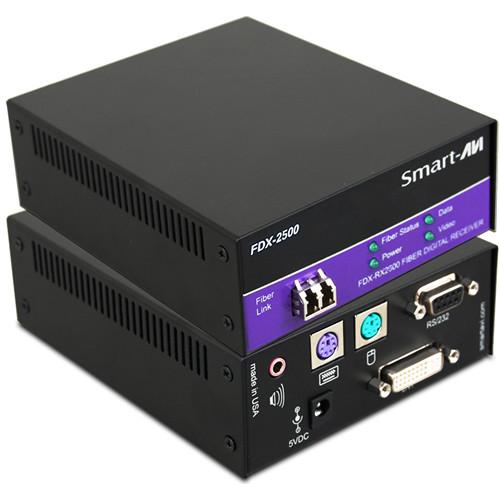

Technical parametersSmart-AVI FDX-TX2500S Specs | Resolution | 1920 x 1200 at 60 Hz
1280 x 1024 at 75 Hz | | Transmission Range | 9 mi (15 km) | | Serial Control | Data Rate: Up to 115 kb/s | | Connectors | 1 x 9-pin D-sub female, RS-232 serial control

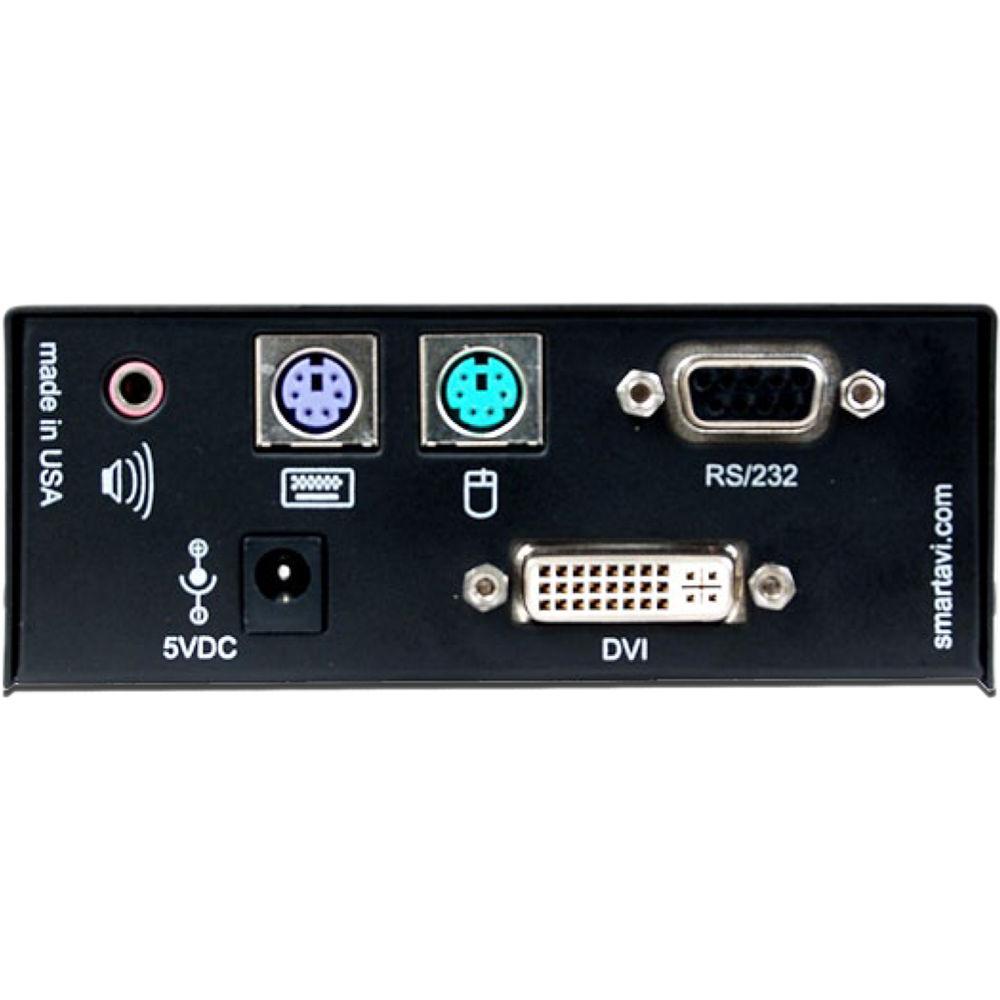

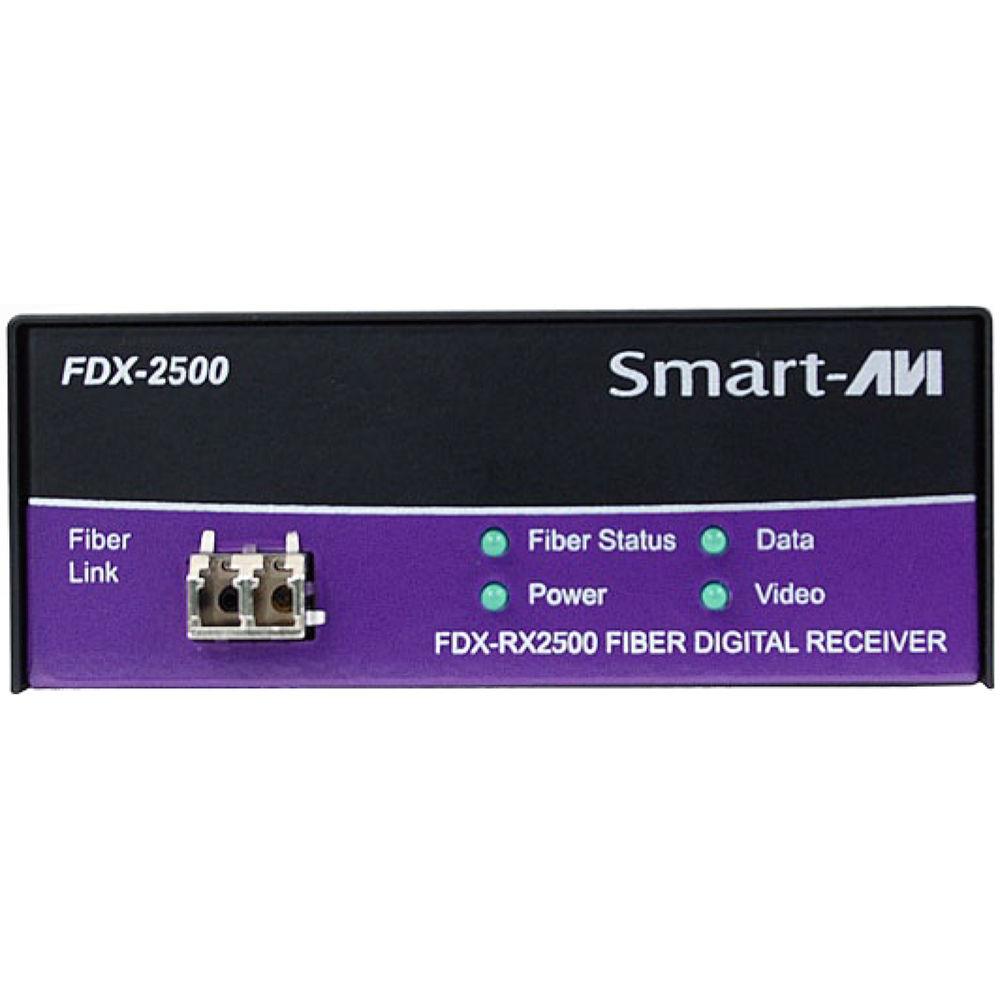

1 x Duplex LC connector, interface
1 x 3.5mm stereo phone jack, audio input
1 x DVI-D female, video input
2 x PS/2, keyboard & mouse output | | DDC | Internal table can be re-programmed | | Bandwidth | 15 MHz, 0 dB | | Impedance | 10 kOhms | | Wavelength | 1310 nm | | Compliance | Laser class 1
En60825-1 | | Power | 5 VDC, 4 A | | Dimensions | 4.5 x 5.5 x 1.7" (11.4 x 14.0 x 4.3 cm) | | Weight | 0.5 lb (0.2 kg) |
