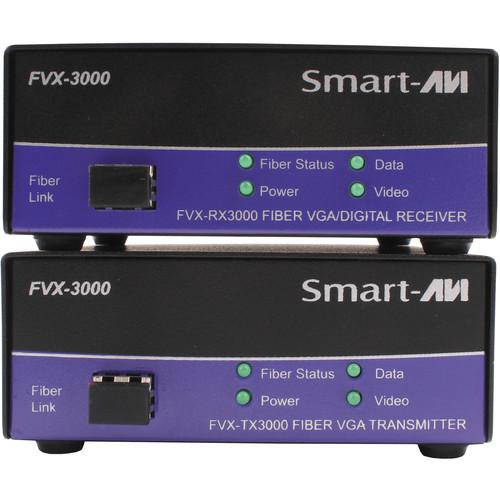

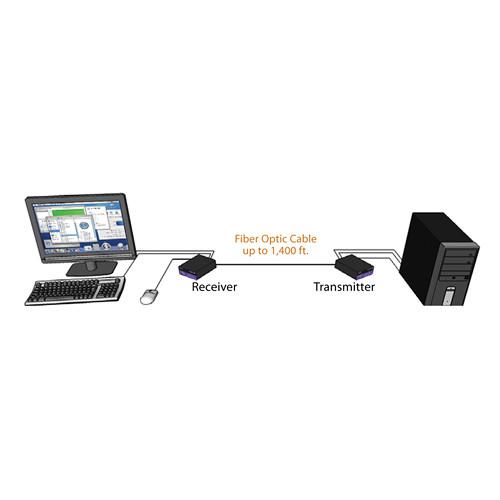

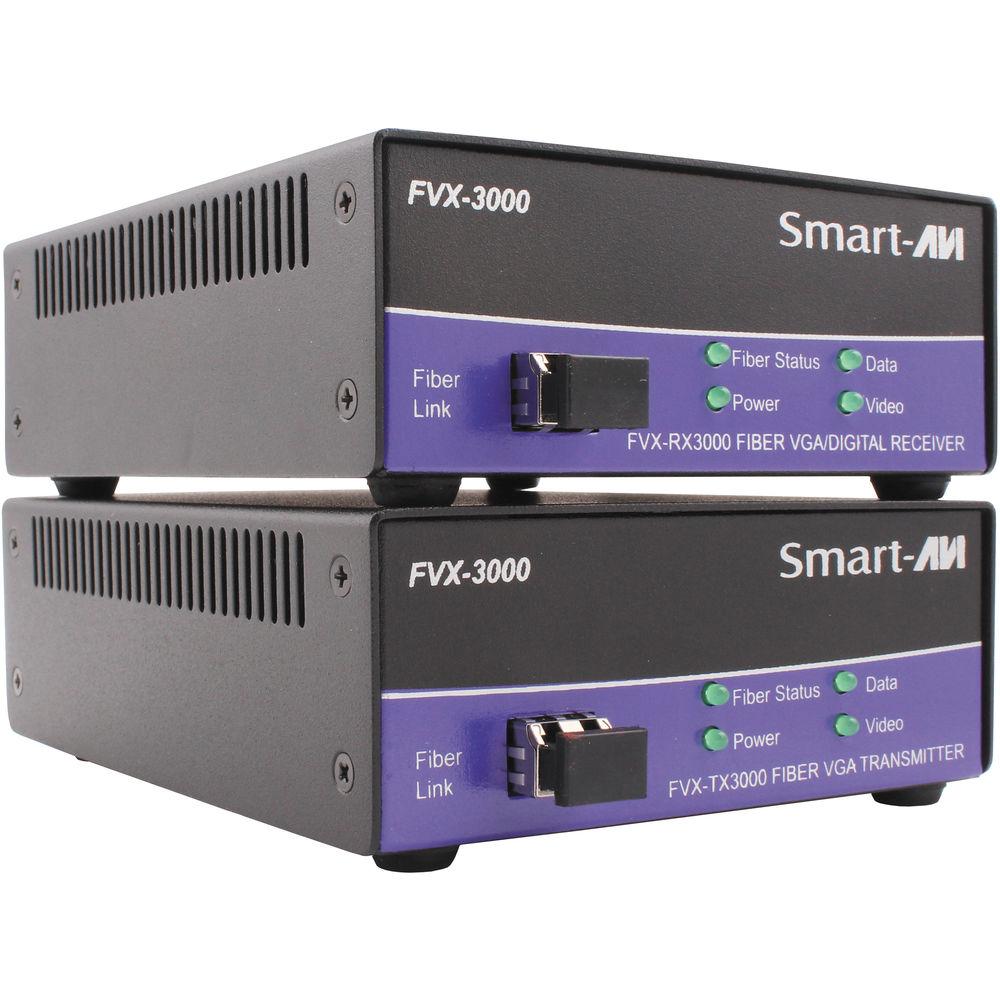

Product description The FVX-3000S Multimode Fiber Extender from Smart-AVI consists of a transmitter and receiver that extend KVM, VGA, audio, and RS-232 signals. It is a professional quality device capable of extending signals up to 1400' over a single multimode fiber optic cable. Fiber optic transmission over long distances is virtually immune to electromagnetic interference, ensures no signal loss, is safe (cannot be easily tapped), and allows routing through small spaces. - Maximum 1400' extension over multimode fiber
- Superior image quality at all resolutions
- Supports video resolutions up to 1920 x 1200 at 60 Hz and 1280 x 1024 at 75 Hz
- Customizable/programmable DDC table
- Supports USB keyboard/mouse
- Supports stereo audio and VGA
- Supports RS-232 control from 300 b/s to 115 kb/s
- Supports all USB keyboards
- Compatible with all operating systems
- Compatible with all major KVM switches
Applications - Corporate or educational presentations
- Financial (remote servers/user control)
- Industrial (long-range workstation isolation)
- Information terminals/kiosks
- Airport installations (air traffic control/passenger information)
- KVM extension where exceptional quality of signal is crucial
- Medical (remote operation away from sensitive/magnetic equipment)
- Recording (for large studios where editing/mixing stations are compact and/or require complete silence)
In the Box Smart-AVI FVX-3000S Multimode Fiber Extender FVX-TX3000 Transmitter Unit FVX-RX3000 Receiver Unit PS5V3A 5V, 3A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FVX-3000S Multimode Fiber Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

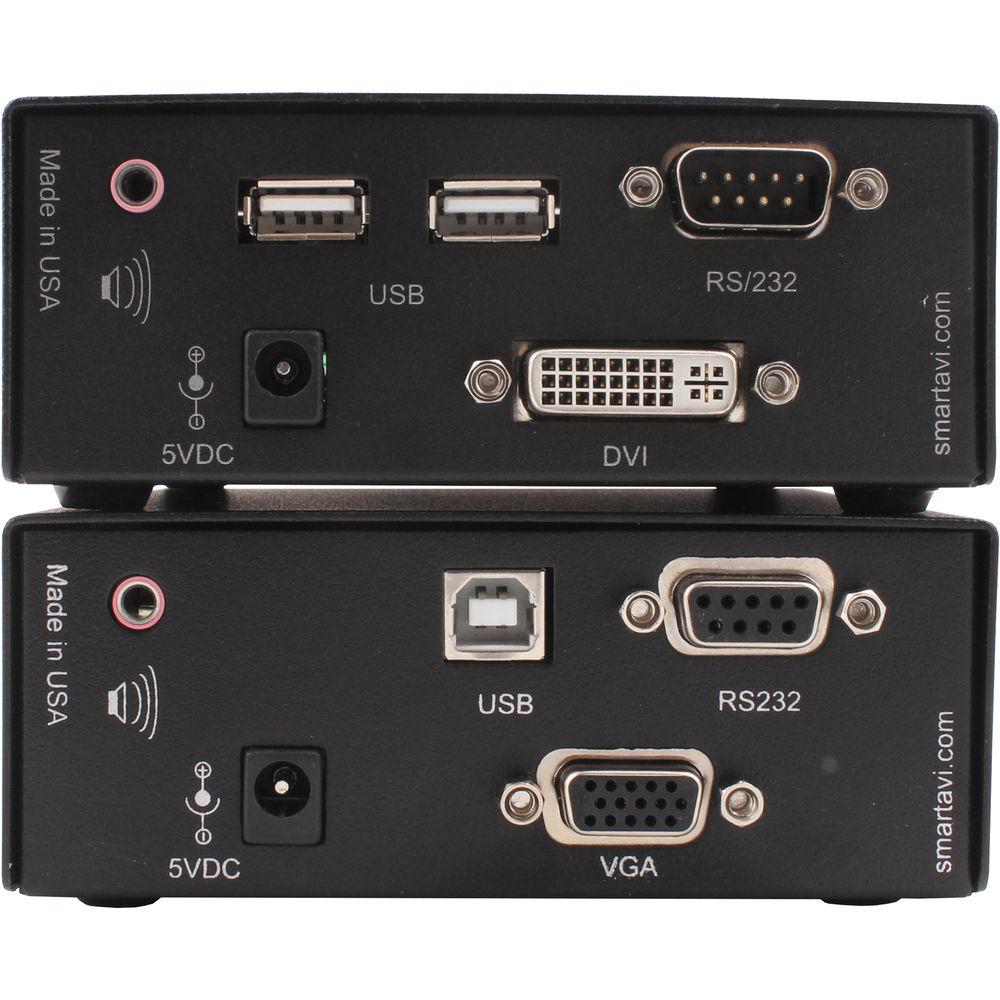

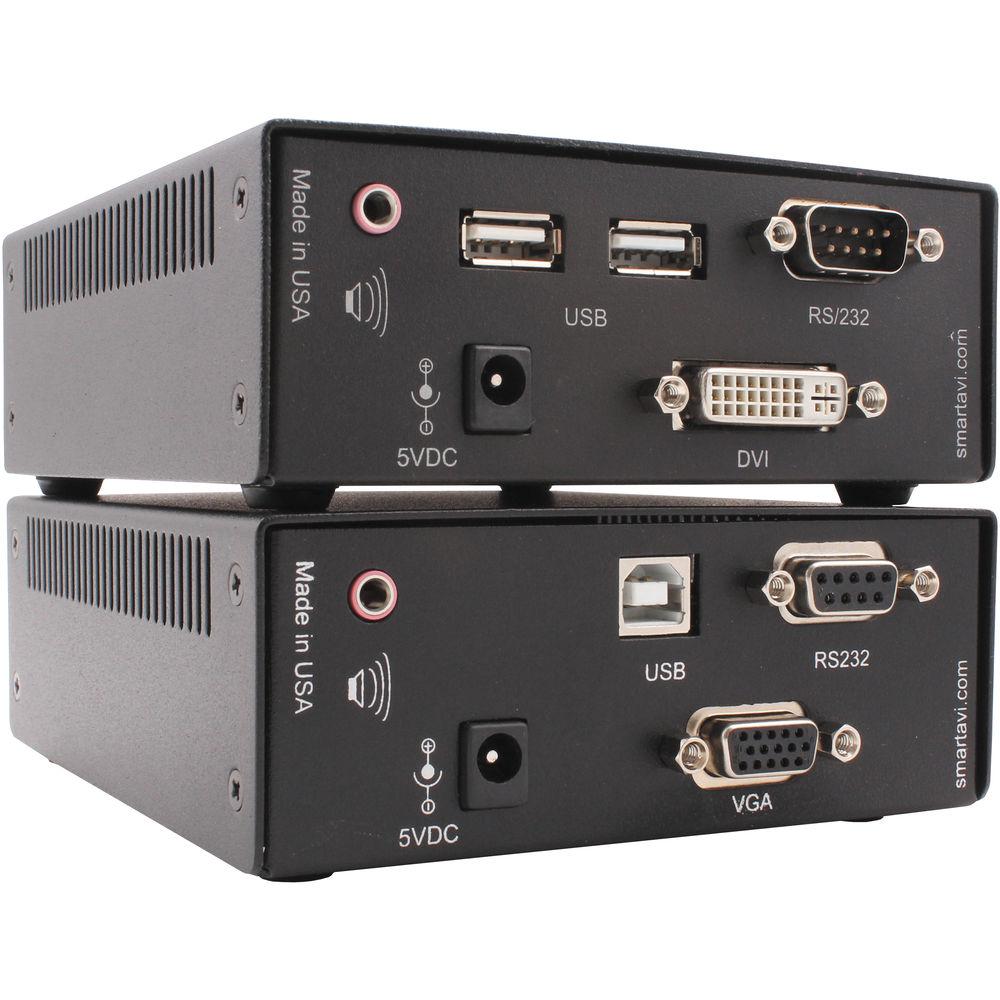

Technical parametersSmart-AVI FVX-3000S Specs | | | Input Interface | VGA female (single-link) | | | | Output Interface | DVI-I (VGA or DVI) | | | | Resolution | 1920 x 1200 @ 60 Hz | | DDC | Internal table can be re-programmed | | | | Signal Type | Stereo audio | | Bandwidth | 15 MHz, 0 dB | | Impedance | 10 kΩ | | Connector | 1 x 3.5mm stereo mini female | | | | RS-232 | Data up to 115 kb/s | | USB | USB keyboard and mouse compliant | | | | Distance | 738' (225 m) @ multimode 62.5 μ
1,476' (450 m) @ multimode 50 μ | | Connector Type | LC | | Dimensions | 4.5 x 5.5 x 1.7" (114.3 x 139.7 x 43.2 mm) | | Weight | 8.0 lb (3.6 kg) |
