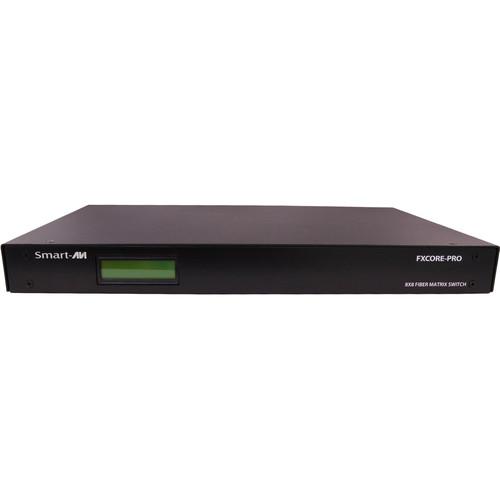

User Manual for Smart-AVI FXCore-Pro Multimode KVM Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI FXCore-Pro Multimode KVM Switch
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI FXCore-Pro Multimode KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Smart-AVI FXCore-Pro KVM Switch utilizes multimode fiber-optic technology to enable switch-to-device connections of up 1,500'. The FXCore-Pro comes with LC connectors and is configured to support 4 transmitters and 12 receivers. The transmitters connect to servers, desktops and other types of systems, while receivers are designed to accommodate a monitor, keyboard, mouse and pair of speakers. The transmitters and receivers are sold separately.
The FXCore-Pro delivers DVI-D video of up to 1920 x 1200 as well as USB keyboard/mouse and peripheral signals. It offers flexible signal switching between connected devices, so any output port can be assigned signals from any input. Moreover, the switch provides RS-232 command support and OSD control. - Manage secure KVM (keyboard, video and mouse) on 4 PCs with 12 workstations over fiber optics
- Device-to-matrix routing distance of 1,500' in multimode
- Supports uncompressed DVI-D video, stereo audio, and RS-232 control
- Supports On Screen Display (OSD) control and optional broadcasting functionality
UPC: 813280020718 In the Box Smart-AVI FXCore-Pro Multimode KVM Switch (4 PCs x 12 Users) Power Supply Video Matrix Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI FXCore-Pro Multimode KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI FXCM-MX0412S Specs | Connector | 4 x multimode full-duplex LC inputs
12 x multimode full-duplex LC outputs | | Wavelength | 850 nm, VCSEL Class 1 AEL laser | | Maximum Operating Distance | Multimode: 3000' / 914.4 m | | Compliance | FC-PI 200-M5-SN-I, 200-M6-SN-I 2.125 GBd, FC-PI 100-M5-SN-I, FC-PI 100-M6-SN-I, FC-PH2 100-M5-SN, and FC-PH2 100-M6-SN-I 1.0625 GBd | | Receiver Sensitivity | -21 dB Max | | Input/Output | TX Output: Optical Power (Average) -10 dBm
RX Input: Optical modulation amplitude (min) -17 dBm | | Routing | 4 x 12 non-blocking | | Control | RS-232 9600 bps | | Display | Front Panel LCD 2 x 20 | | Voltage | 110 to 220 VAC | | Power Supply | 40 W | | Video Format | DVI-D single line | | Maximum Pixel Clock | 165 MHz | | Resolution | Up to 1920 x 1200 @ 60 Hz | | Signal Type | Stereo audio | | Bandwidth | 15 MHz, 0 dB | | Impedance | 10K Ohm | | RS-232 | Speed: up to 115 Kbps | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% | | Dimensions | 17 x 10.6 x 1.8" / 43.2 x 26.9 x 4.4 cm |
