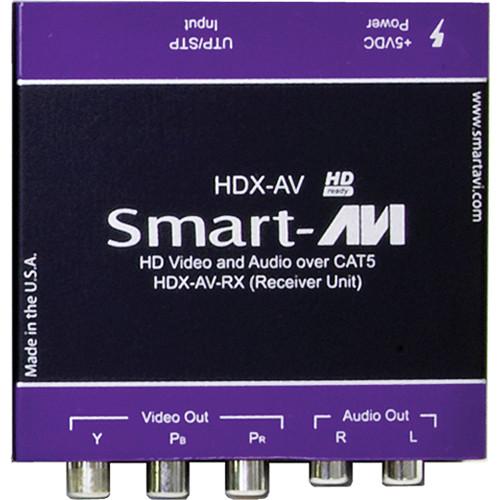

User Manual for Smart-AVI HDAV-RX Receiver with Power Supply Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDAV-RX Receiver with Power Supply
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
|
User manual for the Smart-AVI HDAV-RX Receiver with Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI HDAV-RX Receiver with Power Supply is a versatile long-distance HDTV and stereo audio receiver that allows you to extend video, audio, RS-232, and IR signals up to 1000' over UTP cabling when used with a transmitter (HDAV-TXS). Installed with an external power supply unit (PS5VD1A), the HDAV-RX Receiver supports resolutions up to 1920 x 1200, line level stereo audio signals, and HDTV signals (720p, 1080i, 1080p) at a bandwidth of 300 MHz. Equipped with a designated trimmer in the remote unit to compensate for cable length, the HDAV-RX Receiver is suitable for use in home theater systems where the video source is at a distance from the television. - Versatile long-distance HDTV and stereo audio receiver
- Allows you to extend video, audio, RS-232, and IR signals up to 1,000' over UTP cabling when used with a transmitter (HDAV-TXS)
- Includes an external power supply unit (PS5VD1A)
- Supports resolutions up to 1920 x 1200, line level stereo audio signals, and HDTV signals (720p, 1080i, 1080p) with a bandwidth of 300 MHz
- Equipped with a designated trimmer in the remote unit to compensate for cable length
- Suitable for use in home theater systems where the video source is at a distance from the display
In the Box Smart-AVI HDAV-RX Receiver with Power Supply PS5VD1A 5V 1A Power Supply zuebbafvwrtduqewyx 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDAV-RX Receiver with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDAV-RXS Specs | Range | Over 1000' (305m) over Cat5 cable | | Video Bandwidth | 400MHz | | Video Signal | 1 Volt | | Video Input | 3 RCA RGB | | Video Output | RJ45 | | Video Format | YPbPr analog component video | | Audio Bandwidth | 20 Hz | | Audio Signal | 0dB | | Audio Impedance | 10K ohms | | Audio Input | RCA Left and Right | | Cable | CAT5 UTP EIA 568A | | Power | 5VDC at 1A | | Dimensions (WxHxD) | 5.3 x 1 x 3.5" (135 x 25 x 89mm) |
