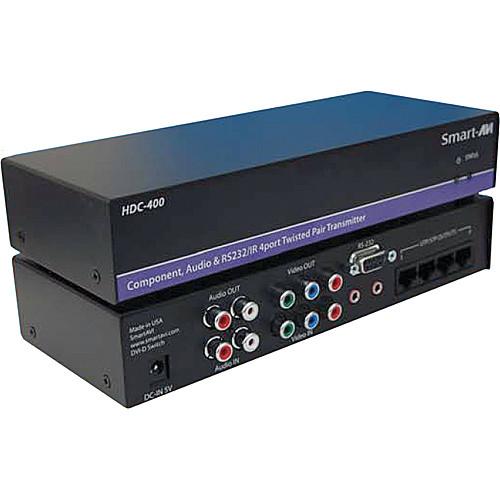

Product description The SmartAVI HDC-400 1:4 Splitter/Extender with Power Supply uses a single CAT5 cable to broadcast high-resolution (up to 1920 x 1200) component video, stereo audio, RS-232, and IR signals to 4 locations over a distance of up to 1000'. It is compatible with HDTV (720p, 1080i, and 1080p), YPrPb, and RGB video formats and line level stereo audio signals and comes with a power supply (PS5VD2A). Using a bandwidth of 300 MHz, the HDC-400S broadcasts real-time data such as news, stock prices, sports results, and flight information and is suitable for use in locations that require multiple displays such as sports bars, stores, command posts, and educational or corporate institutions. Commands can be transmitted to single and multiple devices that are connected to the HDC-400 1:4 Splitter/Extender via RS-232 and IR control. The splitter is RoHS compliant and meets CE standards. - 1:4 Splitter/Extender includes power supply (PS5VD2A)
- Uses a CAT5 cable to broadcast high-resolution (up to 1920 x 1200) component video, stereo audio, RS-232, and IR to 4 locations
- Compatible with (720p, 1080i, and 1080p) HDTV, YPrPb, and RGB video formats
- Supports line level stereo audio signals
- Broadcasts real-time data such as news, stock prices, sports results, and flight information using a bandwidth of 300 MHz
- Suitable for use in locations that require multiple displays such as sports bars, stores, command posts, and educational or corporate institutions
- Controls single and multiple devices using RS-232 and IR
- RoHS compliant and meets CE standards
UPC: 813280021463 In the Box Smart-AVI HDC-400 1:4 Splitter/Extender with Power Supply PS5VD2A 5V 2A Power Supply zuebbafvwrtduqewyx 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDC-400 1:4 Splitter Extender with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDC-400S Specs | Maximum Distance | 1000' (305m) | | Format | RGB, YUV, Y/C, CVBS / 1 volt p-p, 75 Ohm | | Resolution | Up to 1900 x 1200 | | Supported Signals | YPbPr, Y/C, composite video, stereo audio | | Video Bandwidth | Video Amplifier Bandwidth: 300 MHZ | | Audio Frequency Response | 20 ~ 20 kHz | | Supported Resolutions | 480p, 720p, 1080i, 1080p | | Connectors | Three female RCAs for video and two female RCAs for audio | | Cable Type | Cat 5, Cat 5e, Cat 6, Cat 6e | | Control | RS232 DB9M, TXD, RXD, Gnd., 9600 bps | | Enclosure | Metal | | Power | 5 VDC at 2 A | | Compliance | CE, RoHS | | Humidity | Up to 95% | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 6.0" |
