User Manual for Smart-AVI HDC-MXS HDTV Router Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDC-MXS HDTV Router
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
|
User manual for the Smart-AVI HDC-MXS HDTV Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

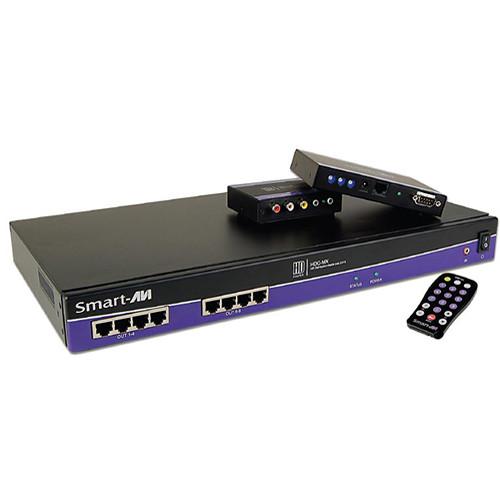

Product description The HDC-MXS HDTV Router from Smart-AVI combines the functionality of an audio, video, IR, and RS-232 matrix in a single compact unit. This solution is designed to give you complete control over your home-entertainment components. It supports transmission distances up to 1699' (517m). - This unit routes additional audio signals independently
- It integrates an IR and RS-232 router for each station
- This unit is designed to offer optimal high-quality audio and video switching
- It supports resolutions up to 1920 x 1200
- Full duplex infrared and RS-232 control for matrix and connected devices is supported
- This unit is completely transparent and IR function supports all frequencies between 20 and 100KHz
- It includes PC control software
- Cable compensation up to 1699' (517m) is supported
- It is housed in a compact metal chassis
- It can distribute multiple video signals: RGB, YUV, RGBS, and HDTV
- This unit is HD-compatible: 480p, 720p, 1080, and 1080p
In the Box Smart-AVI HDC-MXS HDTV Router One-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDC-MXS HDTV Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDC-MXS Specs | Video | Bandwidth: 400MHz
Input Signal Level: 1Vp-pk into 75R
Output Impedance: 100 Ohms
Input Impedance: 75 Ohms
Connector: 8 x HD15 socket female
Format: VGA/SVGA/XGA/RGBHV//RGsB/CVGS/YC/YUV/RGBS/HDTV
Syncs: TTL5VDC Bandwidth Horizontal Sync up to 85KHz | | Audio | Signal: 15KHz 0dB unbalanced 100 Ohms impedance
Connector: RCA or 3.5 stereo jack | | Control | RS-232: 8 x RS-232 DB9 Female, TX, RX, GND
Infrared: 8 x IR 3.5mm jack to IR emitter
Front Panel: 8 x RJ45 with video, audio and data modulated within single UTP | | Power | 90 to 230V, IEC, 1A, A/S 50/60Hz | | Dimensions (HxWxD) | 5.25 x 19 x 17.72" (133.35 x 482.6 x 450.09mm) | | Weight | 9 lbs (4.08kg) |
