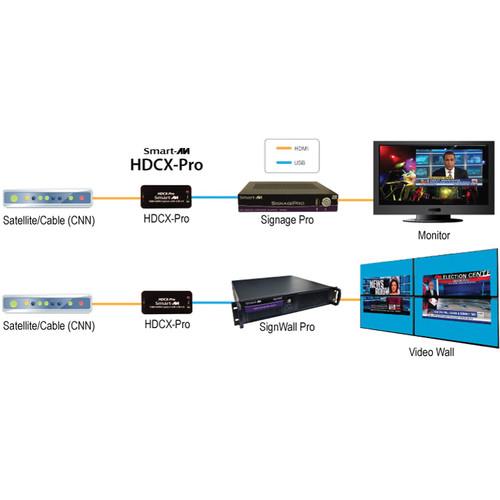

Product description The HDCX-PRO Live HDMI Capture Adapter with USB 3.0 Output from Smart-AVI routes a live video and audio feed from an HDMI source into a computer, video wall, or signage player. It is compatible with cameras, graphic cards, HDTV sources, and a variety of other devices. There is one HDMI input port, and one USB output port that can support USB 3.0 and 2.0 devices. The adapter can support resolutions of up to 1920 x 1200 and does not require driver installation. This compact device does not use a power adapter, making it ideal for on-the-go use. - HDCP and HDMI 1.4 compliant
- Supports USB 3.0 and USB 2.0
- Compatible with Windows (7 and up), Linux (2.6.38 and up), and OS X (10.8 and up)
- Supports APIs including DirectShow, DirectSound, V4L2, ALSA, and QuickTime
- Resolutions of up to 1920 x 1200
- Connect multiple units to a single computer
- Enables up and down conversion of video resolution
- Features automatic 48 kHz PCM stereo audio output
- Plug-and-play ready, no driver installation required
- 64MB DDR2 onboard memory for video frame buffering
UPC: 813280017794 In the Box Smart-AVI HDCX-PRO Live HDMI Capture Adapter with USB 3.0 Output Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDCX-PRO Live HDMI Capture Adapter with USB 3.0 Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDCXPROS Specs | Input Interface | HDMI: HDMI 1.4 compliant, up to 1080p / 60 Hz 8-bit (RGB, YUV) | | Output Formats | Resolutions from 640x480 to 1920x1200 | | Audio and Video Capture | Meets UVC (USB video class) and UAC (USB audio class) standards | | Connections | Input Interface: 1 x HDMI
HDMI Audio Input: LPCM audio signal
Output Interface: 1 x USB 3.0 | | OS Support | Windows 7 and up, Linux (Kernel version 2.6.38 and up), OS X (10.8 and up) | | Software Compatibility | Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X), etc. | | APIs | DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) | | Onboard Memory | 64 MB DDR2, 16 bits @ 300 MHz | | Firmware Upgradable | Yes | | Power Consumption | ≤ 2.5 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 5-90% RH | | Dimensions | 3.3 x 1.7 x 0.5" / 8.4 x 4.3 x 1.3 cm
| | Weight | Not specified by manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 2.3" |
