User Manual for Smart-AVI HDMV-16X HD Multiviewer with 16 HDMI Inputs Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDMV-16X HD Multiviewer with 16
- Product category: Multiviewer Processors Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Multiviewer Processors
 |
User manual for the Smart-AVI HDMV-16X HD Multiviewer with 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

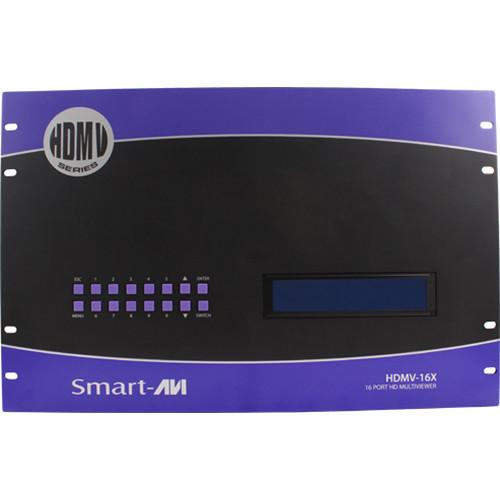

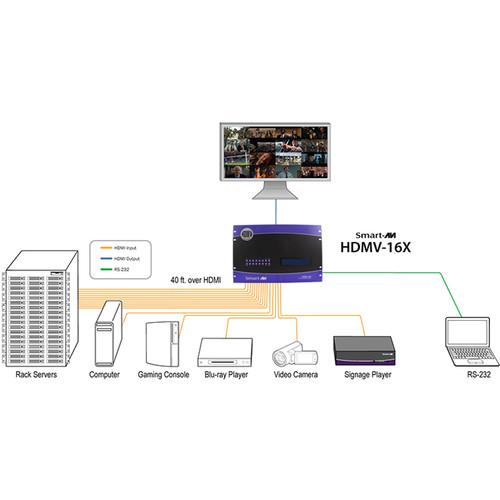

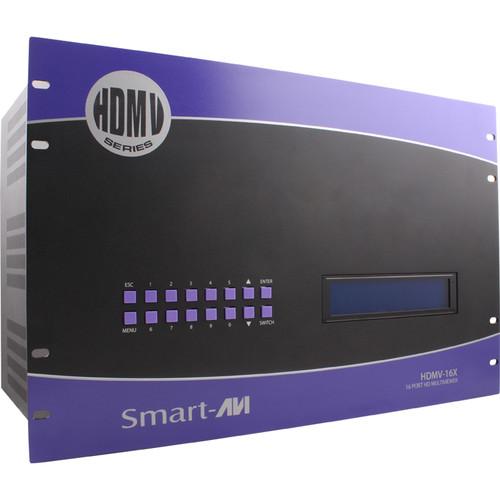

Product description The HDMV-16X HD Multiviewer from Smart-AVI allows viewing up to 16 HD digital video sources on one display device simultaneously. It simplifies managing multiple video sources by accessing them from a single set of controls on one display. Connections to video sources are managed via HDMI connectors, with viewing options such as dual-mode, quad-mode, full-screen mode, and PiP (Picture-in-Picture). The HDMV-16X HD Multiviewer can be used in applications that require real-time monitoring of multiple devices such as HDTVs, DVD players, cameras, and computers. It is suitable for multitasking since you don't need to switch between sources. Switching between the display modes is simple. You can use the buttons on the front panel, programmable keyboard hotkeys, RS-232 commands, or built-in on-screen display (OSD). The OSD features controls for all of the multiviewer's functions, and is accessible at the press of a button. The device is easily programmable through the setup function of the OSD. If you need to place the HDMV-16X Multiviewer away from the primary workstation or need to make changes remotely, the Net-IP-Pro Control Module (available separately) enables effective real-time remote control management over an Ethernet connection. You simply need to connect the Net-IP-Pro Control Module to the device while connected to the Internet, and it can be easily be controlled remotely. HD Multiviewer - View up to 16 sources on a single monitor at the press of a button
- On-screen display (OSD) makes setup and switching easy
- Display each computer with crisp high-resolution video
- Supports DVI-D input resolutions up to 1900 x 1200
- Supports 1080p HDMI output (1920 x 1080)
- Delivers uncompressed digital video with zero signal loss
- HDCP and HDMI 1.4 compliant
- Supports EDID for total control of compliant displays
- Change views with front panel switching, keyboard hotkeys, and RS-232
- Designed and manufactured in USA
Available Configurations - Fullscreen Mode: One of the 4 video sources is displayed in full screen size and maximum resolution. The keyboard and mouse operations automatically switch to the corresponding computer.
- PiP (Picture-in-Picture) Mode: One of the 4 video sources is displayed in fullscreen, and the other 3 sources are displayed in a vertical stack on the right side of the screen as thumbnails, allowing simultaneous monitoring. 1
Please Note: PiP mode doesn't support all input permutations. close - Dual Mode: The screen is split into 2 vertical halves, each displaying one of the 2 video sources or computers.
- Quad Mode: The screen is split into 4 equal sections, each displaying one of the 4 video sources or computers.
- 16-Mode: The screen is split into 16 equal sections, each displaying one of the 16 video sources or computers.
Applications - Corporate or educational presentations
- Financial (remote servers/user control)
- Call centers for technical support
- Industrial (long-range workstation isolation)
- Airport installations (air traffic control/passenger information)
- Medical (remote operation away from sensitive/magnetic equipment)
- Recording (for large studios where editing/mixing stations are compact and/or require complete silence)
UPC: 813280023252 In the Box Smart-AVI HDMV-16X HD Multiviewer with 16 HDMI Inputs CCPWR06 6' Power Plug Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDMV-16X HD Multiviewer with 16 HDMI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SM-HDMV-16X-S Specs | | | Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) | | Resolution | HDTV: 480i, 480p, 720i, 720p, 1080i, 1080p

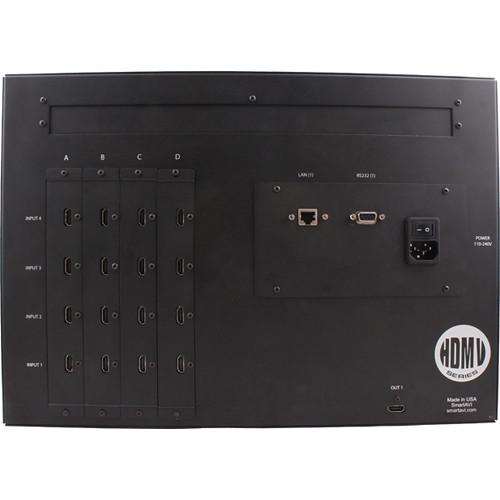

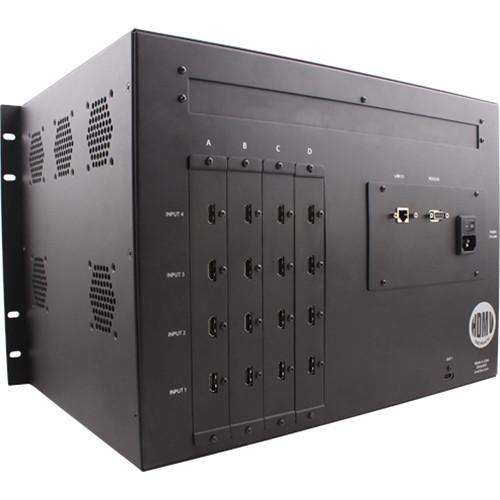

PC: 800 x 600 up to 1920 x 1200 | | Input Video Signal | 1.2 V | | Input DDC Signal | 5 V | | Single Link Range | 1080p | | Format | HDMI 1.4 | | DVI Compliance | Single-link DVI-D 2.0 | | HDCP Compliance | 1.0 / 2.0 | | Input Interface | 16 x HDMI | | Output Interface | HDMI | | Range | HDMI: Up to 40.0' (12.2 m) | | HDMI Connector | Type A (19-pin female) | | | | Front Panel | Tact Switches with OSD | | Display | 4 x 40 LCD | | RS-232 | 9-pin D-Sub (female) | | | | Power Requirements | Internal 100 to 240 VAC | | Approvals | Power Supply: UL, CE, CSA, CEC, RoHS | | Dimensions (WxHxD) | 19.0 x 5.3 x 7.0" (48.3 x 13.3 x 17.3 cm); Rack Height: 3 U | | Weight | 15.0 lb (6.8 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.0" |
