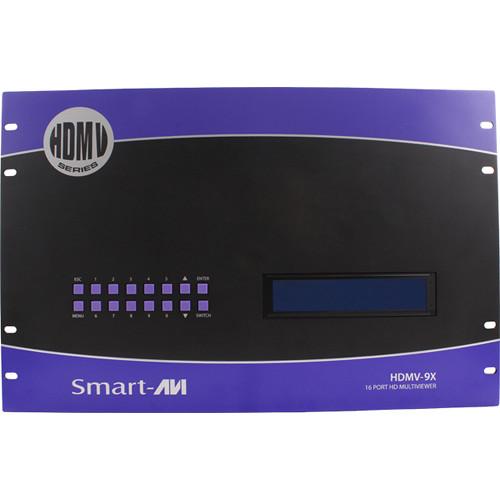

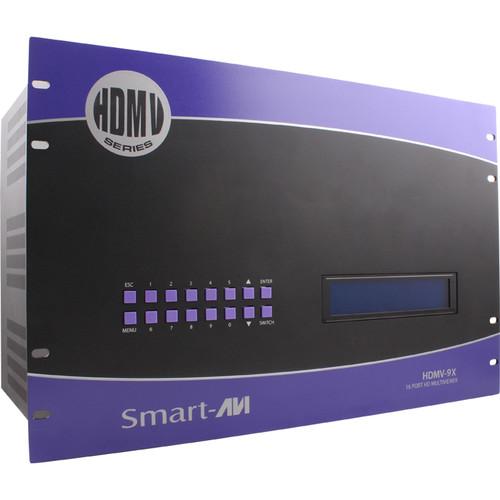

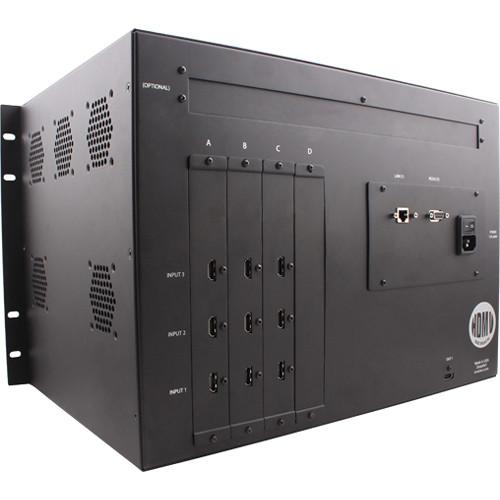

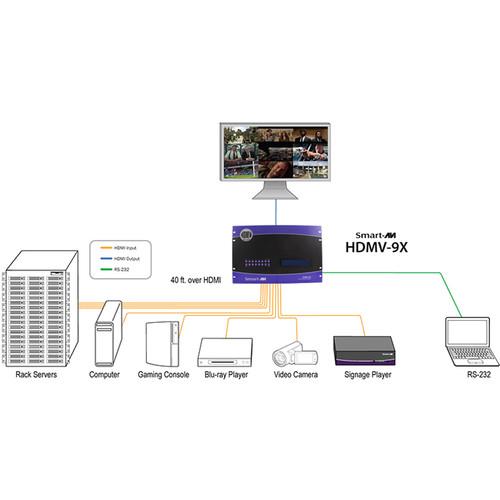

Product description The HDMV-9X HD Multiviewer from Smart-AVI allows viewing up to 9 HD digital video sources on one display device simultaneously. It simplifies managing multiple video sources by accessing them from a single set of controls on one display. Connections to video sources are managed via HDMI connectors, with viewing options such as dual-mode, quad-mode, full-screen mode, and PiP (Picture-in-Picture). The HDMV-9X HD Multiviewer can be used in applications that require real-time monitoring of multiple devices such as HDTVs, DVD players, cameras, and computers. It is suitable for multitasking since you don't need to switch between sources. Switching between the display modes is simple. You can use the buttons on the front panel, programmable keyboard hotkeys, RS-232 commands, or built-in on-screen display (OSD). The OSD features controls for all of the multiviewer's functions, and is accessible at the press of a button. The device is easily programmable through the setup function of the OSD. If you need to place the HDMV-9X Multiviewer away from the primary workstation or need to make changes remotely, the Net-IP-Pro Control Module (available separately) enables effective real-time remote control management over an Ethernet connection. You simply need to connect the Net-IP-Pro Control Module to the device while connected to the Internet, and it can be easily be controlled remotely. HD Multiviewer - View up to 9 sources on a single monitor at the press of a button
- On-screen display (OSD) makes setup and switching easy
- Display each computer with crisp high-resolution video
- Supports DVI-D input resolutions up to 1900 x 1200
- Supports 1080p HDMI output (1920 x 1080)
- Delivers uncompressed digital video with zero signal loss
- HDCP and HDMI 1.4 compliant
- Supports EDID for total control of compliant displays
- Change views with front panel switching, keyboard hotkeys, and RS-232
- Designed and manufactured in USA
Available Configurations - Fullscreen Mode: One of the 4 video sources is displayed in full screen size and maximum resolution. The keyboard and mouse operations automatically switch to the corresponding computer.
- PiP (Picture-in-Picture) Mode: One of the 4 video sources is displayed in fullscreen, and the other 3 sources are displayed in a vertical stack on the right side of the screen as thumbnails, allowing simultaneous monitoring. 1
Please Note: PiP mode doesn't support all input permutations. close - Dual Mode: The screen is split into 2 vertical halves, each displaying one of the 2 video sources or computers.
- Quad Mode: The screen is split into 4 equal sections, each displaying one of the 4 video sources or computers.

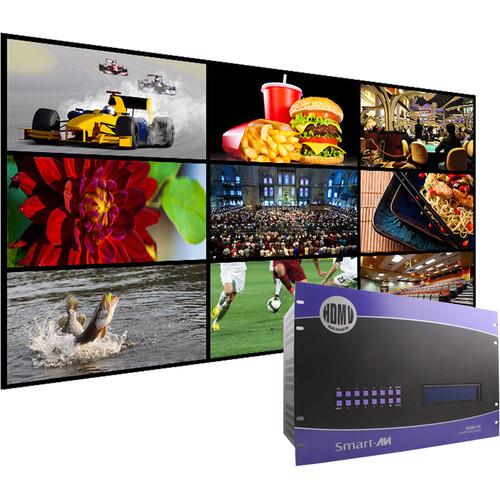

- 9-Mode: The screen is split into 9 equal sections, each displaying one of the 9 video sources or computers.
Applications - Corporate or educational presentations
- Financial (remote servers/user control)
- Call centers for technical support
- Industrial (long-range workstation isolation)
- Airport installations (air traffic control/passenger information)
- Medical (remote operation away from sensitive/magnetic equipment)
- Recording (for large studios where editing/mixing stations are compact and/or require complete silence)
UPC: 813280019620 In the Box Smart-AVI HDMV-9X HD Multiviewer with 9 HDMI Inputs CCPWR06 6' Power Plug Cable vxwvfcbarxfbqfyawxuxuvfcuecxdzus Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDMV-9X HD Multiviewer with 9 HDMI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

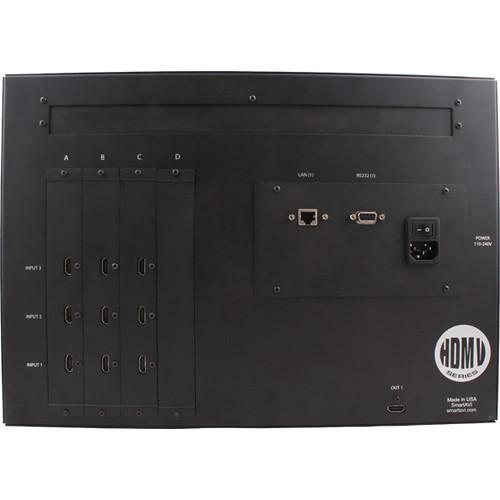

Technical parametersSmart-AVI SM-HDMV-9X-S Specs | | | Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) | | Resolution | HDTV: 480i, 480p, 720i, 720p, 1080i, 1080p
PC: 800 x 600 up to 1920 x 1200 | | Input Video Signal | 1.2 V | | Input DDC Signal | 5 V | | Single Link Range | 1080p | | Format | HDMI 1.4 | | DVI Compliance | Single-link DVI-D 2.0 | | HDCP Compliance | 1.0 / 2.0 | | Input Interface | 9 x HDMI | | Output Interface | HDMI | | Range | HDMI: Up to 40.0' (12.2 m) | | HDMI Connector | Type A (19-pin female) | | | | Front Panel | Tact Switches with OSD | | Display | 4 x 40 LCD | | RS-232 | 9-pin D-Sub (female) | | | | Power Requirements | Internal 100 to 240 VAC | | Approvals | Power Supply: UL, CE, CSA, CEC, RoHS | | Dimensions (WxHxD) | 19.0 x 5.3 x 7.0" (48.3 x 13.3 x 17.3 cm); Rack Height: 3 U | | Weight | 15.0 lb (6.8 kg) |
