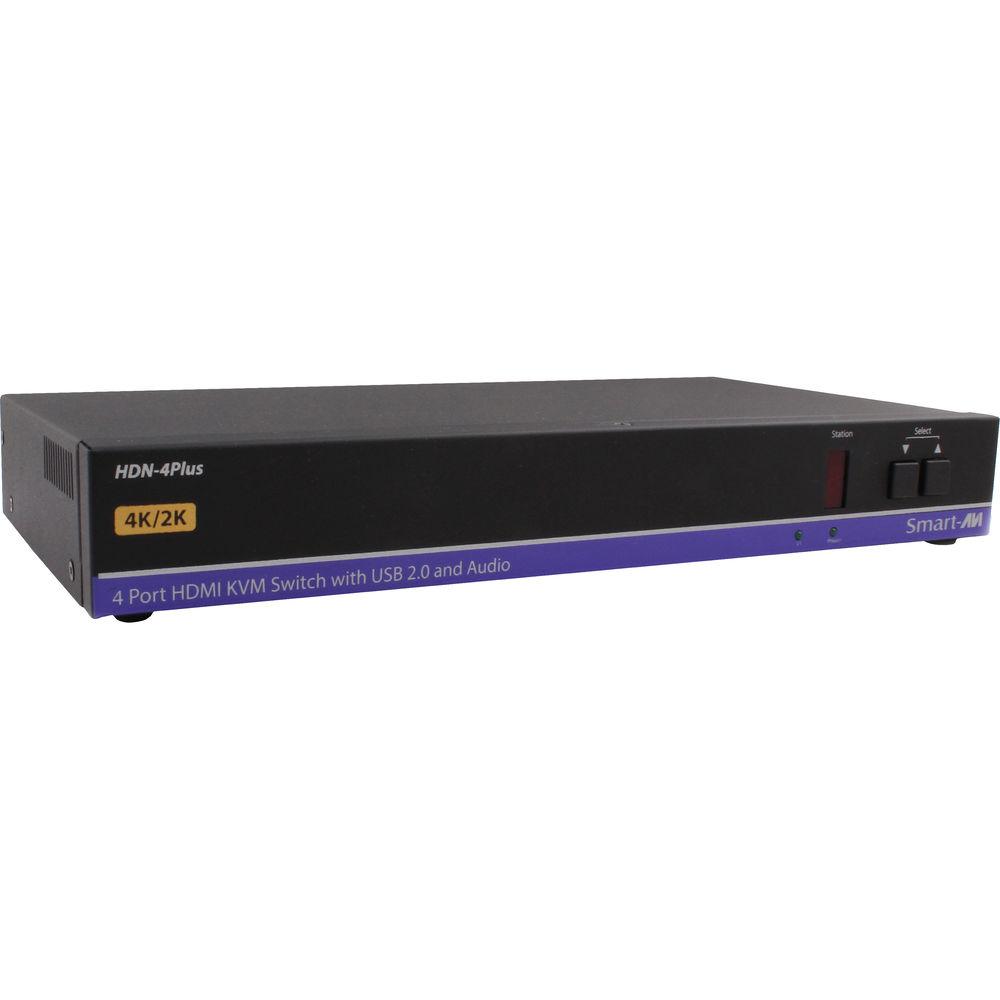

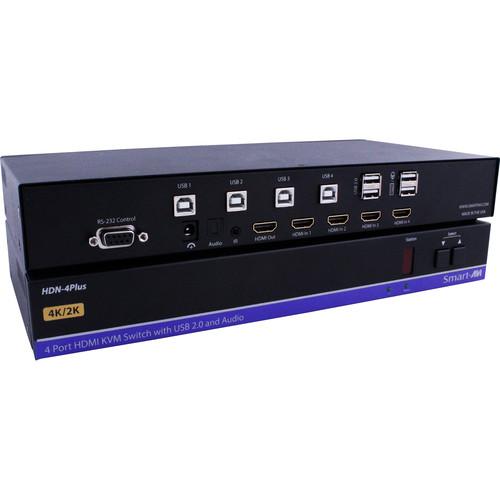

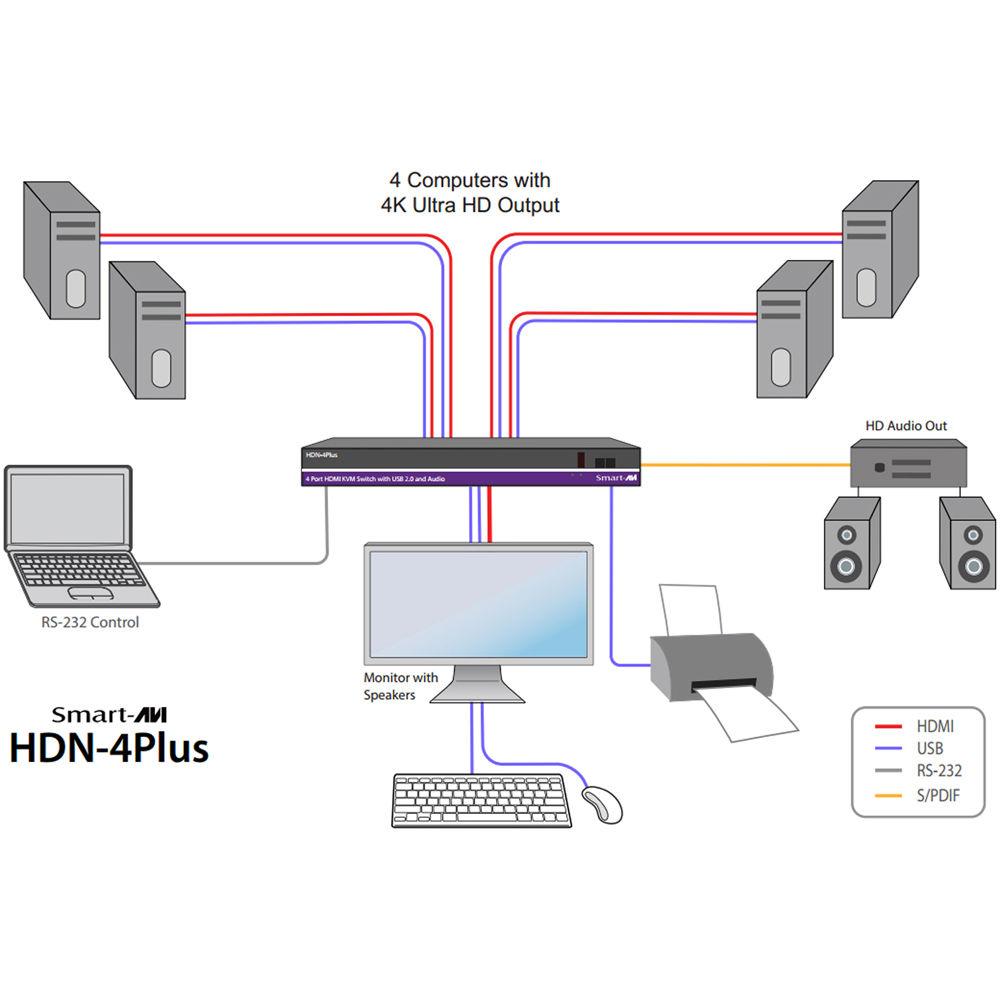

Product description Multi-Monitors: Maximizing Multitasking Read More tacxvzqextaaxfevbdbbrfxrterbfufeedy The HDN-4PLUS-S 4-Port HDMI KVM Switch from Smart-AVI is a multi-platform switch capable of managing four computers through a single HDMI monitor, USB keyboard, USB mouse, and various other USB 2.0 devices. It also supports 4K Ultra HD workstations, and features SmartPreview technology for simultaneous picture-in-picture monitoring of the other sources connected to the switch. USB emulation technology allows hot key source switching through a remote USB keyboard and mouse, and plug-and-play EDID easily implements the switch in any scenario. The HDN-4PLUS-S is HDMI 1.4 and HDCP compliant, and supports RS-232 and front panel switching. The switch also transmits digital audio, including a separate S/PDIF digital audio output for maximum flexibility. - Supports Mac, PC, Linux, and Sun Mac OS, Sun OS, Unix
- Supports resolutions of up to 4K Ultra HD (3820 x 2160 @ 30 Hz), including 1080p (@ 60Hz) full HD
- Minimum pixel loss with TMDS signal correction
- Supports all USB 2.0 devices, including a keyboard and mouse
- Control Sun, Mac, or PC workstations from one KVM console
- Compatible with all major software including Windows, Linux, Mac OS, Sun OS, and Unix
- Rack mountable in a standard 19 inch rack
- Flash upgradeable firmware
- Front panel keys for manually selecting users and channels
- Supports LPCM 7.1, Dolby True HD, Dolby Digital Plus, and DTS-HD Master Audio
- RS-232 control for remote control
- Hot-key commands for quick channel selection
- Independent switching of KVM and peripheral USB ports
- Complete keyboard emulation for error free booting
UPC: 813280021500 In the Box Smart-AVI HDN-4PLUS-S 4-Port HDMI KVM Switch Power Adapter Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDN-4PLUS-S 4-Port HDMI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI HDN-4PLUS-S 4-Port HDMI KVM Switch can be downloaded in PDF format at the link stated below.

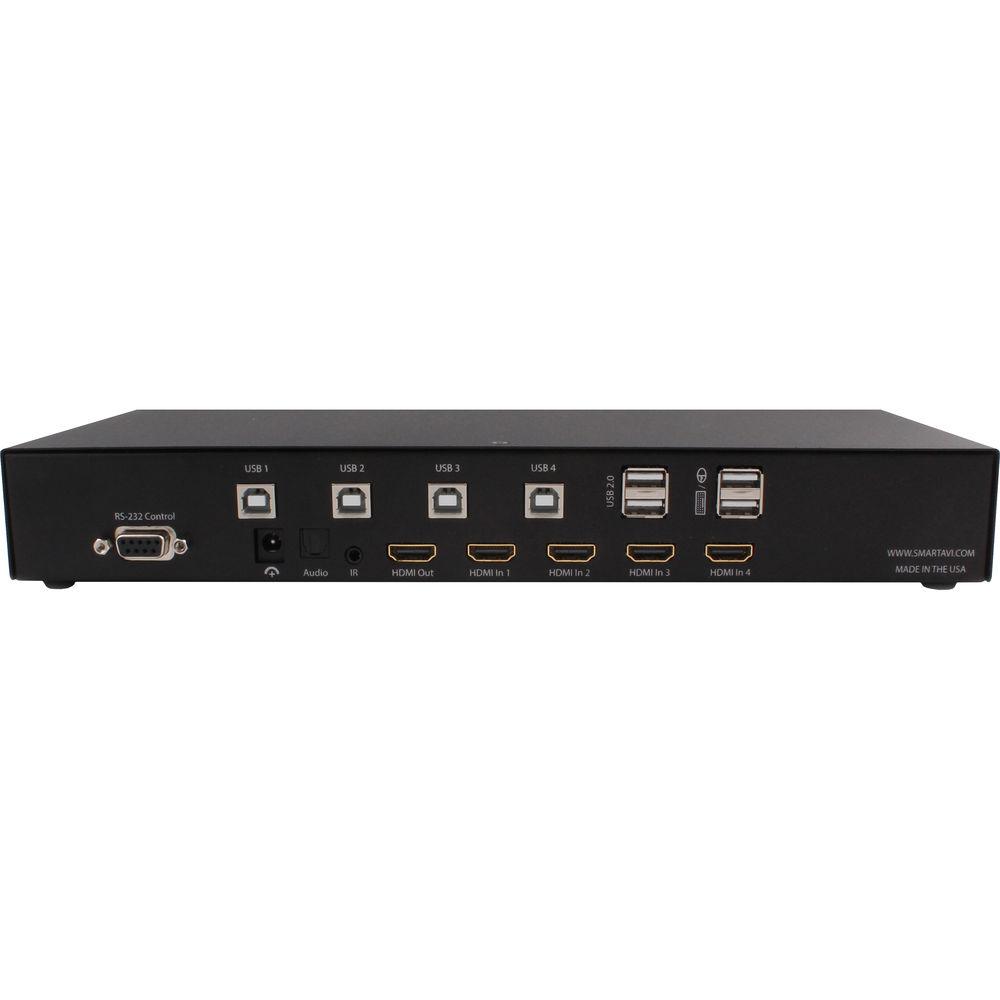

Technical parametersSmart-AVI HDN-4PLUS-S Specs | Format | HDMI 1.4 | | Connectors | Video Input Interface: 4 x HDMI Female
Video Output Interface: 1 x HDMI Female

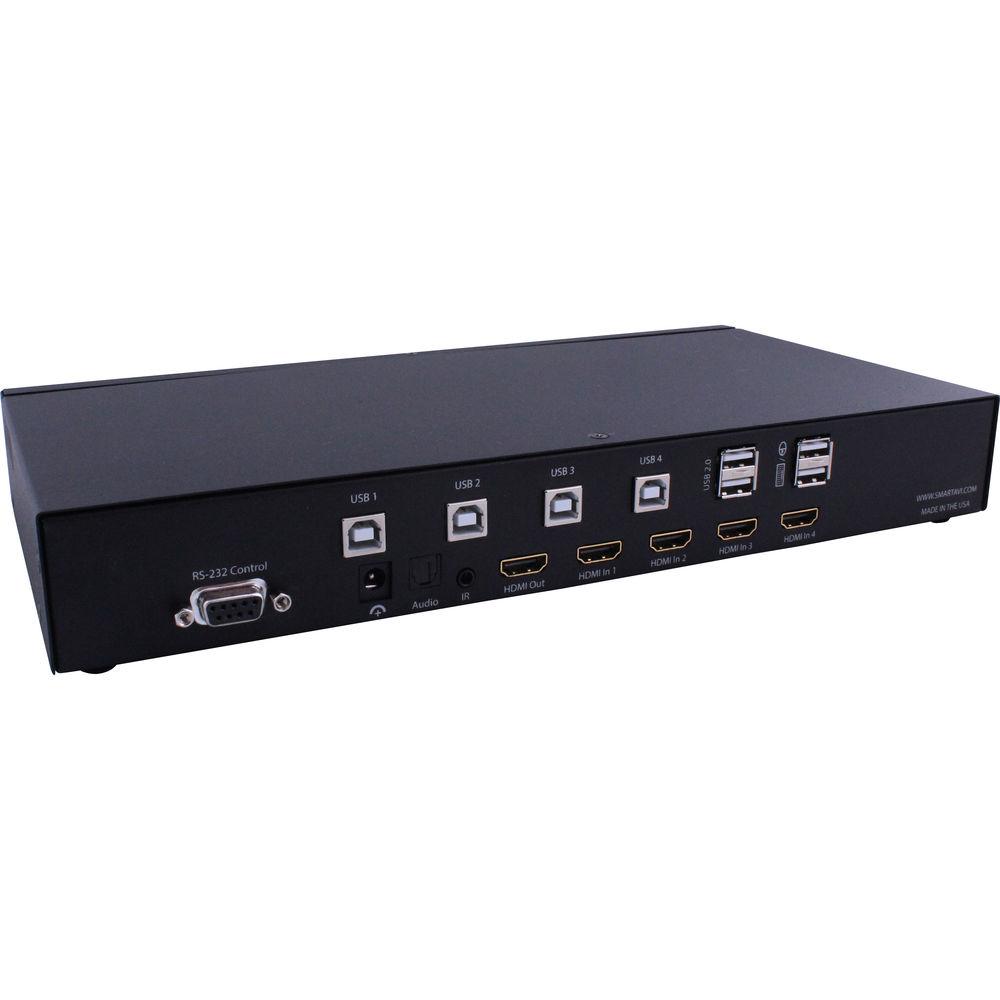

USB Input Interface: 4 x USB Type B
USB Output Interface: 2 x USB 1.1 Type A, 2 x USB 2.0 Type A | | Maximum Pixel Clock | 300 MHz | | Resolution | Up to 4K x 2K (3840 x 2160 @ 30 Hz)
1080p @ 120 Hz and 1080p 3D @ 60 Hz | | USB | 2.0, 1.1, 1.0 with internal hub | | RS-232 | Control at 115200 bps | | DDC | 5 volts p-p (TTL) | | IR | RC5 | | Frequency Bandwidth | 10.2 GB per sec | | Input Equalization | Automatic | | Front Panel | Tactile switch
Display: LDC 2 x 20 character | | Hot Keys | Keyboard | | Emulation | Keyboard, mouse | | Power | External: 100 to 240 VAC / 5 VDC, 4 A @ 20 W | | Power Consumption | Maximum: 3 W | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | 5 to 90% RH, non-condensing | | Cable Length | Input: up to 20.0' / 6.1 m
Output: up to 20.0' / 6.1 m | | Dimensions | 1.7 x 6.3 x 12.5" / 4.3 x 16.1 x 31.8 cm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 12.9 x 9.5 x 3.2" |
