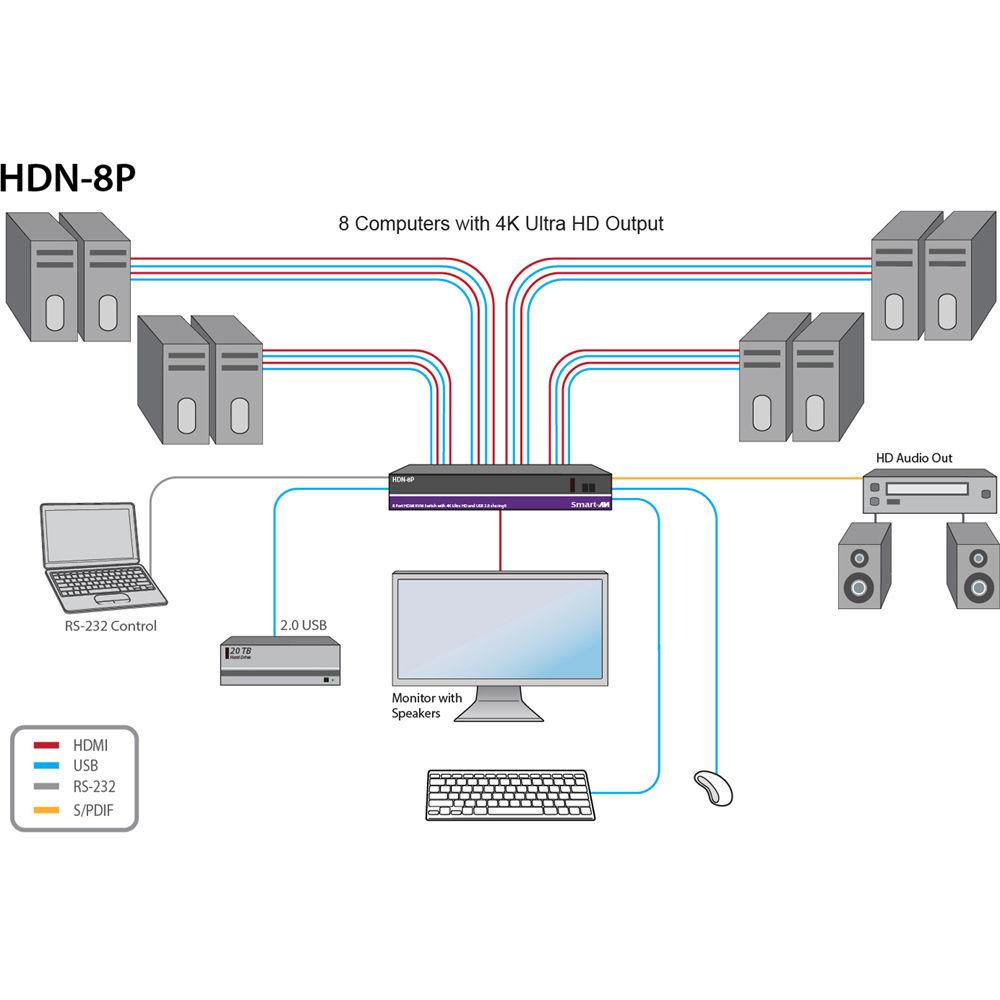

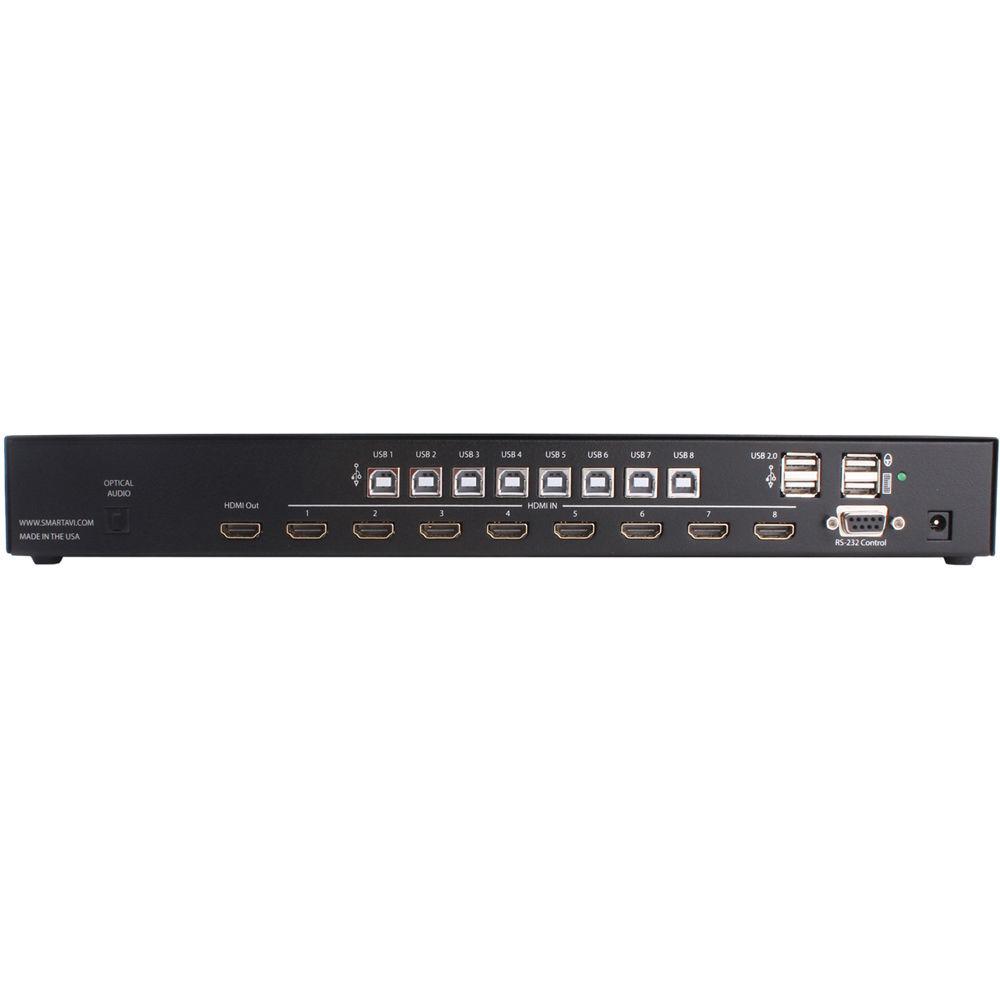

Product description Multi-Monitors: Maximizing Multitasking Read More xwueyfwczqdbwftvedvveewadwyq The 8-port HDN-8P 4K Ultra HD KVM Switch from Smart AVI is a dedicated multi-platform KVM switch capable of managing up to eight different computers through a single HDMI monitor, one USB keyboard, mouse, and other USB 2.0 Device. It features SmartPreview technology, which enables simultaneous picture-in-picture monitoring of the other sources connected to the switch. This allows you to keep tabs on the other connected workstations without constantly needing to switch back and forth.The USB emulation technology utilized by HDN-8P enables immediate hotkey source-switching through a remote USB keyboard and mouse. HDN-8P is HDMI 1.4 and HDCP compliant, which supports 4K Ultra HD resolutions and 12-bit deep color at 1080p @ 60Hz. - Easy Source Switching
- The HDN-8P-S allows you to control up to eight Ultra HD equipped computers with HDMI and USB 2.0 outputs. It can not only be controlled remotely from keyboard hotkeys or RS-232 commands, but can also be controlled directly through the console's front panel.
- Flexible Control
- Any external device or program supporting RS-232 can control the HDN-8P-S. Hotkeys enable the user to switch and control all the different functions of the KVM system. When used with the optional SMTCP-2 TCP/IP converter, the user can switch and control the HDN-8P-S from anywhere in the world using a LAN or WAN connection.
- Flexible Sharing
- HDN-8P-S enables the use of a USB keyboard and mouse of one computer while other USB peripherals such as speakers, scanners and printers are connected to other computer sources. It maintains the ability to switch all connected devices to any one of the computer sources.
- EDID Learning & Programming
- Detection of DDC signals for all attached devices is easy with HDN-8P-S due to its real EDID learning and programming. This is vital in optimizing the resolution of the selected graphics card to properly display on the remote monitor. Furthermore, the EDID learning feature continues to replicate the right DDC for the computer to enable the display card to effectively work when unused ports are not selected.
- USB Keyboard and Mouse Emulation
- The USB keyboard and mouse emulation utilized by HDN-8P-S provides accurate and quick source switching by means of keyboard hotkeys and mouse actions. HDN-8P-S imitates the presence of a keyboard and mouse for every attached computer through a USB cable. This is essential as it simulates the existence of the keyboard and mouse to all the computers while switching without interruptions.
- Other Features
-
- Switches eight Ultra HD sources to one Ultra HD display
- Supports LPCM 7.1, Dolby True HD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports resolutions up to 4K Ultra HD (3820 x 2160 @ 30Hz), including 1080p (@ 60Hz) full HD
- Supports controlling via RS-232
- Uses HDMI 1.4 ports
- Hotkey commands for quick channel selection
- Supports 3DTV pass through
- Independent (asynchronous) switching of KVM and peripheral USB ports
- Scan a document and save it in another computer
- Zero pixel loss with TMDS signal correction
- Supports all USB 2.0 devices, including keyboard and mouse
- Control Sun, Mac or Windows workstations from one KVM console
- Complete keyboard emulation for error-free booting

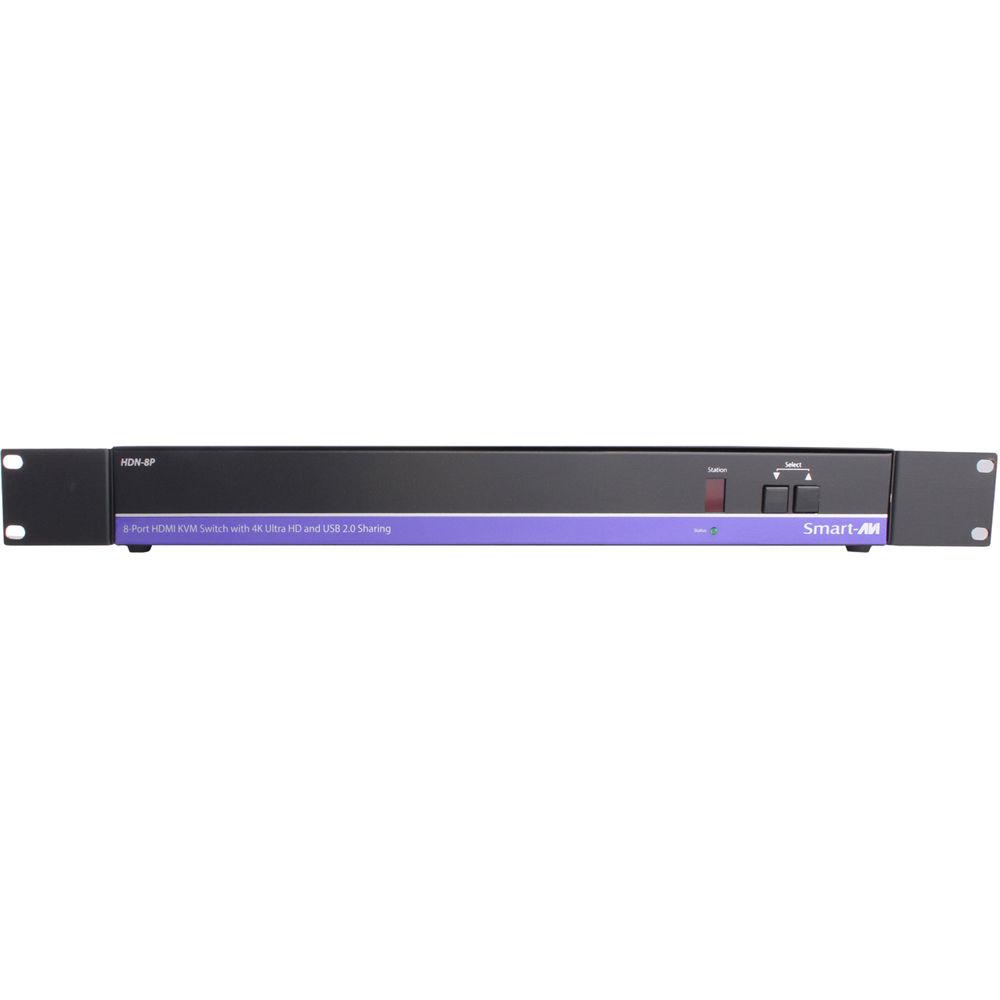

- Front-panel keys for manual switching

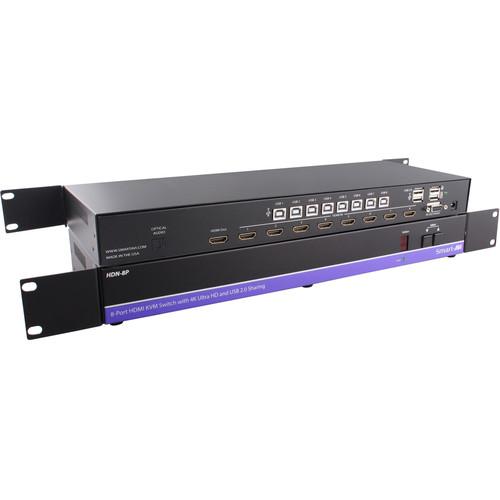

- Rackmountable in a standard 19" rack
- Flash-upgradable firmware
- Supports DVI sources/display with DVI-to-HDMI adaptors (not included)
- Supports HDCP
- Applications
-
- Server Collocation
- Digital Signage
- Education
- Airports
- Dealer Rooms
- Control Rooms
- Audio/Visual Presentations
- Shopping Centers
- Hotels/Resorts
- KVM Switches
UPC: 813280017824 In the Box Smart-AVI HDN-8P 4K Ultra HD KVM Switch with USB 2.0 Sharing (8-Port) Power Supply Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDN-8P 4K Ultra HD KVM Switch with USB 2.0 Sharing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI HDN-8P 4K Ultra HD KVM Switch with USB 2.0 Sharing can be downloaded in PDF format at the link stated below.
Technical parametersSmart-AVI HDN-8P-S Specs | | | Format | HDMI 1.4 | | Maximum Pixel Clock | 300 MHz | | Input Interface | 8 x HDMI (female) | | Output Interface | 1 x HDMI (female) | | Resolution | Up to 4k (3840 x 2160 @ 30 Hz); YUV4:2:0, 1080p @ 60 Hz and 1080p 3D @ 60 Hz | | DDC | 5 Vpp (TTL) | | Input Equalization | Automatic | | Cable Length | Input/Output: 20.0' (6.1 m) | | | | Signal Type | USB 2.0, 1.1, and 1.0 with internal hub | | Input Interface | 8 x USB type B | | Output Interface | 2 x USB 1.1 type A for KVM devices
2 x USB 2.0 type A transparent | | | | Front Panel | Tactile switch | | RS-232 | Via control @ 9600 bps | | Hotkeys | Via keyboard | | Emulation | Keyboard and mouse only | | | | Approvals | UL, CE, ROHS Compliant | | Power | External 100 to 240 VAC
5 VDC; 4 A @ 20 W | | Consumption | 20 W maximum | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Operating Temperature | 23 to 95°F (-5 to 35°C) | | Humidity | 5 to 90% RH (non-condensing) | | Dimensions | 1.75 x 6.25 x 14.75" (4.45 x 15.88 x 37.47 cm) | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 15.7 x 11.4 x 3.3" |
