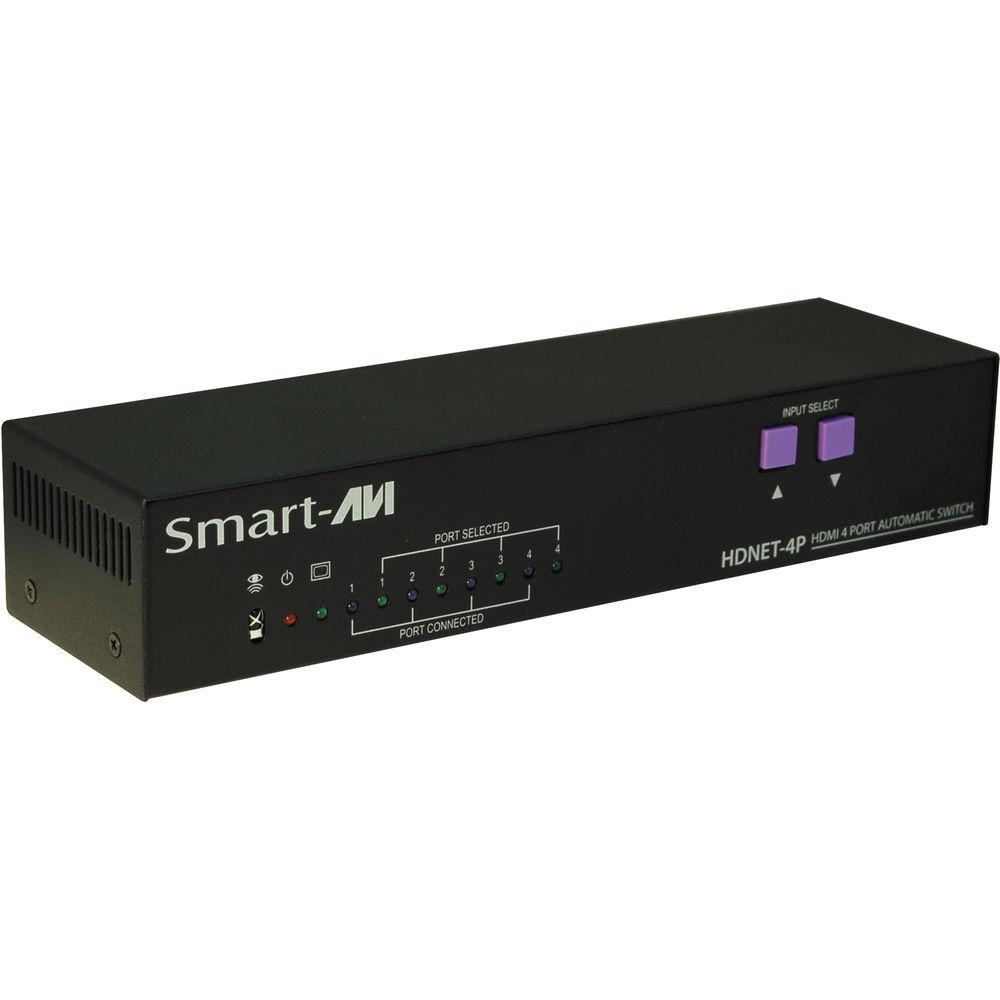

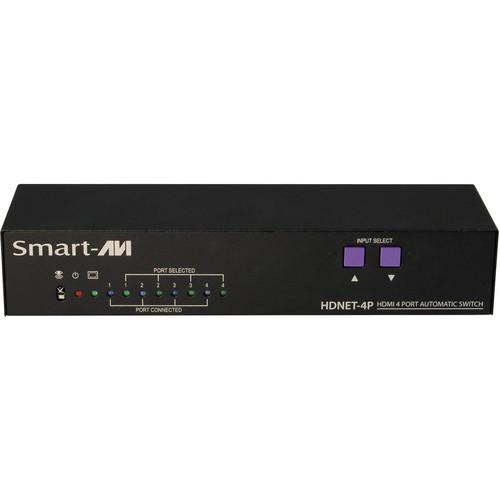

User Manual for Smart-AVI HDNeT-4P 4 x 1 HDMI Switcher Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDNeT-4P 4 x 1 HDMI
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI HDNeT-4P 4 x 1 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

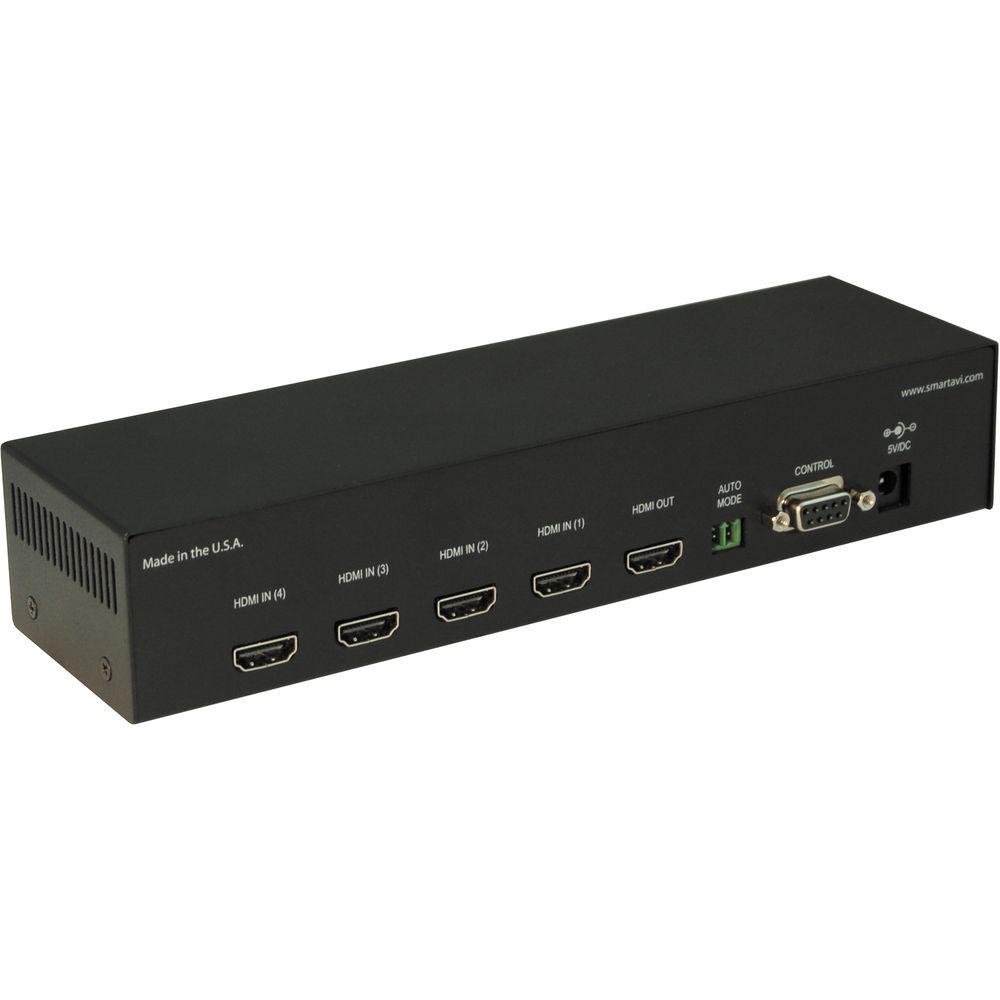

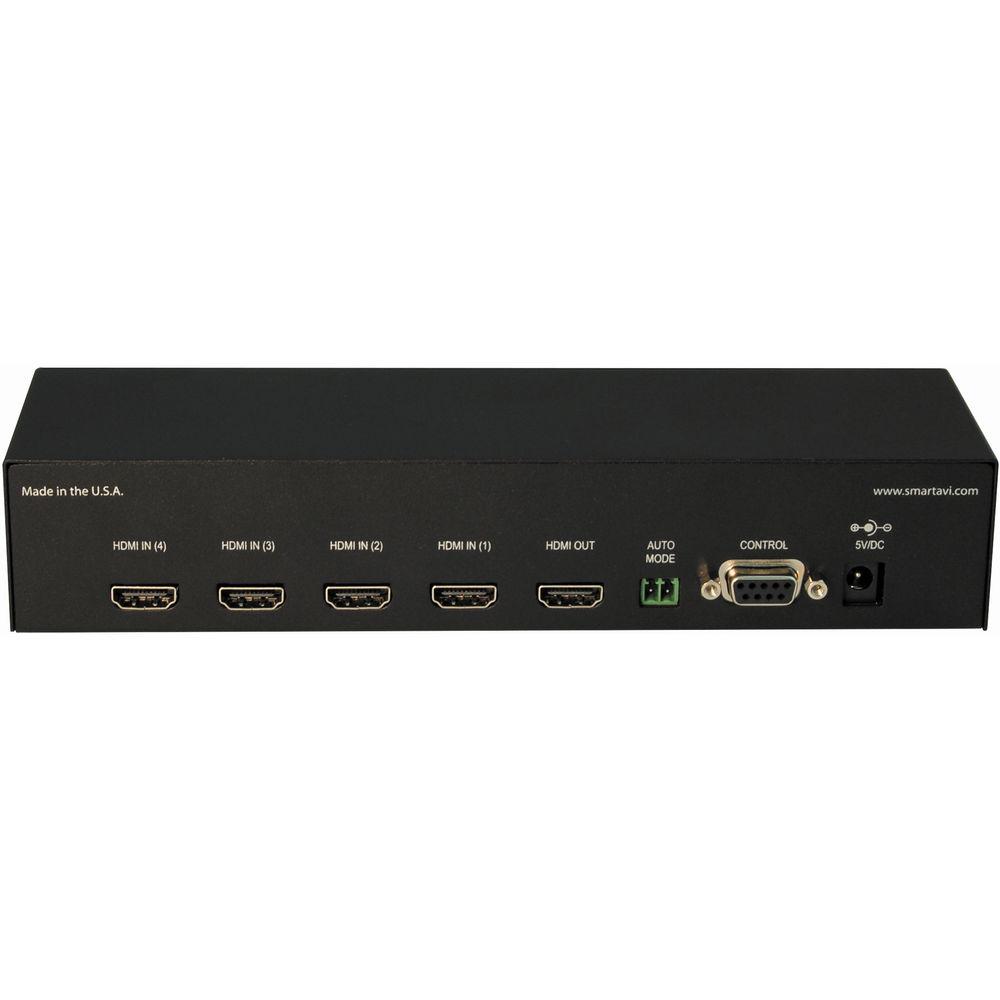

Product description The HDNeT-4P 4 x 1 HDMI Switcher from Smart AVI allows you to connect up to four HDMI appliances to one monitor, HDTV, projector, or other type of HDMI display. The Switcher supports HDCP so that you will be able to watch copy-protected content such as commercial Blu-ray DVDs. It features EDID (Extended Device ID) learning so that the specifications of your display can be relayed accurately back to the sending device during the initial "hand-shake" process. EDID helps ensure video and audio play back reliably and at the highest mutual quality shared between the sending and receiving device.
The HDNeT-4P can be controlled locally via two front panel buttons or using the IR remote, or it can be connected to a third-party RS-232 control system for remote or centralized operation. In automatic switching mode the switcher will automatically switch to the next device when the device connected to the input above it is powered off. - Connect four HDMI components to one HDTV monitor or display
- Front panel switching control
- EDID learning of any monitor
- Maintains 480p, 720p, 1080i, and 1080p video formats
- Supports HDMI 1.3 digital audio format: LPCM, Dolby-AC3, DTS7.1, or DSD
In the Box Smart-AVI HDNeT-4P 4 x 1 HDMI Switcher Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDNeT-4P 4 x 1 HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDN-4PS Specs | | | Video Amplifier Bandwidth | 1.65 Gbp/s | | Input Video Signal | 1.2 V | | Input DDC Signal | 5 V | | Supported Resolutions | Up to 1080p | | | | Input | 4 x HDMI | | Output | 1 x HDMI | | | | Control | IR Remote: 3.5 mm mini connector / 38 kHz
Front Panel: 2 buttons
RS-232: 9600 bp/s on DB9 female connector | | Power Requirements | 5 VDC | | Dimensions | 9.1 x 1.8 x 2.5" / 231 x 44.5 x 63.5 mm | | Weight | 2.5 lb / 1.1 kg |
