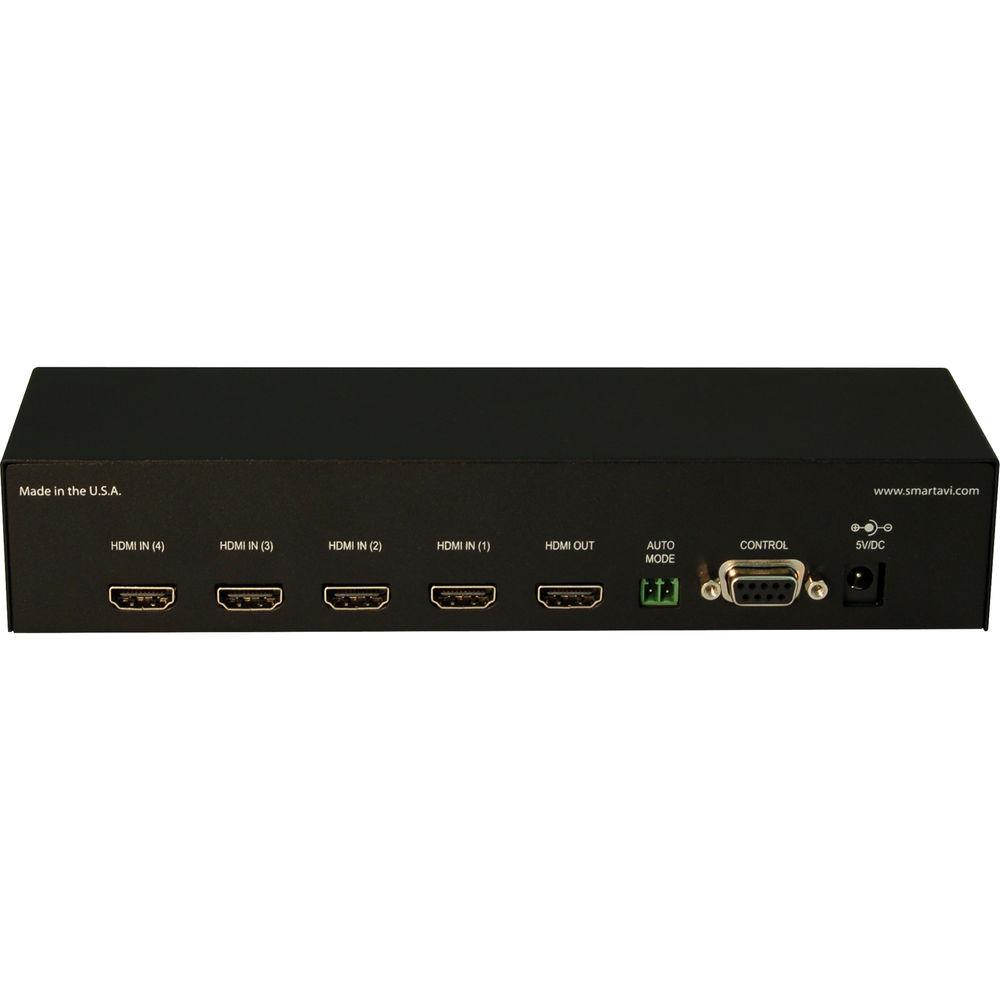

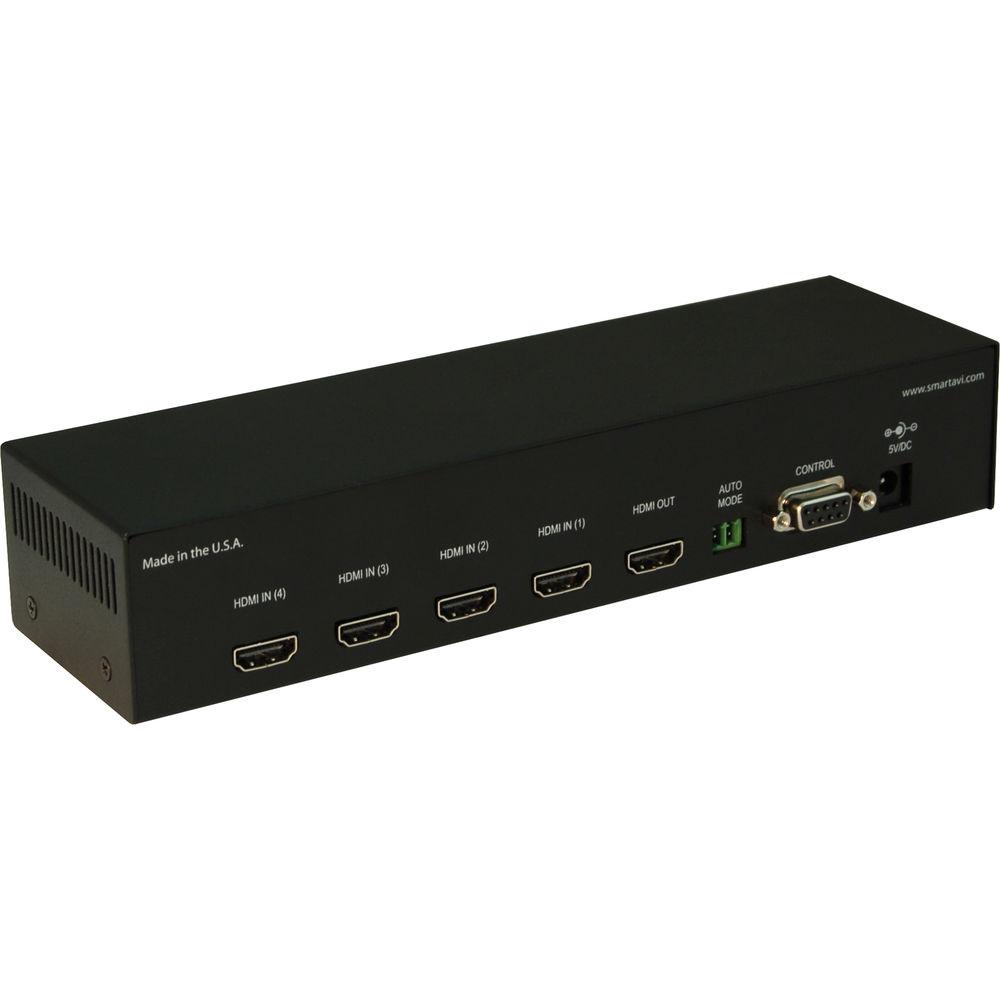

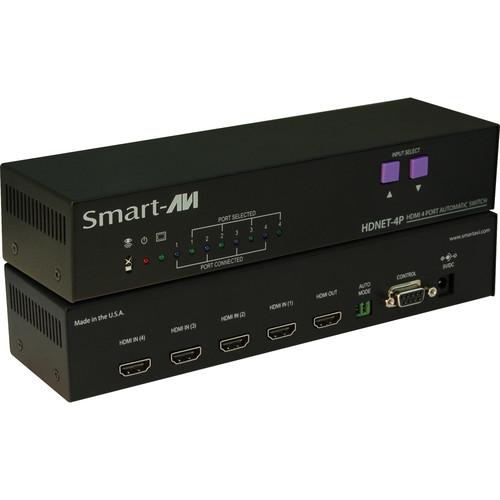

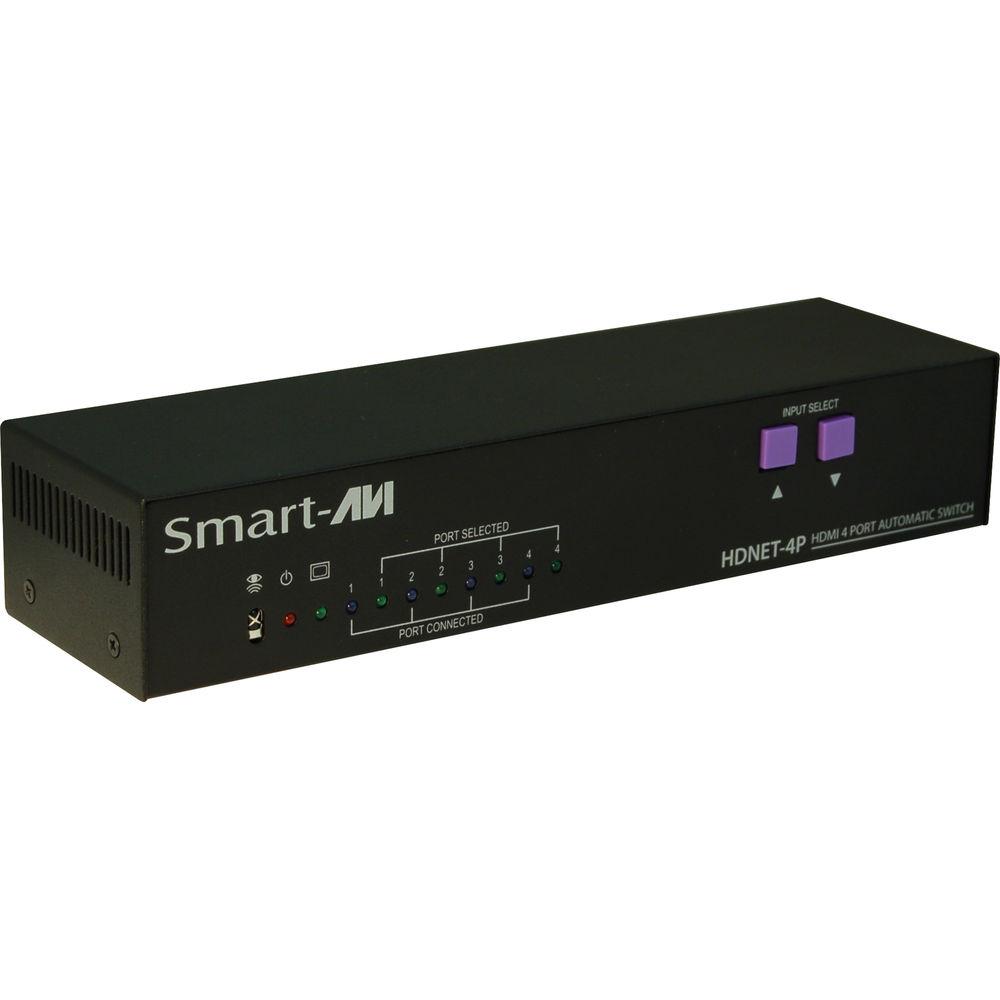

User Manual for Smart-AVI HDNET-4PS Four-Port HDMI Automatic Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDNET-4PS Four-Port HDMI Automatic Switch
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI HDNET-4PS Four-Port HDMI Automatic Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

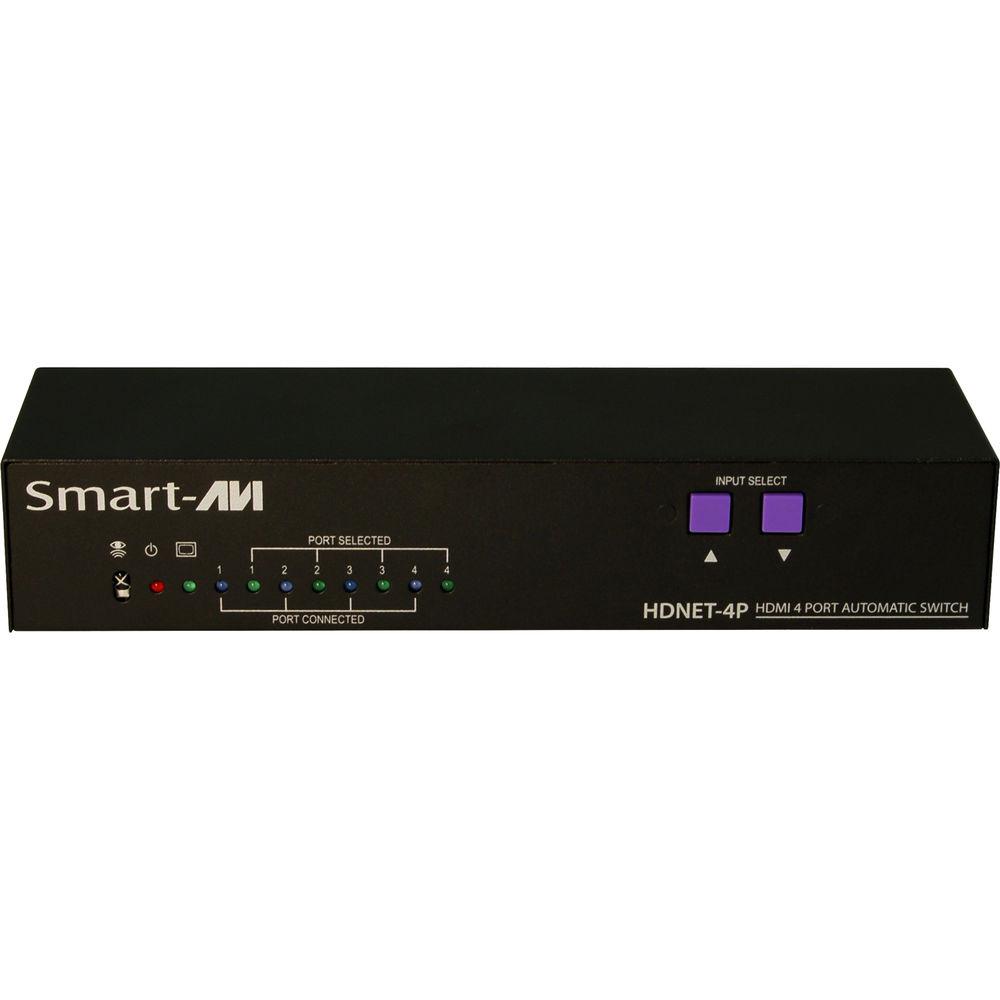

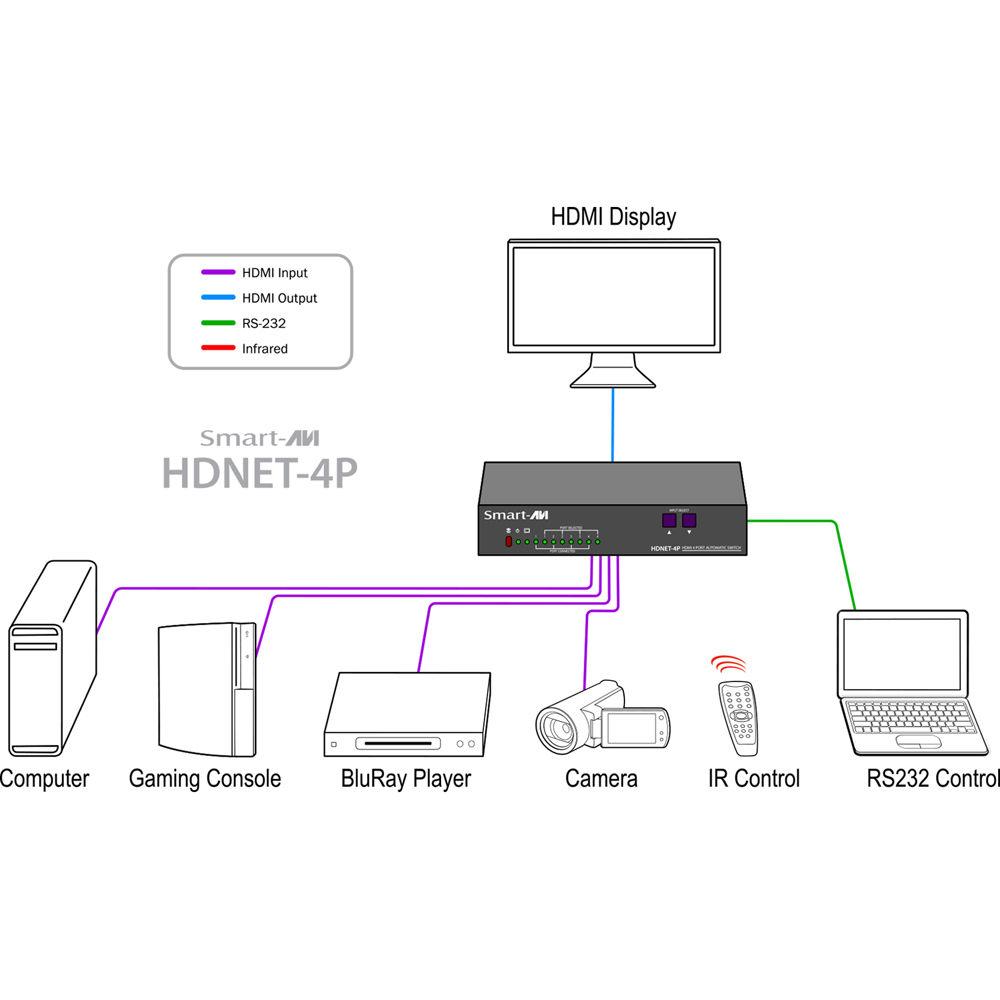

Product description The HDNET-4PS Four-Port HDMI Automatic Switch from Smart-AVI allows you to connect up to four HDMI devices to one display screen for easy switching between sources. You can also use a single HDTV monitor to view transmitted high definition sources, such as Blu-ray players, gaming consoles, computers, or cable receivers. The switch features EDID learning of any monitor and offers an automatic switching mode. When configured as an automatic switcher, the HDNET-4PS will automatically switch to the next device when the higher input is powered off, enabling you to control multiple devices. - Front panel switching control
- EDID learning of any monitor
- Maintains 480p, 720p, 1080i, and 1080p video formats
- Supports HDMI 1.3 digital audio format, LPCM, Dolby-AC3, DTS7.1, DSD
- Connect four HDMI components to one HDTV monitor
In the Box Smart-AVI HDNET-4PS Four-Port HDMI Automatic Switch Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDNET-4PS Four-Port HDMI Automatic Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDNET-4PS Specs | Connectors | IR: 0.1" / 3.5 mm Mini connector with 38 kHz
HDMI: Type A 19-pin, female
RS-232: DB9, female @ 9600 bps | | Video Amplifier Bandwidth | 1.65 GB per sec | | Input Video Signal | 1.2 V | | Input DDC Signal | 5 V | | Single Link Range | 1080p | | Control Buttons | Two front panel pushbuttons | | Power Requirement | 5 VDC | | Dimensions | 9.1 x 1.8 x 2.5" / 23.1 x 4.4 x 6.4 cm | | Weight | 2.5 lb / 1.1 kg |
