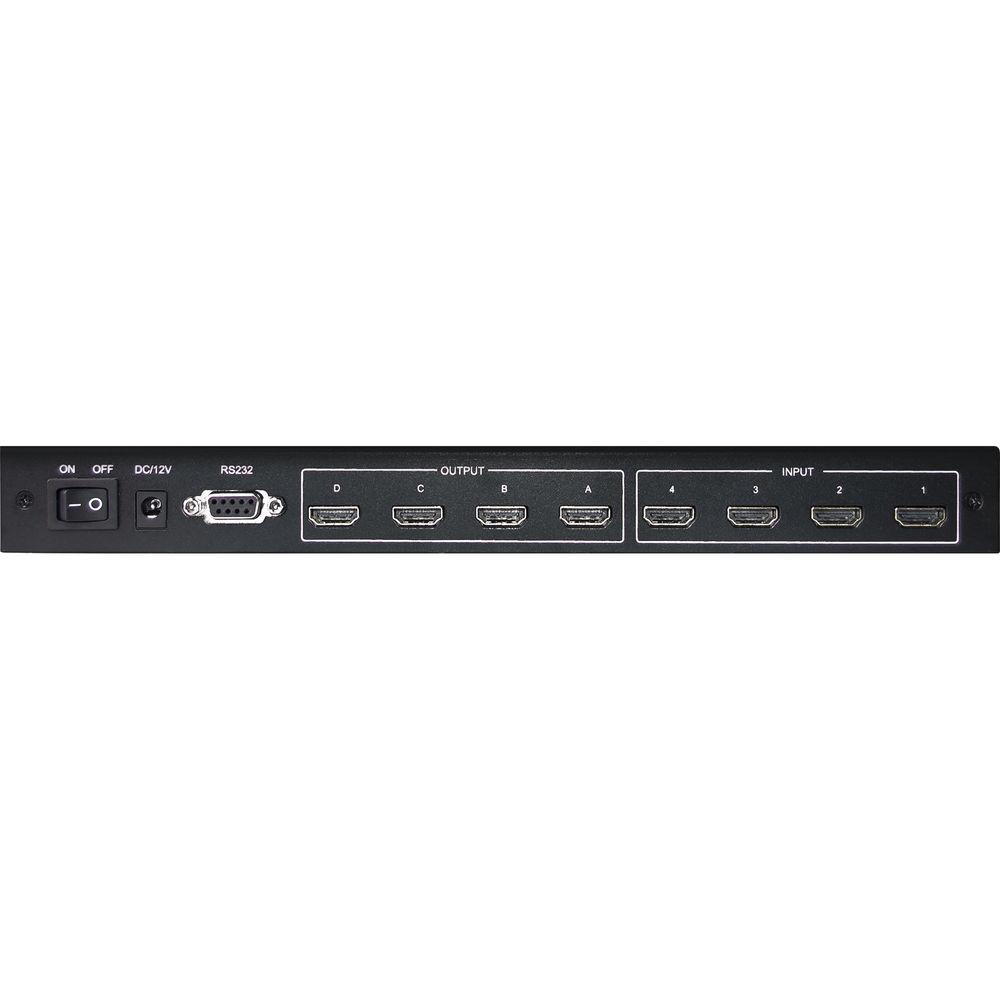

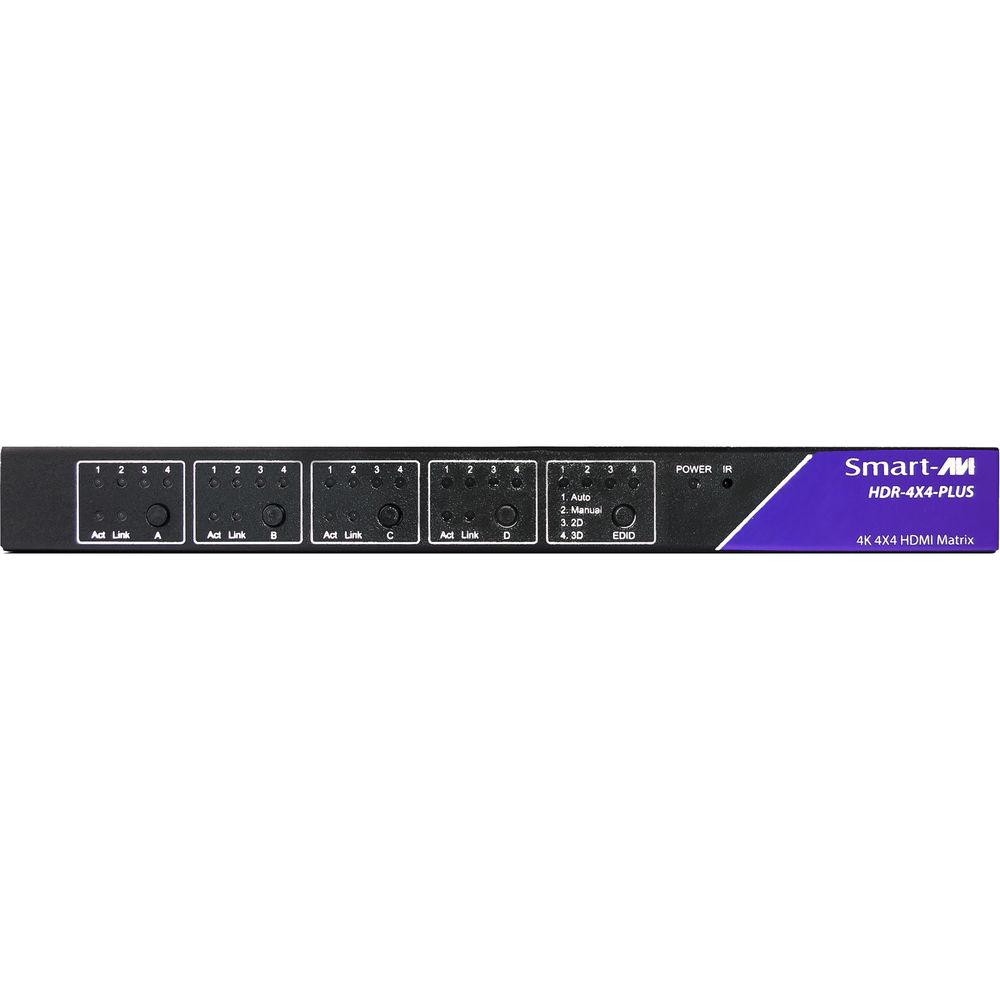

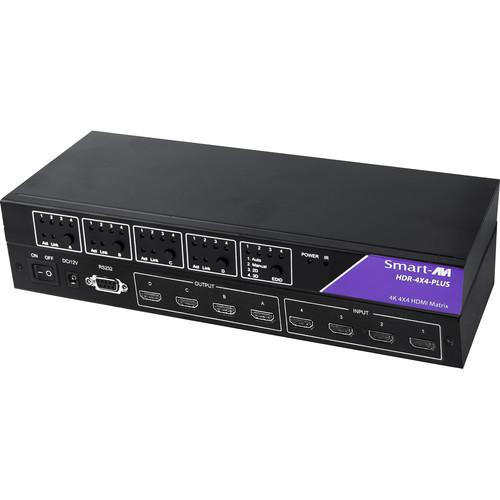

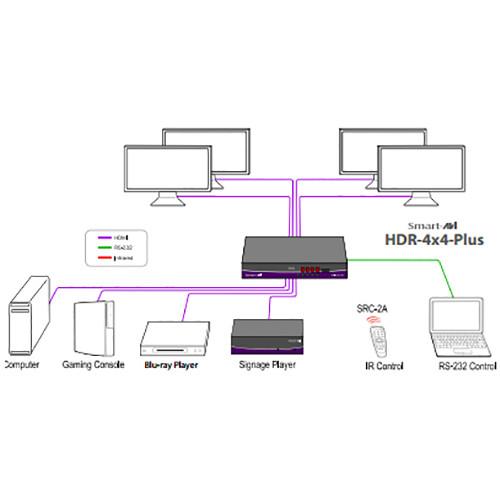

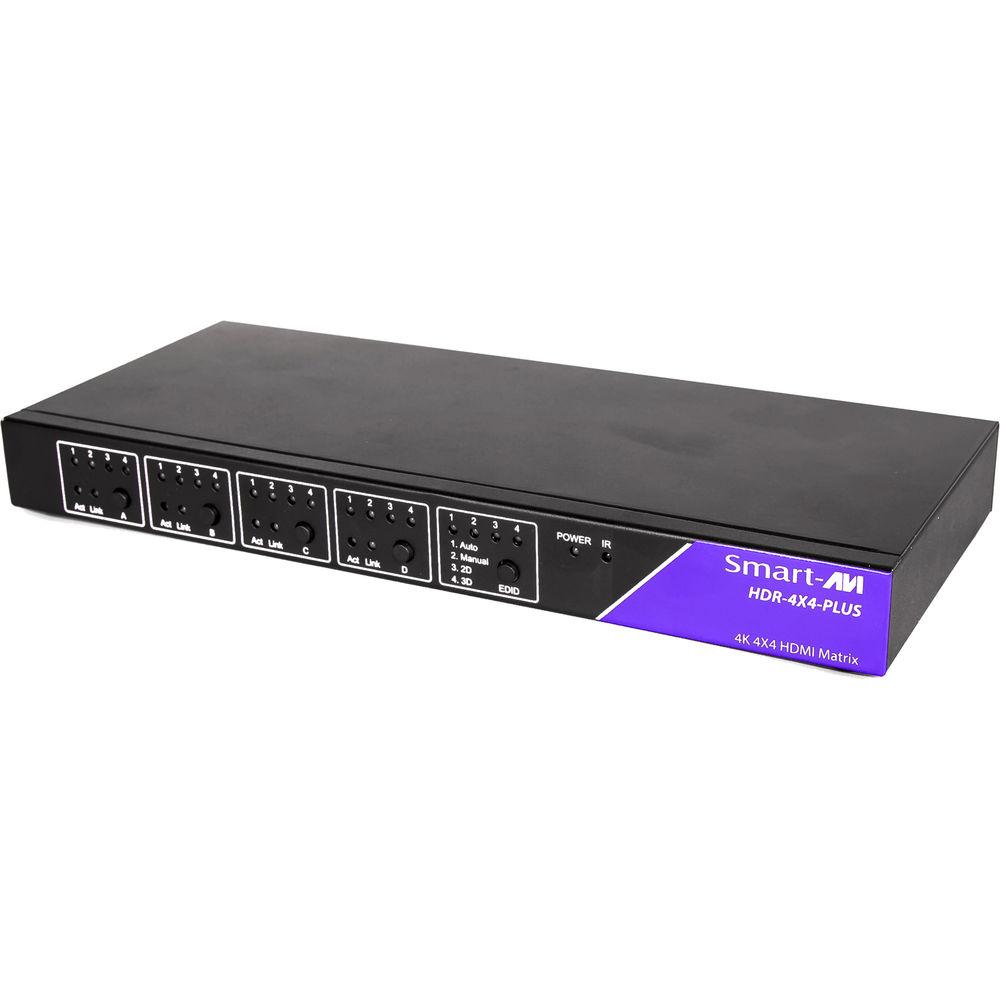

Product description The HDR-4X4-PLUS-S 4K/2K HDMI 4X4 Matrix Switch with Remote from Smart-AVI allows users to independently route four inputs to four displays, eliminating the need to disconnect and reconnect HDMI sources to a single display. It is compatible with computer sources, live HD television feeds, Blu-ray players, gaming consoles, video cameras, and a variety of other devices. Four output connections provide flexibility while routing HD audio and video signals to four displays. There are front-panel buttons, an RS-232 port, and an included infrared remote control for effortless routing of the signals. - Supports 4K/2K, input/output
- Non-blocking 4x4 HDMI matrix switch
- Distributes any of the four inputs to any of the four HDMI output displays
- HDCP and HDMI 1.4 compliant
UPC: 813280017886 In the Box Smart-AVI HDR-4X4-PLUS-S 4K/2K HDMI 4X4 Matrix Switch with Remote IR Remote Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDR-4X4-PLUS-S 4K 2K HDMI 4X4 Matrix Switch with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDR-4X4-PLUS-S Specs | Format | HDMI | | Signal Connectors | Input Interface: 4 x HDMI (7.1 ch audio and video)
Output Interface: 4 x HDMI (7.1 ch audio and video) | | DVI Compliance | Single-link DVI-D 1.1 with adapter | | HDCP Compliance | 1.0 / 1.1 | | Video Bandwidth | Single-link 340 MHz (10.2 GB per sec) | | Resolution | Up to 3840 x 2400 @ 30 Hz | | Control | Front Panel: Tact switch
IR: Remote control with IR Type 3
PC: RS-232 | | Power | External: 100 to 240 VAC, 5 VDC, 2 A @ 10 W | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% RH | | Approvals | UL, CE, ROHS compliant | | Dimensions | 11.8 x 1.3 x 5.0" / 30.0 x 3.2 x 12.7 cm | | Weight | 1.5 lb / 0.7 kg |
