User Manual for Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

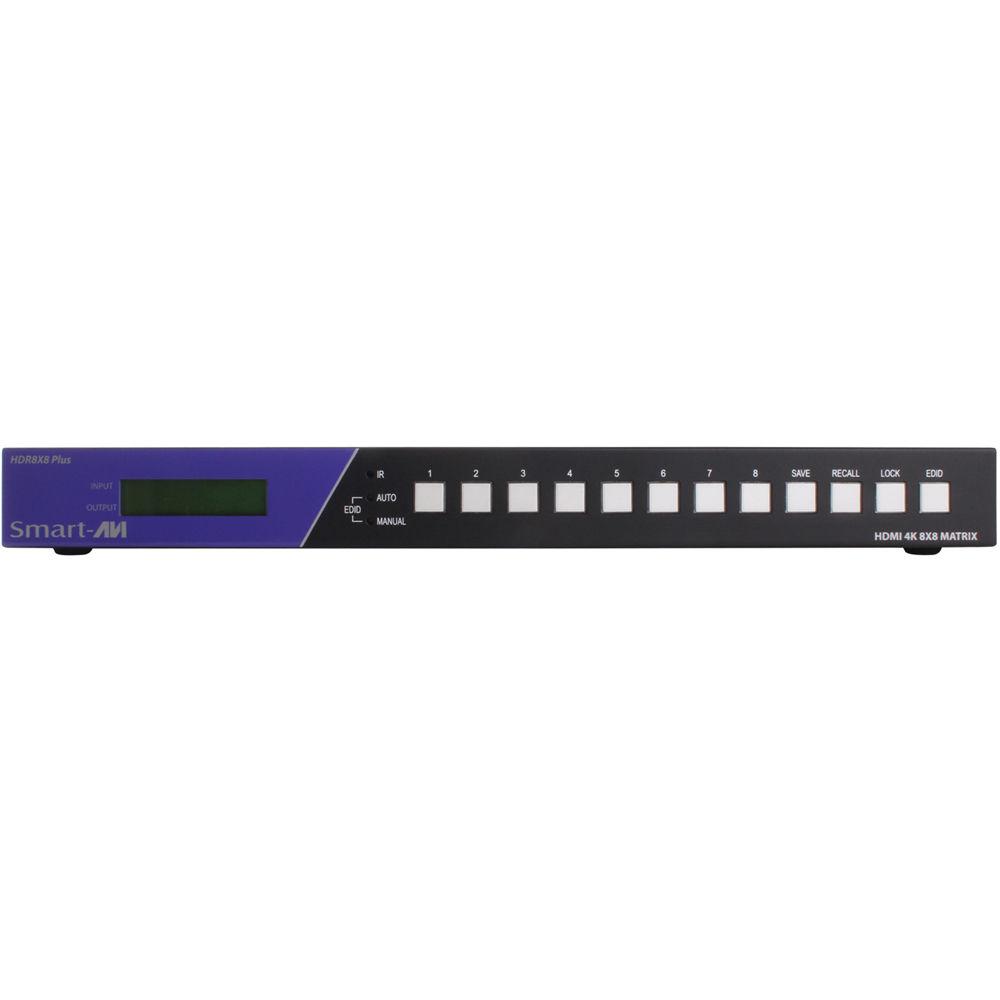

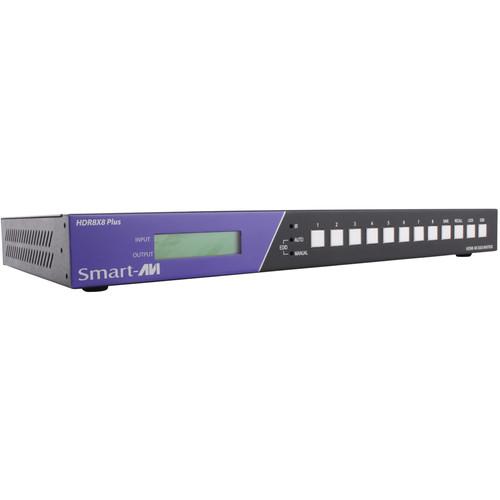

Product description The HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote from Smart-AVI has eight sources distributing to eight outputs. This offers the flexibility of sending HD video and audio signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMI cables to a single display. Controlling the matrix switch is simple with the front-panel buttons, the included infrared remote control, and the RS-232 port. The TCP/IP controls can also be used to manage the unit from a web browser. - Supports 4K input/output (3840 x 2160 @ 30 Hz)
- Non-blocking 8x8 HDMI matrix switch
- Distribute any eight inputs to any eight HDMI output displays
- HDCP and HDMI 1.4 compliant
- Integrated TCP/IP controller

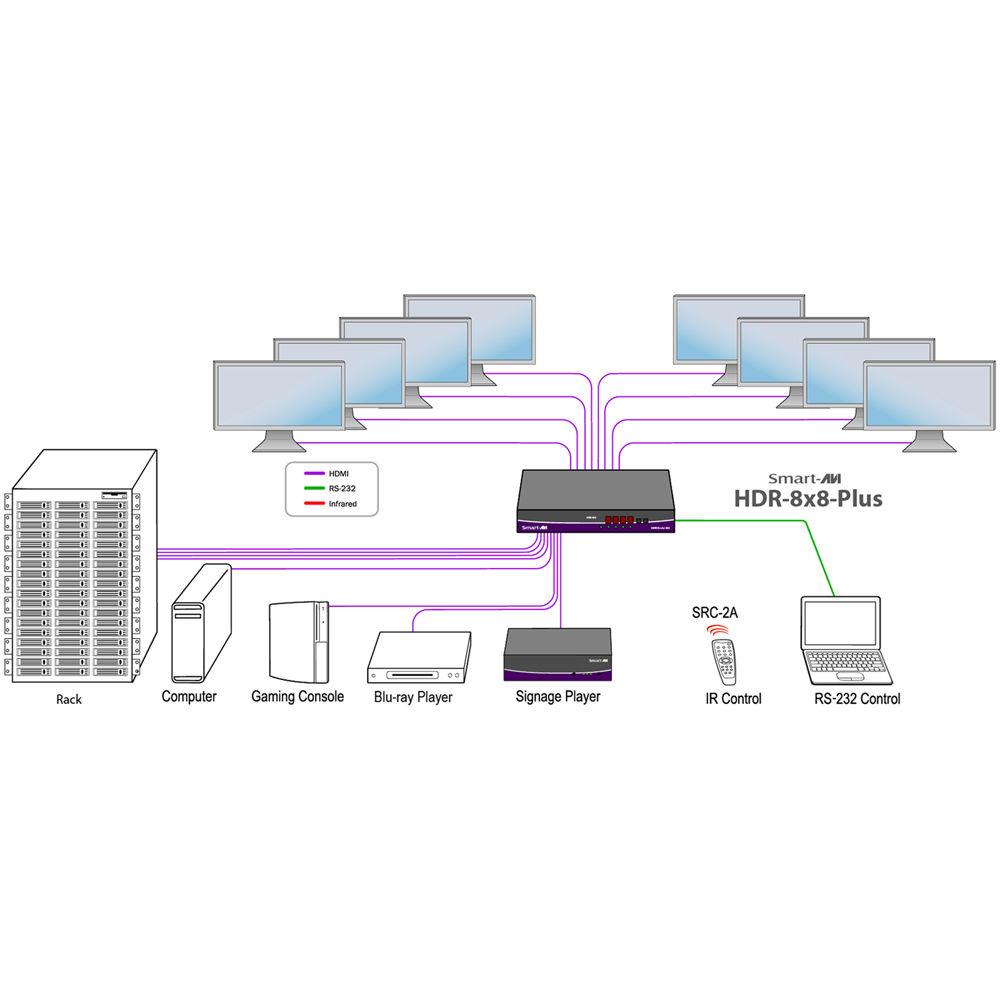

- Ideal for use with digital media at airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, wall displays, and security
UPC: 813280015509 In the Box Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote SRC-2A Infrared Remote Control for SmartAVI Video Matrix Switches 12 VDC 4A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

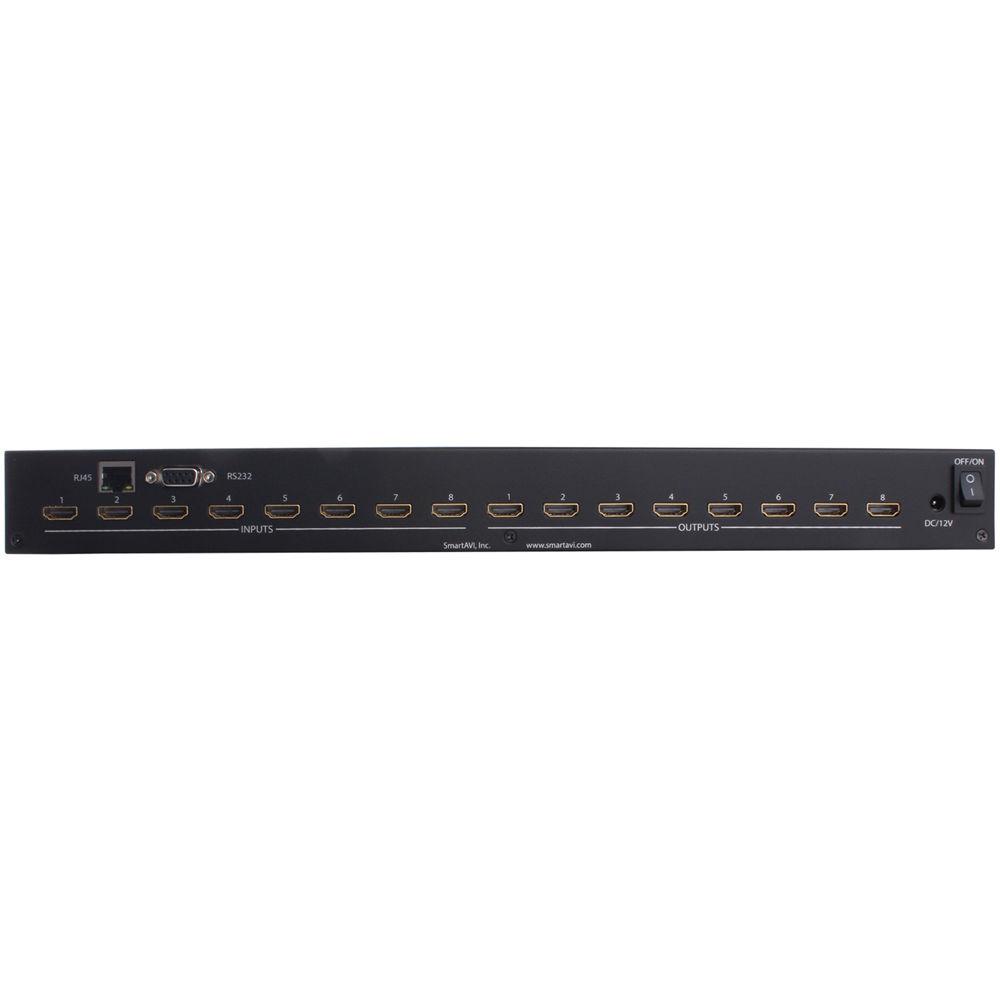

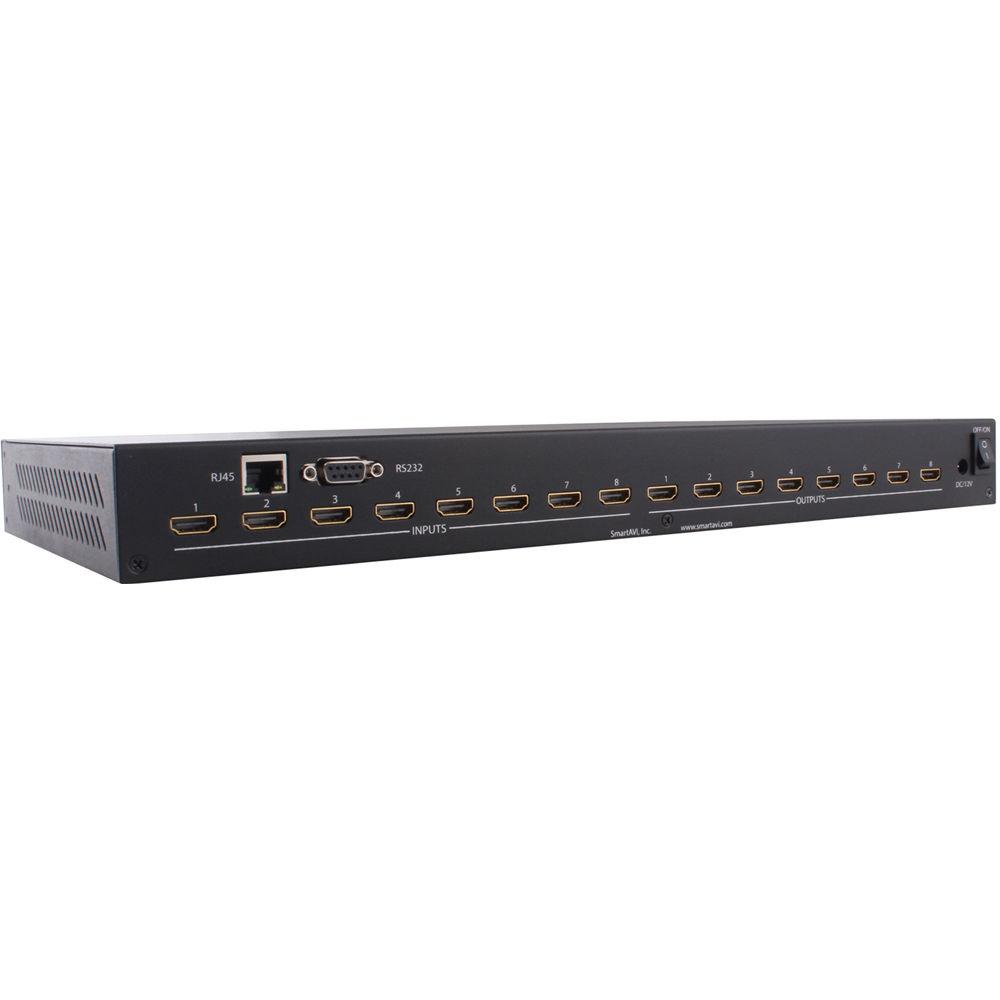

Technical parametersSmart-AVI HDR-8X8-PLUS-S Specs | | | Format | HDMI 1.4 | | DVI Compliance | Single-link DVI-D 1.1 with adapter | | HDCP Compliance | 1.0 / 1.1 | | Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) | | Resolution | Up to 3840 x 2160 @ 30 Hz | | Input Interface | 8 x HDMI (7.1 Channel audio & video) | | Output Interface | 8 x HDMI (7.1 Channel audio and video) | | Connector | 1 x HDMI Type A, female | | Maximum Cable Length | 20' (6.1 m) | | | | Front Panel | Tact switch | | IR | Via remote control with IR type 3 | | PC | RS-232 control | | TCP/IP | Control: Via web browser | | | | Power Supply | External 100 to 240 VAC / 12 VDC, 4 A | | Maximum Power Consumption | 20 W | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Approvals | UL, CE, RoHS | | Dimensions | 17.2 x 8.3 x 1.7" (43.6 x 21.1 x 4.4 cm) | | Weight | 98.8 oz (2800 g) | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 20.0 x 12.3 x 3.2" |
