User Manual for Smart-AVI HDR4X2PROS 4K 2K HDMI 4x2 Matrix Switch with Remote Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDR4X2PROS 4K 2K HDMI 4x2
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI HDR4X2PROS 4K 2K HDMI 4x2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

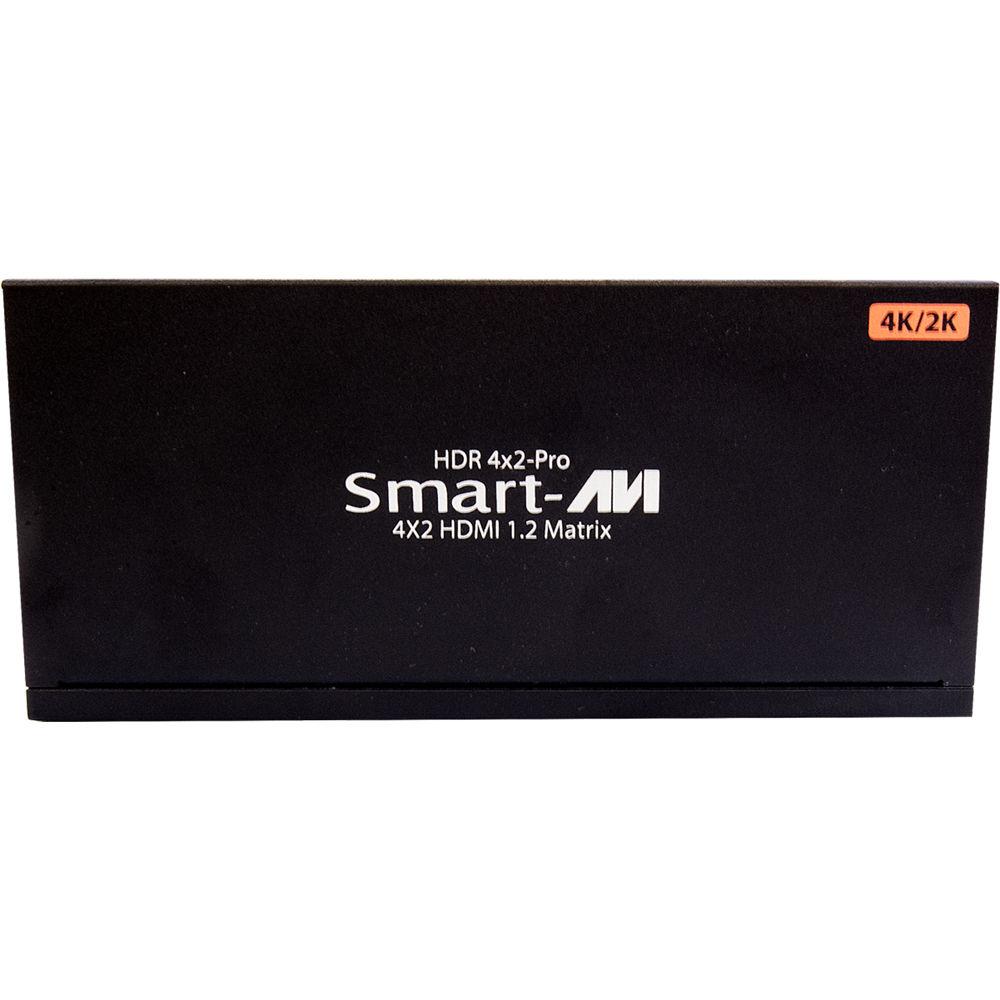

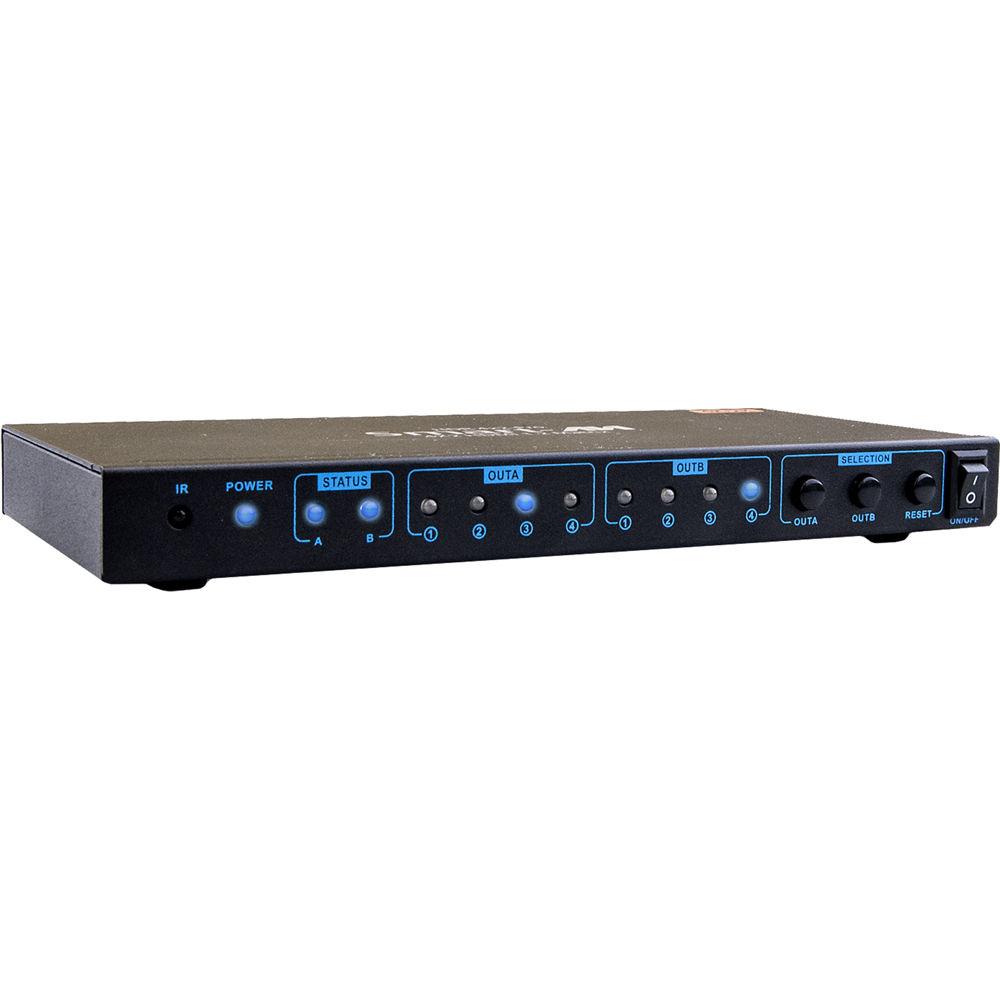

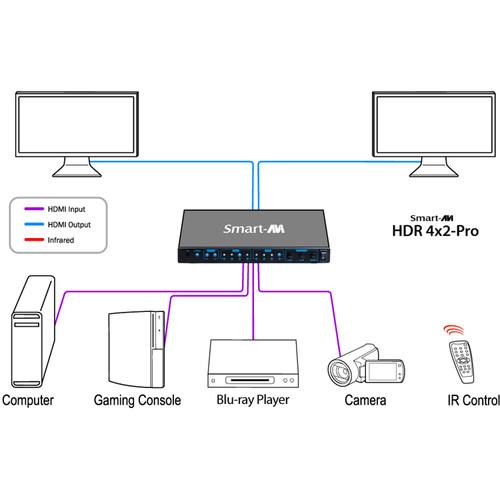

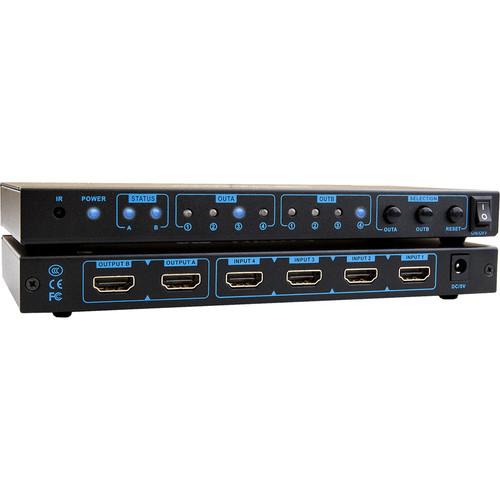

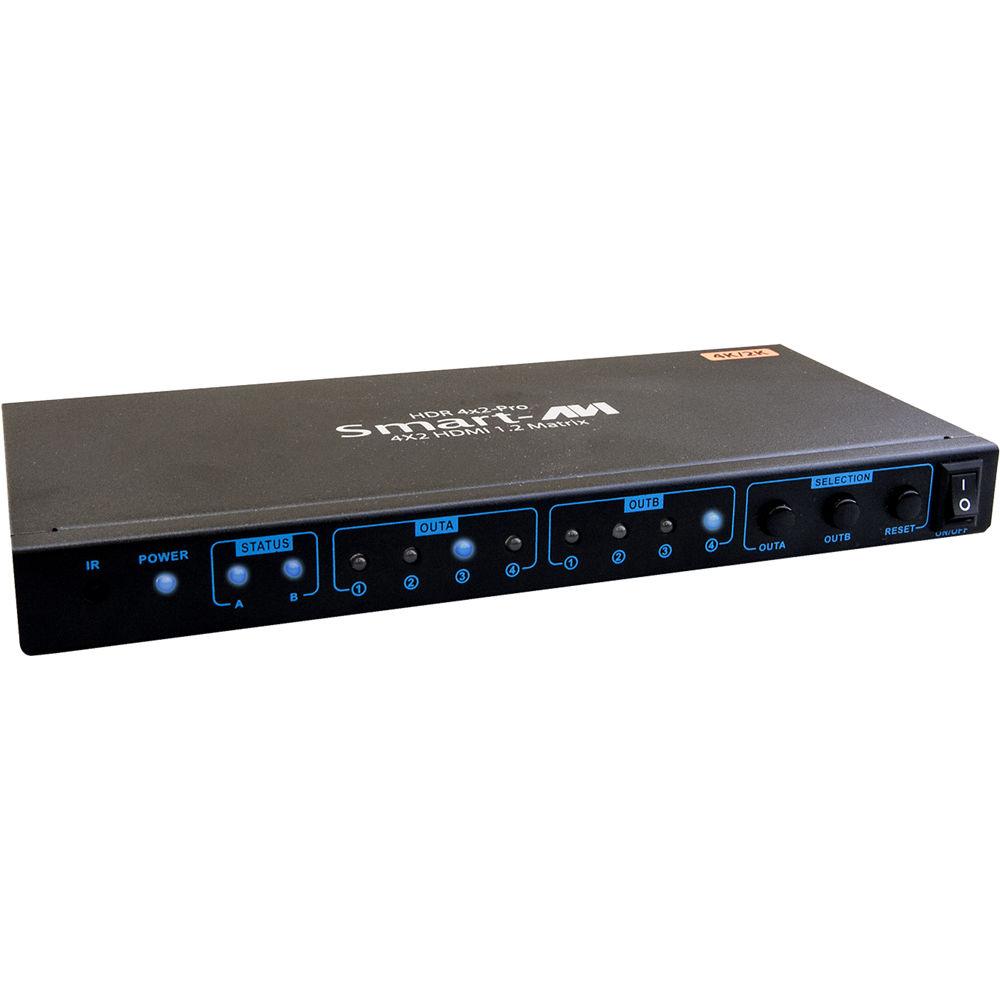

Product description The HDR4X2PROS 4K/2K HDMI 4x2 Matrix Switch with Remote from Smart-AVI allows users to switch four HDMI inputs to two high definition displays, eliminating the need to disconnect and reconnect HDMI sources to a single display. It is compatible with computer sources, live HD television feeds, Blu-ray players, gaming consoles, video cameras, and various other devices. There are two input connections for providing flexibility when routing HD audio and video signals with two displays. Front panel tactile buttons and an included infrared remote control allow you to easily route the signals. - Supports 4K/2K, input/output
- Non-blocking 4x2 single-link HDMI matrix switch
- Distributes any of the four inputs to any combination of the two HDMI output displays
- HDCP and HDMI 1.4 compliant
UPC: 813280017909 In the Box Smart-AVI HDR4X2PROS 4K/2K HDMI 4x2 Matrix Switch with Remote IR Remote Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDR4X2PROS 4K 2K HDMI 4x2 Matrix Switch with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

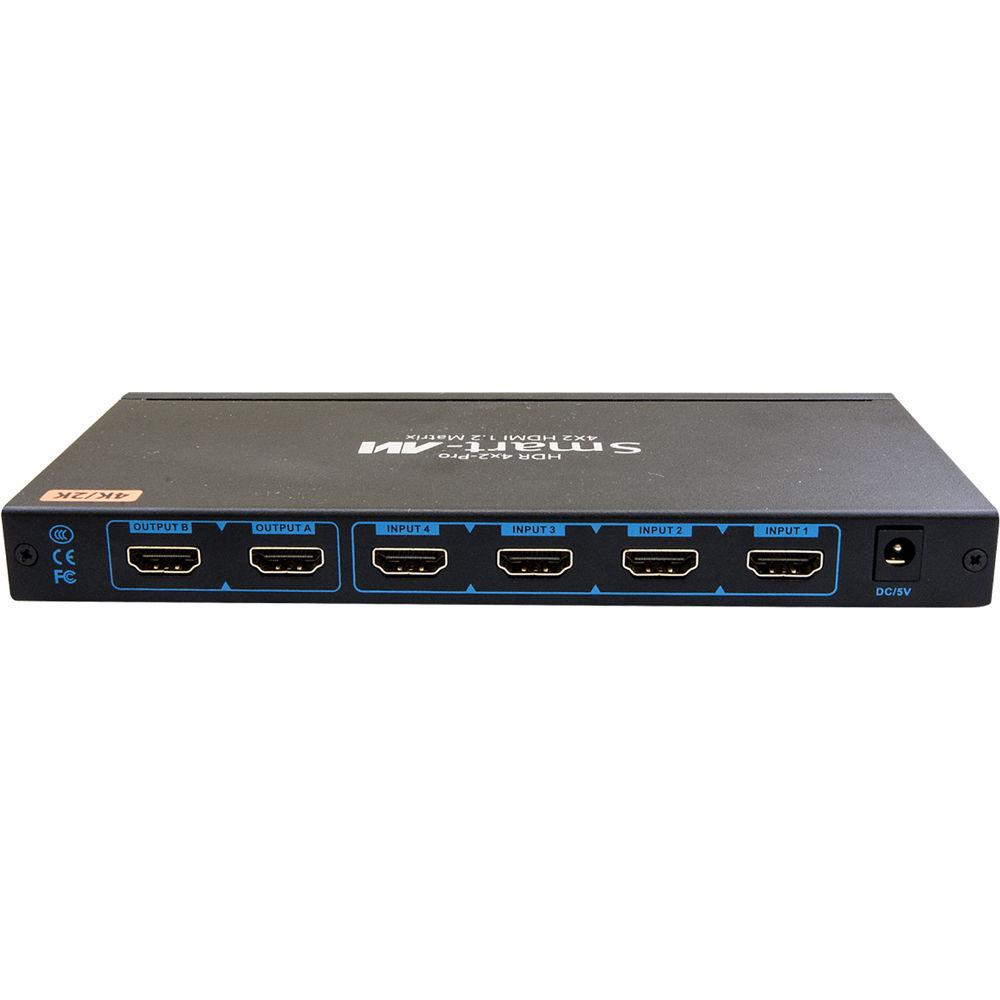

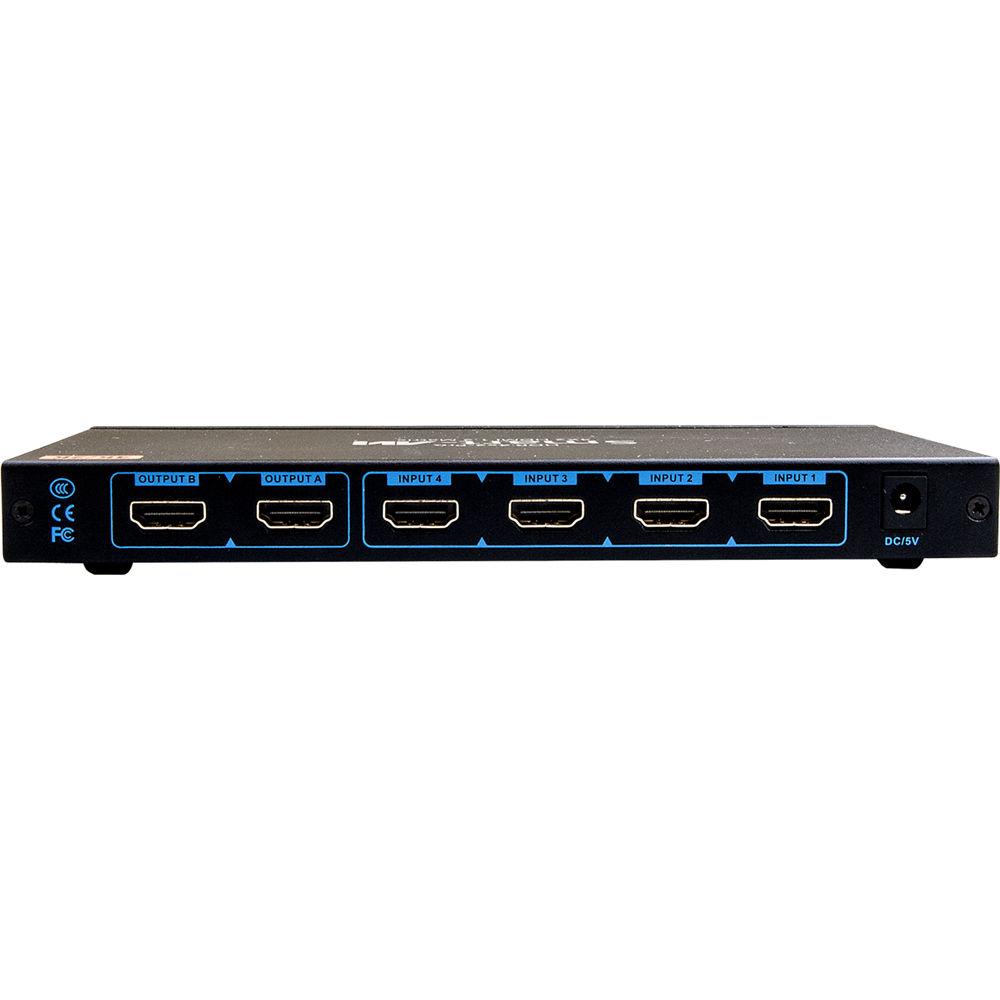

Technical parametersSmart-AVI HDR4X2PROS Specs | Format | HDMI 4K/2K | | Connectors | Input Interface: 4 x HDMI (7.1 ch audio and video)
Output Interface: 2 x HDMI (7.1 ch audio and video) | | DVI Compliance | Single-link DVI-D 1.1 with adapter | | HDCP compliance | 1.0 / 1.1 | | Video Bandwidth | Single-link 340 MHz (10.2 GB per sec) | | Resolution | 1080p, 1080i, 720p, 720i, 480p, 480i | | Maximum Distance | 25' / 7.6 m | | Control | Front Panel: Tact switch
IR: Remote control with IR Type 3 | | Power | External: 100 to 240 VAC, 5 VDC, 2 A @ 10 W | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% RH | | Approvals | UL, CE, ROHS compliant | | Dimensions | 7.8 x 0.8 x 3.6" / 19.7 x 1.9 x 9.2 cm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.8 x 6.4 x 4.4" |
