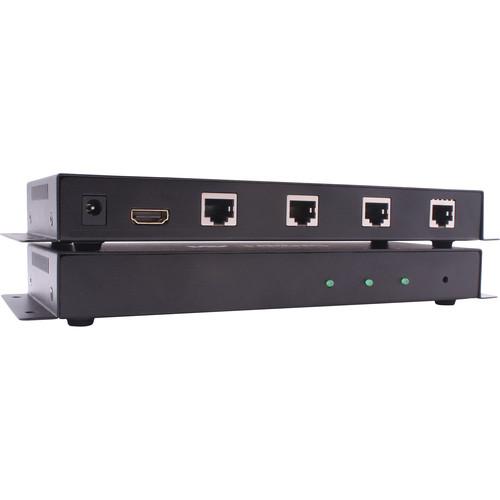

User Manual for Smart-AVI HDX-400-Pro HDMI over Four Cat5e 6 6 STP Extender Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDX-400-Pro HDMI over Four Cat5e
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
 |
User manual for the Smart-AVI HDX-400-Pro HDMI over Four Cat5e contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

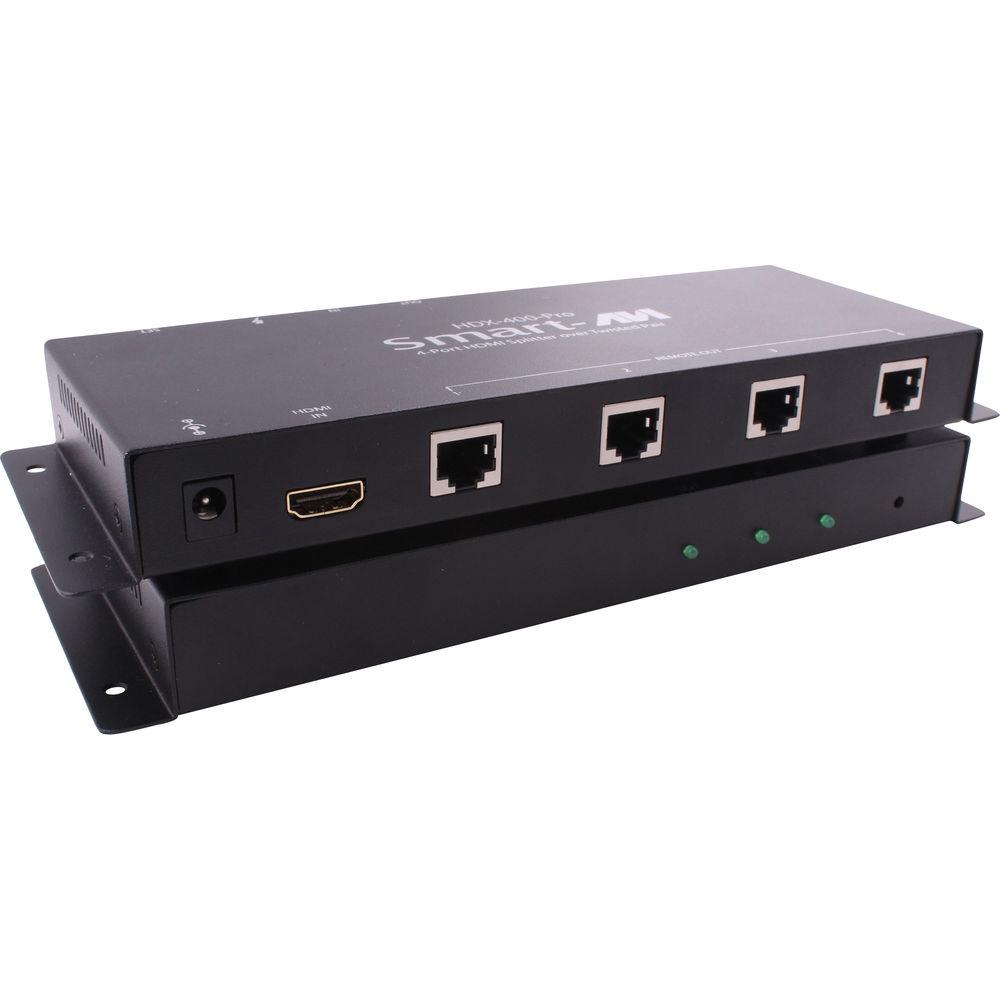

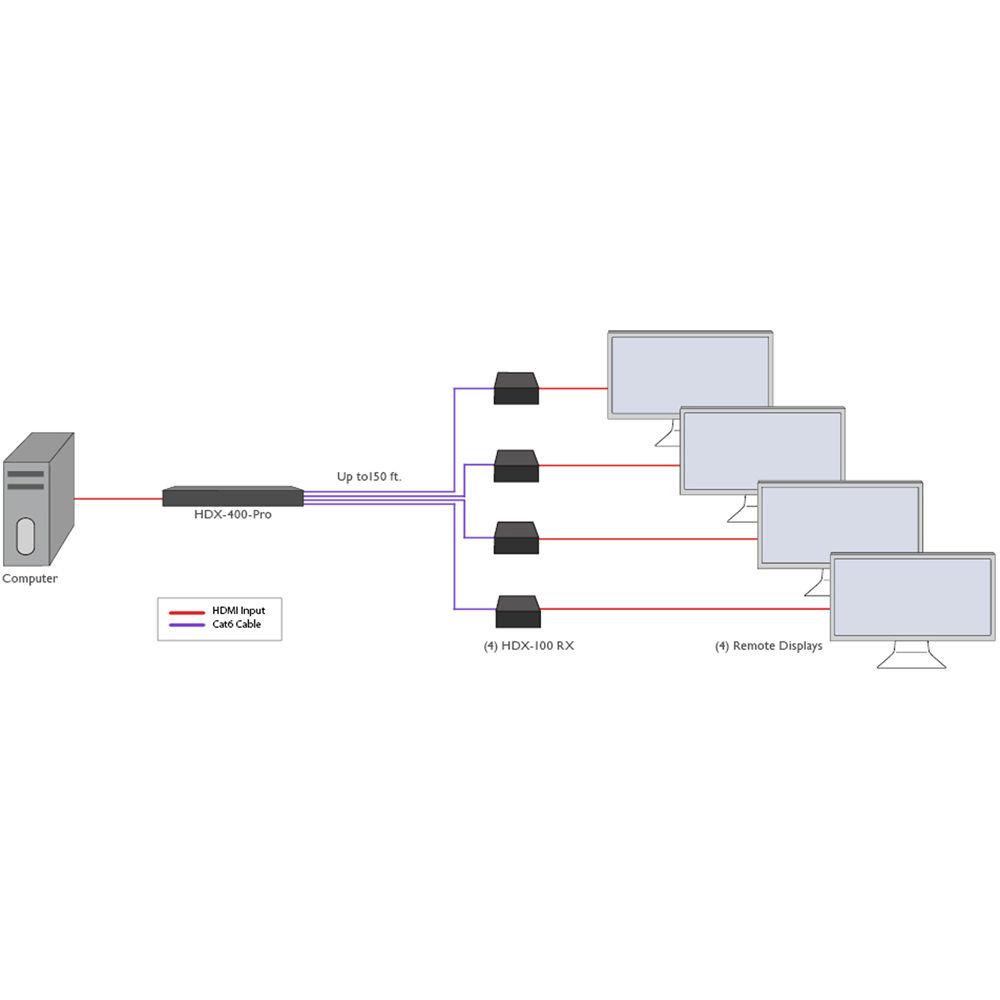

Product description The HDX-400-Pro HDMI over Four Cat5e/6/6 STP Extender from Smart-AVI is designed to extend an HDMI signal, via CatX cable, up to 180 ft away to four remote displays simultaenously. The HDX-400-Pro utilizes four HDX-RX100 receivers (sold separately). - Distribute and extend one HDMI source to four displays via Cat5e/6/6 STP cables
- Signal extension up to 180' away
- Supports 1080p, 1080i, 720p, 576p, 576i, 480p, and 480i HDMI resolutions
- Supports DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby-AC3, and DSD audio formats
- Applications
- Retail locations
Bars and lounges
Showroom floors
Convention booths
Hotel and resort check-in counters
Corporate and educational demonstrations
Houses of worship
Medical facilities
Recording and editing studios UPC: 813280015868 In the Box Smart-AVI HDX-400-Pro HDMI over Four Cat5e/6/6 STP Extender PS5VDC4A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-400-Pro HDMI over Four Cat5e 6 6 STP Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

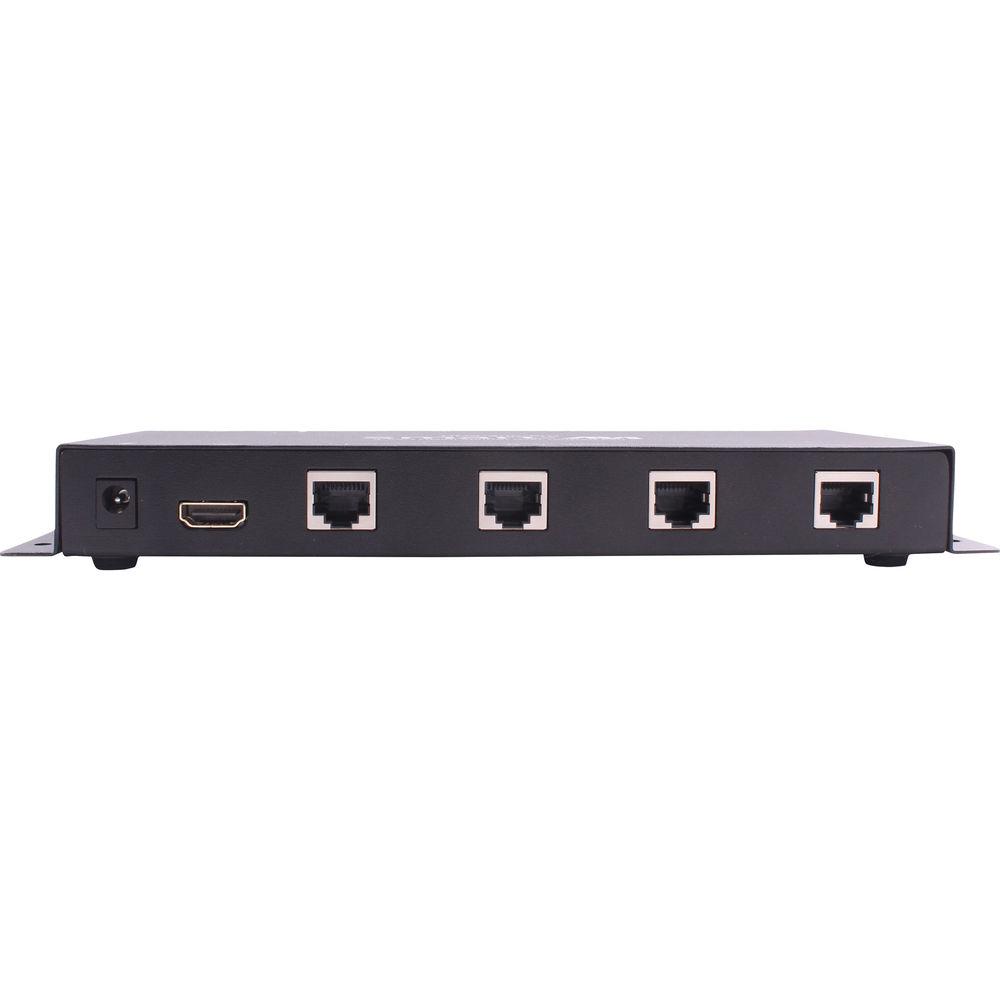

Technical parametersSmart-AVI HDX-400-PROS Specs | HDMI Resolution | 1080p, 1080i, 720p, 576p, 576i, 480p, 480i @ 60/50/24 fps | | Audio Input Format | DTS-HD, Dolby-True HD, LPCM7.1, DTS, Dolby-AC3, DSD | | Audio Output Format | LPCM7.1, DTS, Dolby-AC3, DSD | | Connectors | 1 x HDMI in
4 x RJ45 out
1 x DC Barrel, power | | Maximum Distance | Up to 180' | | Maximum Pixel Clock | 225 MHz | | Rate | 6.75 Gbps | | Input Video Signal | 0.5 - 1.5 V p-p | | Output DDC Signal | 5 V p-p | | Current | 3000 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 0.5 to 90% RH, non-condensing | | Dimensions | 1.1 x 9.1 x 3.1" (2.9 x 23.2 x 7.9 cm) | | Weight | 0.25 lb (0.11 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.7 x 5.2 x 4.1" |
