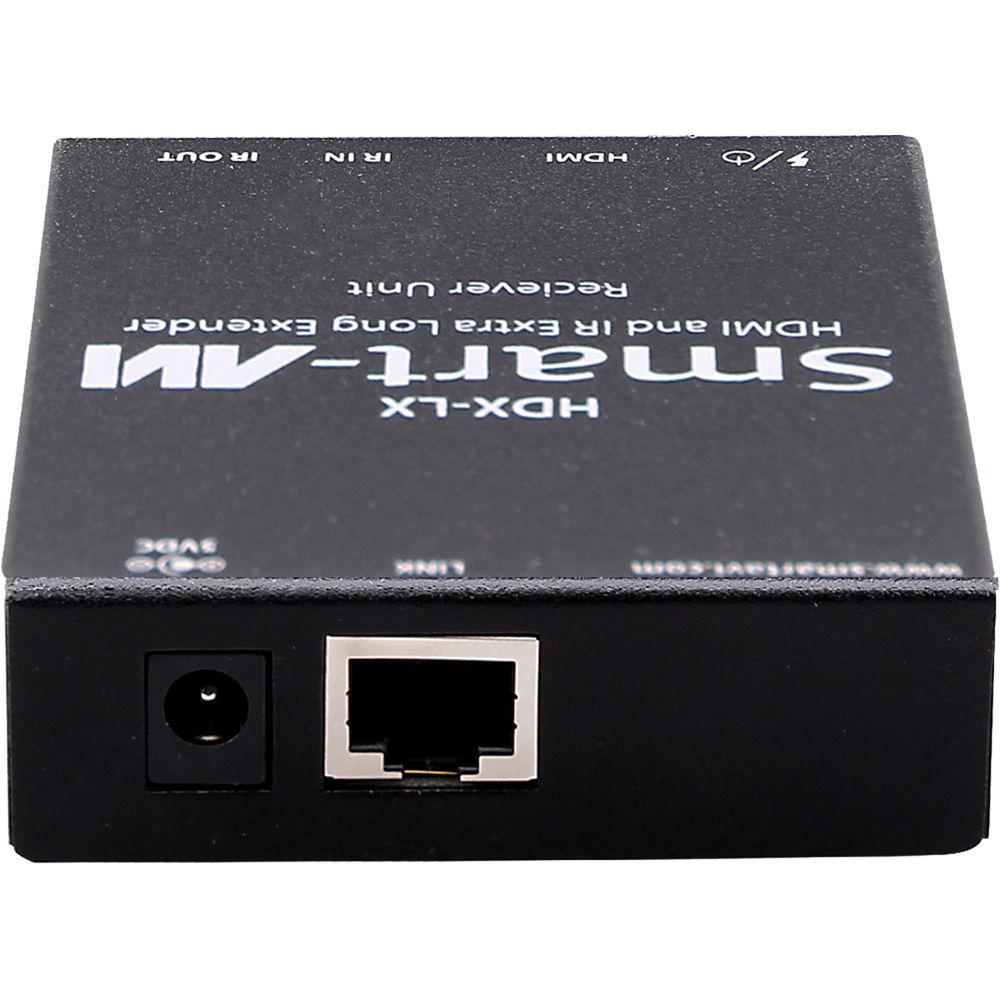

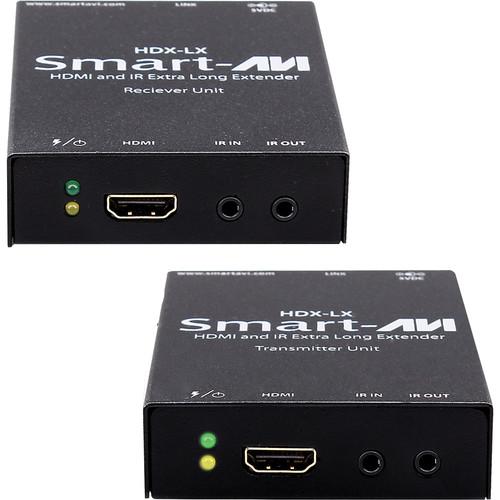

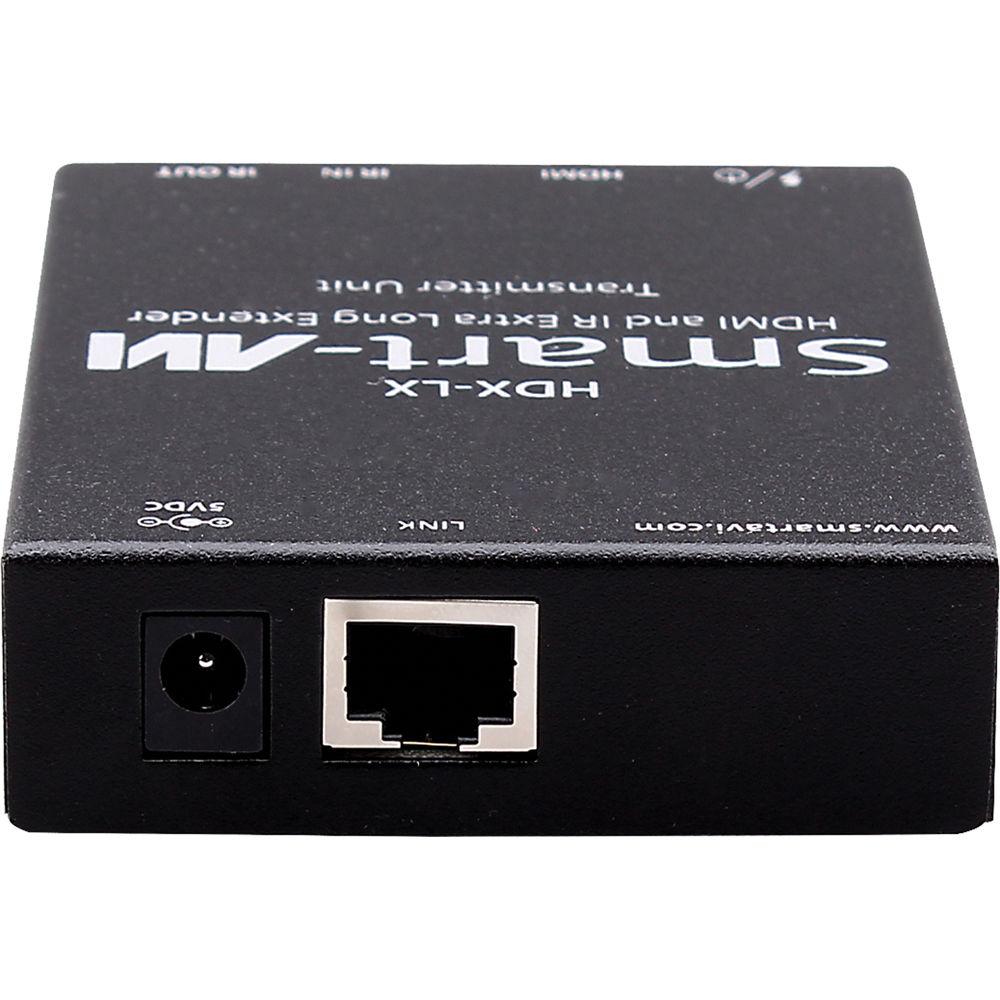

Product description The HDX-LX HDMI and IR Extender from Smart-AVI includes the HDX-LX-TX Transmitter and HDX-LX-RX Receiver, each of which comes with the PS5VD2A Power Supply. The extender uses a single CAT5 UTP cable to extend HDMI output to up to 250' (76m) from the source using HDBaseT technology. It is capable of transmitting uncompressed HD video up to 1080p (60 Hz @ 48-bit and 3D) at up to 3.4 Gb/s. It also supports transmitting Dolby TrueHD and DTS-HD MA audio signals. The extender is HDMI 1.3 / HDCP compliant, and supports bi-directional IR extension that simplifies controlling the video source. It is suitable for applications such as home theater, corporate / educational presentations, call centers, industrial workstations (long-range isolation), information terminals / kiosk, airport installations (air traffic control / passenger information), and educational environments with remote displays. - HDX-LX-TX HDMI and IR Transmitter The HDX-LX-TX HDMI and IR Transmitter from Smart-AVI uses a single CAT5 UTP cable to extend HDMI output to up to 250' (76m) from the source using HDBaseT technology when paird with the HDX-LX-RX Receiver. It is capable of transmitting uncompressed HD video up to 1080p (60 Hz @ 48-bit, and 3D) at up to 3.4 Gb/s. It also supports transmitting Dolby TrueHD and DTS-HD MA audio signals. The transmitter is HDMI 1.3 / HDCP compliant, and supports bi-directional IR extension that simplifies controlling the video source. It is suitable for applications such as home theater, corporate / educational presentations, call centers, isolated industrial workstations, information terminals / kiosk, airport installations (air traffic control / passenger information), and educational environments that require remote displays.
Features -
- Extends HDMI output over a single CAT5 UTP cable when paired with HDX-LX-RX (available separately)
- Transmits uncompressed HD video up to1080p (60 Hz @ 48-bit and 3D)
- Transmits 1080p video signal to up to 250’ (76m) from the source
- Data signals up to 3.4 Gb/s
- Uses HDBaseT technology
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Extends IR control signals for remote control
- HDMI 1.3 and HDCP compliance
- Supports bi-directional IR communication
- Designed and manufactured in USA
Applications -
- Home theater
- Corporate or educational presentations
- Call centers
- Industrial (long-range workstation isolation)
- Information terminals / kiosks
- Airport installations (ATC or passenger information)
- Educational environments with remote displays
UPC: 813280021814 - HDX-LX-RX HDMI and IR Receiver The HDX-LX-RX HDMI and IR Receiver from Smart-AVI uses a single CAT5 UTP cable to receive HDMI signal from up to 250' (76m) from the source using HDBaseT technology when paird with the HDX-LX-TX Transmitter. It is capable of receiving uncompressed HD video up to 1080p (60 Hz @ 48-bit, and 3D) at up to 3.4 Gb/s. It also supports receiving of Dolby TrueHD and DTS-HD MA audio signals. The receiver is HDMI 1.3 / HDCP compliant, and supports bi-directional IR extension that simplifies controlling the video source. It is suitable for applications such as home theater, corporate / educational presentations, call centers, isolated industrial workstations, information terminals / kiosk, airport installations (air traffic control / passenger information), and educational environments that require remote displays.
Features -
- Receives HDMI inputs over a single CAT5 UTP cable when paired with HDX-LX-TX (available separately)
- Receives uncompressed HD video up to1080p (60 Hz @ 48-bit and 3D)
- Receives 1080p video signal from up to 250’ (76m) from the source
- Data signals up to 3.4 Gb/s
- Uses HDBaseT technology
- Receives high-quality Dolby TrueHD, DTS-HD MA audio signals
- Supports IR control signals for remote control
- HDMI 1.3 and HDCP compliance
- Supports bi-directional IR communication
- Designed and manufactured in USA
Applications -
- Home theater
- Corporate or educational presentations
- Call centers
- Industrial (long-range workstation isolation)
- Information terminals / kiosks
- Airport installations (ATC or passenger information)
- Educational environments with remote displays
UPC: 813280021807 In the Box Bundle Items HDX-LX-TX HDMI and IR Transmitter beuwazdfvcxcaefyftysczfbwd - PS5VD2A 5V 2A Power Supply
HDX-LX-RX HDMI and IR Receiver beuwazdfvcxcaefyftysczfbwd - PS5VD2A 5V 2A Power Supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-LX HDMI and IR Extender over CAT5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDX-LX-TX HDMI and IR Transmitter
| | | Resolution | 800 x 600, 1024 x 768 , 1280 x 1024, 1366 x 768, 1920 x 1200, 480i, 720p, 1080i, 1080p, and 3D | | Color Depth | Deep color 36/30/24-bit at 1080p and 3D | | Audio Format | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | IR Range | 38 kHz, 56 kHz | | Video Bandwidth | 10.2 Gb/s | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 V (TTL) | | | | Input Interface | 1 x HDMI-A (19-pin socket)
1 x 2.5 mm DC jack
1 x 3.5 mm jack for IR receiver | | Output Interface | 1x RJ45 jack
1x 3.5 mm jack for IR emitter | | Range | 250' (76 m) | | | | Certificates | FCC, CE, RoHS | | Power Adapter | UL, CE, FCC, RoHS | | Power | External: 5 VDC, 2 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 10 to 85% (non-condensing) | | Dimensions (H x W x D) | 0.9 x 2.9 x 3.7" (2.3 x 7.4 x 9.4 cm) | | Weight | 4.2 oz (120.0 g) | - HDX-LX-RX HDMI and IR Receiver
| | | Resolution | 800 x 600, 1024 x 768 , 1280 x 1024, 1366 x 768, 1920 x 1200, 480i, 720p, 1080i, 1080p, and 3D | | Color Depth | Deep color 36/30/24-bit at 1080p and 3D | | Audio Format | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | IR Range | 38 kHz, 56 kHz | | Video Bandwidth | 10.2 Gb/s | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 V (TTL) | | | | Input Interface | 1 x RJ45 jack
1 x 3.5 mm jack for IR receiver
1 x 2.5 mm DC jack | | Output Interface | 1 x 3.5 mm jack for IR emitter
1 x HDMI-A (19-pin socket) | | Range | 250' (76 m) | | | | Certificates | FCC, CE, RoHS | | Power Adapter | UL, CE, FCC, RoHS | | Power | External: 5 VDC, 2 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 10 to 85% (non-condensing) | | Dimensions (H x W x D) | 0.9 x 2.9 x 3.7" (2.3 x 7.4 x 9.4 cm) | | Weight | 4.2 oz (120.0 g) | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 7.0" |
