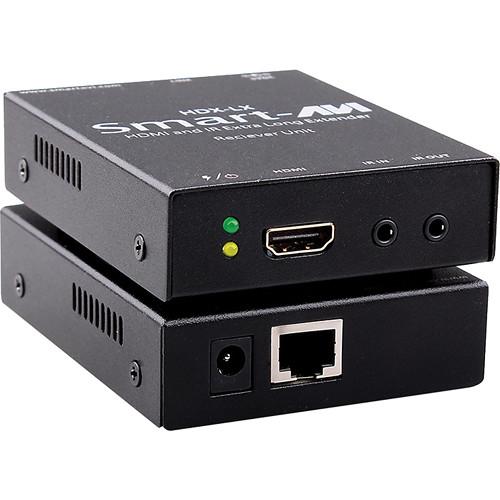

Product description The HDX-LX-RX HDMI and IR Receiver from Smart-AVI uses a single CAT5 UTP cable to receive HDMI signal from up to 250' (76m) from the source using HDBaseT technology when paird with the HDX-LX-TX Transmitter. It is capable of receiving uncompressed HD video up to 1080p (60 Hz @ 48-bit, and 3D) at up to 3.4 Gb/s. It also supports receiving of Dolby TrueHD and DTS-HD MA audio signals. The receiver is HDMI 1.3 / HDCP compliant, and supports bi-directional IR extension that simplifies controlling the video source. It is suitable for applications such as home theater, corporate / educational presentations, call centers, isolated industrial workstations, information terminals / kiosk, airport installations (air traffic control / passenger information), and educational environments that require remote displays. Features -
- Receives HDMI inputs over a single CAT5 UTP cable when paired with HDX-LX-TX (available separately)
- Receives uncompressed HD video up to1080p (60 Hz @ 48-bit and 3D)
- Receives 1080p video signal from up to 250’ (76m) from the source
- Data signals up to 3.4 Gb/s
- Uses HDBaseT technology
- Receives high-quality Dolby TrueHD, DTS-HD MA audio signals
- Supports IR control signals for remote control
- HDMI 1.3 and HDCP compliance
- Supports bi-directional IR communication
- Designed and manufactured in USA
Applications -
- Home theater
- Corporate or educational presentations
- Call centers
- Industrial (long-range workstation isolation)
- Information terminals / kiosks
- Airport installations (ATC or passenger information)
- Educational environments with remote displays
UPC: 813280021807 In the Box Smart-AVI HDX-LX-RX HDMI and IR Receiver PS5VD2A 5V 2A Power Supply dzruqacwswbtyvvsfcutrqda Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-LX-RX HDMI and IR Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDX-LX-RX Specs | | | Resolution | 800 x 600, 1024 x 768 , 1280 x 1024, 1366 x 768, 1920 x 1200, 480i, 720p, 1080i, 1080p, and 3D | | Color Depth | Deep color 36/30/24-bit at 1080p and 3D | | Audio Format | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | IR Range | 38 kHz, 56 kHz | | Video Bandwidth | 10.2 Gb/s | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 V (TTL) | | | | Input Interface | 1 x RJ45 jack
1 x 3.5 mm jack for IR receiver
1 x 2.5 mm DC jack | | Output Interface | 1 x 3.5 mm jack for IR emitter
1 x HDMI-A (19-pin socket) | | Range | 250' (76 m) | | | | Certificates | FCC, CE, RoHS | | Power Adapter | UL, CE, FCC, RoHS | | Power | External: 5 VDC, 2 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 10 to 85% (non-condensing) | | Dimensions (H x W x D) | 0.9 x 2.9 x 3.7" (2.3 x 7.4 x 9.4 cm) | | Weight | 4.2 oz (120.0 g) | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 7.0" |
