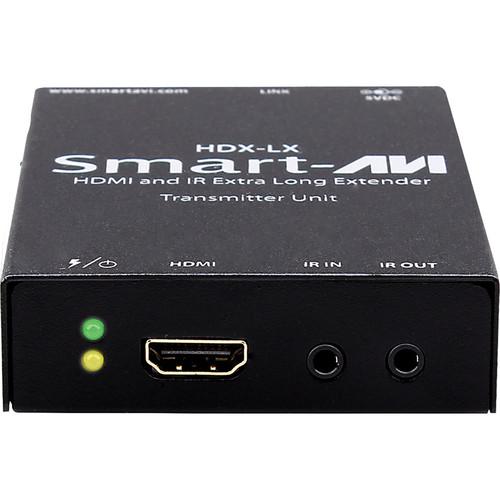

Product description The HDX-LX-TX HDMI and IR Transmitter from Smart-AVI uses a single CAT5 UTP cable to extend HDMI output to up to 250' (76m) from the source using HDBaseT technology when paird with the HDX-LX-RX Receiver. It is capable of transmitting uncompressed HD video up to 1080p (60 Hz @ 48-bit, and 3D) at up to 3.4 Gb/s. It also supports transmitting Dolby TrueHD and DTS-HD MA audio signals. The transmitter is HDMI 1.3 / HDCP compliant, and supports bi-directional IR extension that simplifies controlling the video source. It is suitable for applications such as home theater, corporate / educational presentations, call centers, isolated industrial workstations, information terminals / kiosk, airport installations (air traffic control / passenger information), and educational environments that require remote displays. Features -
- Extends HDMI output over a single CAT5 UTP cable when paired with HDX-LX-RX (available separately)
- Transmits uncompressed HD video up to1080p (60 Hz @ 48-bit and 3D)
- Transmits 1080p video signal to up to 250’ (76m) from the source
- Data signals up to 3.4 Gb/s
- Uses HDBaseT technology
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Extends IR control signals for remote control
- HDMI 1.3 and HDCP compliance
- Supports bi-directional IR communication
- Designed and manufactured in USA
Applications -
- Home theater
- Corporate or educational presentations
- Call centers
- Industrial (long-range workstation isolation)
- Information terminals / kiosks
- Airport installations (ATC or passenger information)
- Educational environments with remote displays
UPC: 813280021814 In the Box Smart-AVI HDX-LX-TX HDMI and IR Transmitter PS5VD2A 5V 2A Power Supply beuwazdfvcxcaefyftysczfbwd Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-LX-TX HDMI and IR Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDX-LX-TX Specs | | | Resolution | 800 x 600, 1024 x 768 , 1280 x 1024, 1366 x 768, 1920 x 1200, 480i, 720p, 1080i, 1080p, and 3D | | Color Depth | Deep color 36/30/24-bit at 1080p and 3D | | Audio Format | Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio | | IR Range | 38 kHz, 56 kHz | | Video Bandwidth | 10.2 Gb/s | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 V (TTL) | | | | Input Interface | 1 x HDMI-A (19-pin socket)
1 x 2.5 mm DC jack
1 x 3.5 mm jack for IR receiver | | Output Interface | 1x RJ45 jack
1x 3.5 mm jack for IR emitter | | Range | 250' (76 m) | | | | Certificates | FCC, CE, RoHS | | Power Adapter | UL, CE, FCC, RoHS | | Power | External: 5 VDC, 2 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 10 to 85% (non-condensing) | | Dimensions (H x W x D) | 0.9 x 2.9 x 3.7" (2.3 x 7.4 x 9.4 cm) | | Weight | 4.2 oz (120.0 g) |
