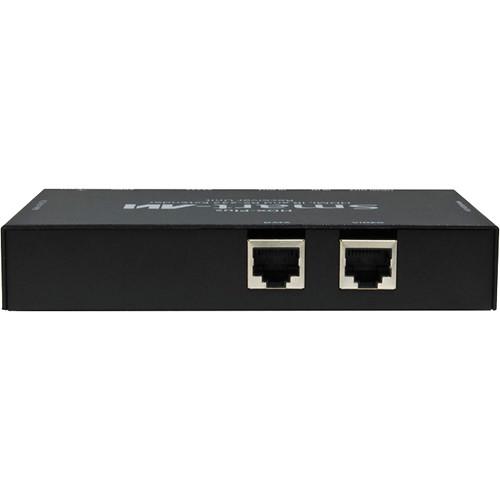

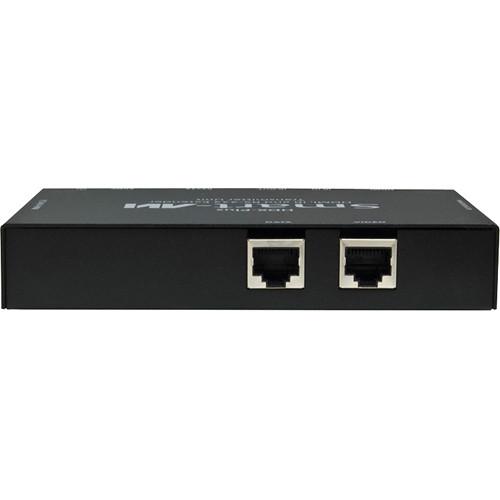

Product description The HDX-Plus HDMI, IR and RS-232 Extender from Smart-AVI uses two CAT5 UTP cables to extend HDMI signals, including high-definition TV, over 200' (60m) from the source. With HDX-Plus' bi-directional IR and RS-232 extensions, you can control a video source easily. - Extender
-
- Extends HDMI output over two CAT5/5e/6 UTP cables
- Extends IR and RS-232 control signals for remote controlling
- Delivers uncompressed HD video up to
- 1080p @ 60Hz@ 48-bits and 3D
- Data signals up to 3.4 Gb/s
- HDMI 1.3 and HDCP compliance
- IR and RS-232 communication are bi-directional
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Transmits 1080p resolution over 200' (60m) from the source
- Applications
-
- Home Theater
- Corporate/Educational Presentations
- Call Centers
- Industrial (Long-Range Workstation Isolation)
- Information Terminals/Kiosks
- Airport Installations (Air Traffic Control/Passenger Information)
- Educational Environments with remote displays

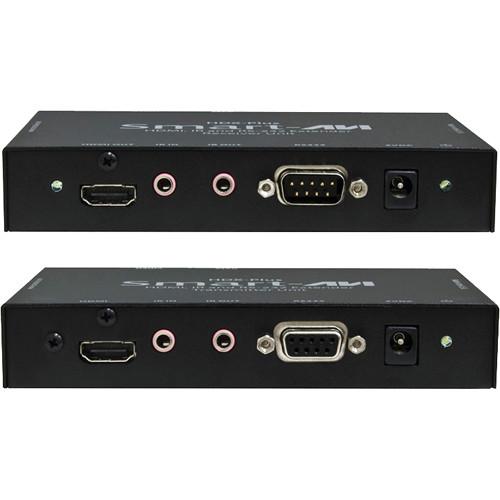

In the Box Smart-AVI HDX-Plus HDMI, IR and RS-232 Extender (200') HDX-Plus-TX Transmitter HDX-Plus-RX Receiver 2 x PS5VD2A 5V 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-Plus HDMI, IR and RS-232 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDX-PLUS Specs | | | Format | HDMI 1.3 and HDCP compliant | | Resolutions | HDTV: 480p, 720p, 1080i, 1080p (60 Hz @ 48-bit)
TV: 480i | | | | Range | 200' (60 m) | | Input Interface | HDMI Type A TMDS (19-pin female) | | Input Cable Length | Up to 40' (12 m) | | | | Range | 200' (60 m) | | Output Interface | HDMI Type A TMDS (19-pin female) | | Output Cable Length | Up to 40' (12 m) | | | | Format | Dolby TrueHD, DTS-HD MA | | Input Interface | Integrated HDMI | | Output Interface | Integrated HDMI | | | | Interface | RJ-45 | | Cable Requirements | CAT5/5e/6 | | Length | 200' (60 m) (maximum) | | | | Baud Rate | Up to 19, 200 bps | | Input Interface (TX) | Serial DB-9 (female) | | Output Interface (RX) | Serial DB-9 (male) | | | | IR Signal | 38 kHz | | Interface | IR: 3.5 mm jack slot (female) | | | | Approvals | UL, CE, RoHS compliant | | Power | External: 100 to 240 VAC, 5 VDC, 2A @ 10 W | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | 5.00 x 1.13 x 4.13" (12.70 x 2.87 x 10.46 cm) | | Weight | 9.6 lb (272.2 g) |
