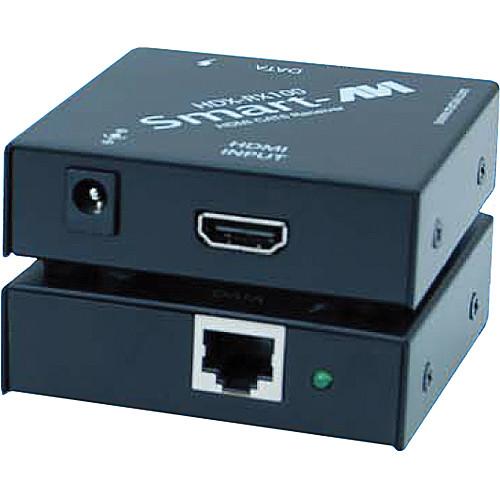

User Manual for Smart-AVI HDX-RX100 HDMI Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI HDX-RX100 HDMI Receiver
- Product category: Video Extenders & Repeaters Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Video Extenders & Repeaters
|
User manual for the Smart-AVI HDX-RX100 HDMI Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart AVi HDX-RX100 HDMI Receiver accepts signals from the HDMI HDX-TX100S transmitter and allows the transfer of HDMI signals to a local display and a display monitor that is up to 150' away via CAT6 STP cabling. It offers HD images (1080p) up to a resolution of 1920 x 1200. The receiver comes with a power supply (PS5VDC1A) and is ideal for use in retail locations, bars, lounges and showroom floors. Installing the CPU in a remote, secure location such as a computer room or back office of a business allows you to broadcast HD media to customers at a bandwidth of 1.65 GBps while being able to view the displayed content on a local display. The HDX-RX100 HDMI Receiver learns the DDC (Display Data Channel) of the display device and adapts to the different display settings of the device such as brightness and contrast ratio. With a plug-n-play setup, this compact (6.37 x 5.18 x .87") receiver can be easily connected to any digital display network. - Accepts signals from the HDMI HDX-TX100 transmitter
- Allows transfer of HDMI signals to a local display and a display monitor that is up to 150' away via CAT6 STP cabling
- Offers HD images (1080p) up to a resolution of 1920 x 1200
- Includes a power supply (PS5VDC1A)
- Ideal for use in retail locations, bars, lounges, and showroom floors
- Installing the CPU in a remote, secure location such as computer room or back office of a business allows you to broadcast HD media to customers at a bandwidth of 1.65 GBps
- Allows the displayed content to be viewed on a local display by authorized viewers
- Learns the DDC of display device and adapts to different display settings such as brightness and contrast ratio
- Offers a plug-and-play setup and can be easily connected to any digital display network
- Compact - 6.37 x 5.18 x 0.87"
UPC: 813280015806 In the Box Smart-AVI HDX-RX100 HDMI Receiver Power Supply (PS5VDC1A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-RX100 HDMI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDX-RX100S Specs | Supported Resolution | 1920 x 1200 (at 60Hz)
480p
720i
720p
1080i
1080p | | Maximum Resolution | 1920 x 1200 at 60Hz
1280 x 1024 at 75Hz | | Bandwidth | Up to 1.65Gps | | Maximum Distance | 150' (46m) using CAT6 STP cabling | | Video Interface | HDMI | | Power Supply | Universal Switch Mode
PSU (90-240 Input) 5VDC | | Dimensions (WxHxL) | 6.4 x 0.9 x 5.2" (163 x 23 x 132mm) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 4.0" |
