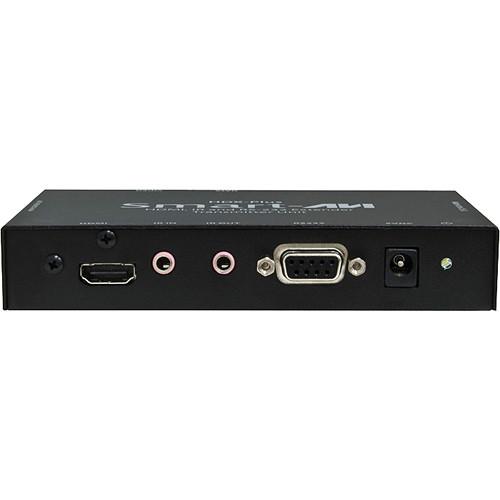

Product description The Smart-AVI HDX-TXPLUSS HDMI, IR, RS-232 Point to Point CAT5 Extender Transmitter uses 2 CAT5 UTP cables to extend HDMI signals such as HDTV output over 200’ (60 m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling your video source is easy with this extender transmitter. Whether it’s for a home entertainment system or a commercial installation, this extender transmitter delivers flexibility and control. - Transmits HDMI output over 2 CAT5/5e/6 UTP cables
- Transmits IR and RS-232 control signals for remote control
- Supports data signals up to 3.4 Gbps
- HDMI 1.3 and HDCP compliance
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Transmits 1080p resolution over 200' (60 m) from the source
- Possible applications include home theater, corporate or educational presentations, call centers, industrial (long-range workstation isolation), information terminals/kiosks, airport installations (air traffic control/passenger information), and educational environments with remote displays
In the Box Smart-AVI HDX-TXPLUSS HDMI, IR, RS-232 Point to Point CAT5 Extender Transmitter PS5VD2A 5V 2A Power Supply SM-EYE-3 (Infrared Receiver) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI HDX-TXPLUSS HDMI, IR, RS-232 Point to Point CAT5 Extender Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDX-TXPLUSS Specs | Format | HDMI 1.3 and HDCP compliant (video) | | Resolutions | HDTV Resolutions: 480p, 720p, 1080i, 1080p / 60 Hz / 48 bit
TV Resolution: 480i (video) | | Video Interface | HDMI type A 19-pin female TMDS | | Cable Length | Input Video Cable Length: Up to 40' (12.19 m) | | Audio | Format: Dolby TrueHD, DTS-HD MA
Input / Output Interface: HDMI (integrated) | | IR | IR Signal Type: 38 kHz
IR Interface: 3.5 mm jack socket (female) | | RS-232 Baud Rate | Up to 19,200 bps | | RS-232 | Input Interface: DB-9 (serial) female | | | | Interface | RJ-45 | | Cable Requirements | CAT5/5e/6 | | Maximum Length | 200' (60 m) | | | | Power | External 100 to 240 VAC / 5 VDC 2 A @ 10 W | | Approvals | UL, CE, ROHS Compliant | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Dimensions (W x H x D) | Transmitter: 5 x 1.3 x 4.13" (127 x 33.02 x 104.9 mm) | | Weight | Transmitter: 0.6 lb (0.27 kg) |
